Technical Specifications
Product Overview
High-Efficiency Grid-Tied Solution

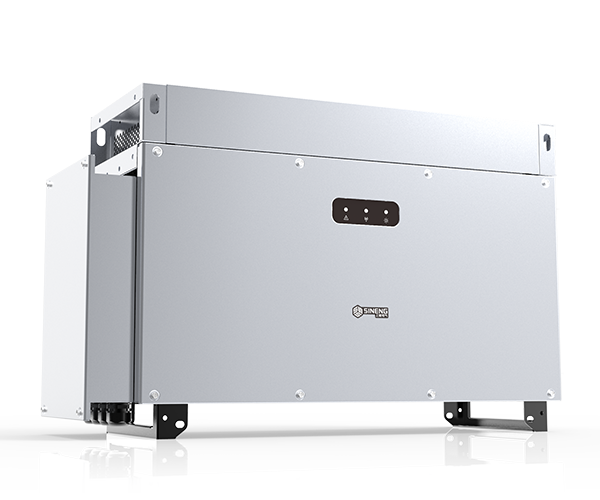

This 110kW grid-tied solar inverter is engineered for large-scale photovoltaic power plants, offering advanced performance and reliability. Featuring 10 MPPT trackers, it supports high-density bifacial modules with a maximum branch current of 13A. The unit utilizes three-level soft-switching technology to achieve an ultra-wide voltage range and impressive energy conversion efficiency.
Performance Metrics
Featured Performance
98.7 %
Maximum Efficiency
1.3 ratio
Max Overload Ratio
110 kW
Rated Output Power
Input DC Specifications
DC Input Data
| Parameter | Value |
|---|---|
| Max. PV Input Voltage | 1100V |
| Max. Input Current | 26A*10 |
| Number of MPPT Trackers | 10 |
| MPP Voltage Range | 200~1000V |
Output AC Specifications
AC Output Data
| Parameter | Value |
|---|---|
| Rated Grid Voltage | 380V/400V |
| Max. Output Current | 167A@380V, 158.8A@400V |
| Total Harmonic Distortion | <3% |
| Power Factor Range | 0.8 leading to 0.8 lagging |
Safety and Protection
- Protection Features
- DC Reverse Connection ProtectionDC/AC Type II Overvoltage ProtectionLeakage Current ProtectionGrid MonitoringInsulation MonitoringAnti-island Protection
Technical Features
Key Technology
- 10 MPPT tracker configuration
- Wireless communication support
- Suitable for bifacial modules
- Three-level soft-switching technology
- Integrated DC switch
