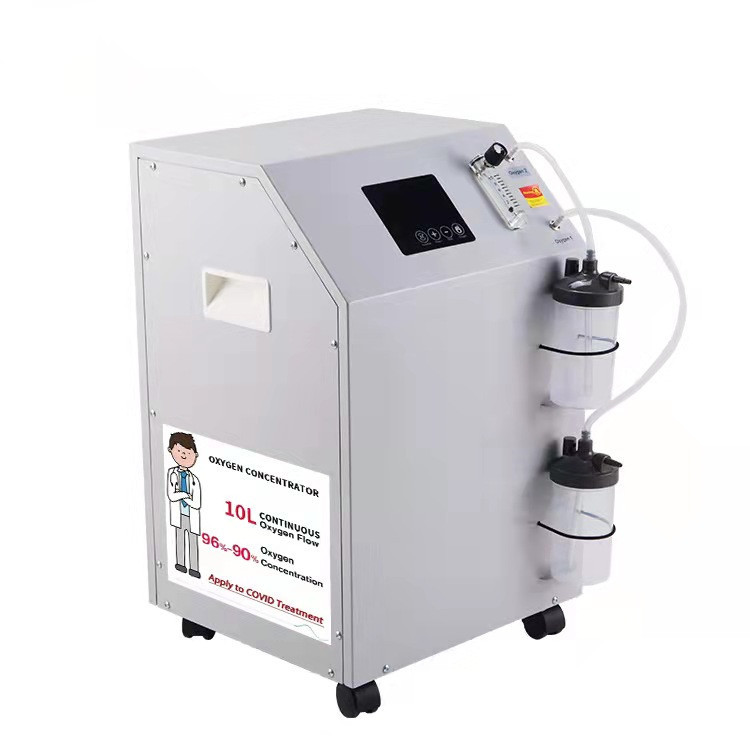

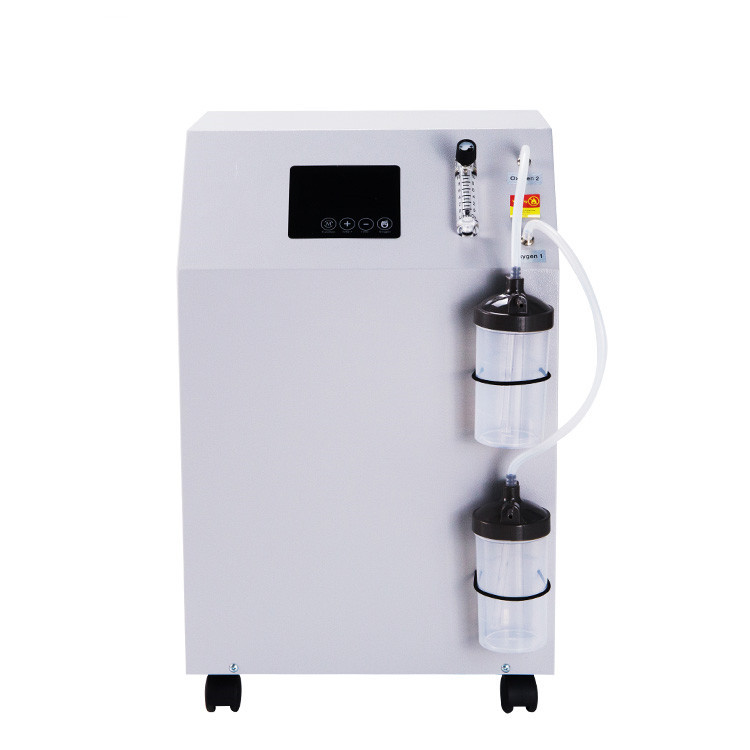

10L Medical Oxygen Concentrator with Dual Outlets
This 10L oxygen concentrator delivers stable oxygen output. It features dual oxygen outlets for simultaneous use and is designed with a timer for automatic shutdown.
Technical Specifications
Overview
Professional Medical Oxygen Solutions

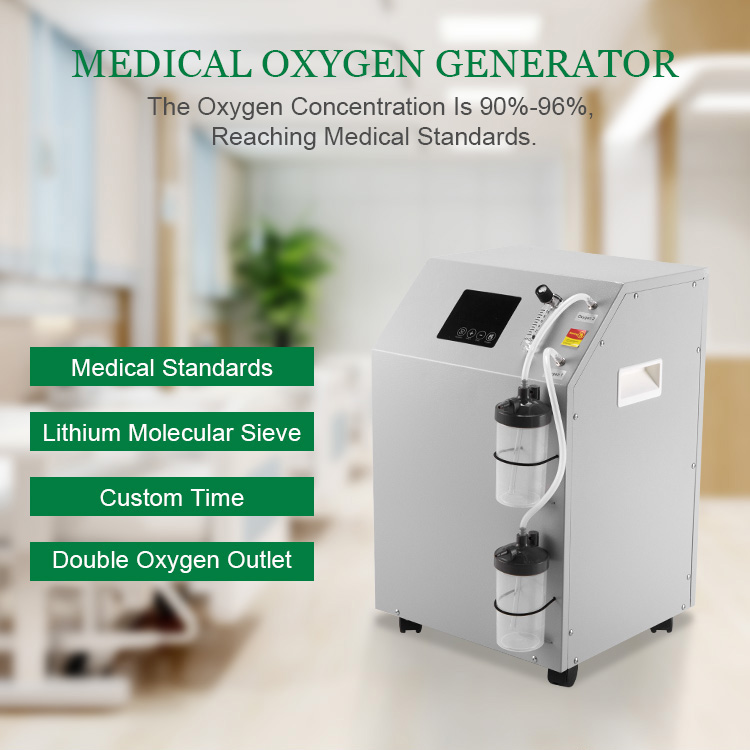

This 10L medical-grade oxygen concentrator is designed for reliable home care and clinical support. Featuring a high-efficiency lithium molecular sieve and an oil-free compressor, it delivers stable, high-purity oxygen. The dual-outlet design allows for simultaneous use by two individuals, making it an versatile solution for respiratory therapy in both home and medical settings.
Performance
Concentration by Flow Rate
| Flow Rate | Concentration |
|---|---|
| 1L | 96.2% |
| 2L | 96.0% |
| 3L | 95.8% |
| 4L | 95.5% |
| 5L | 94.8% |
| 6L | 94.3% |
| 7L | 94.0% |
| 8L | 93.7% |
| 9L | 93.4% |
| 10L | 93.2% |
- Flow Rate Range
- 10 L/min
- Oxygen Concentration
- 93% ± 3%
- Output Pressure
- 0.03~0.07 MPa
Technical Specifications
- Rated Power
- 700 W
- Sound Level
- ≤58 dB(A)
- Net/Gross Weight
- 31/33 Kg
Features
Key Features

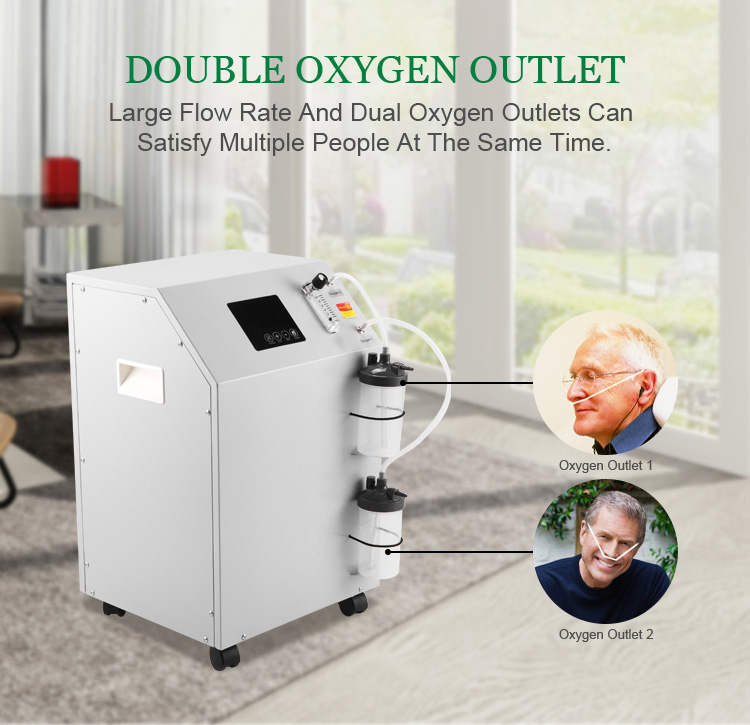

- Dual oxygen outlets for simultaneous use

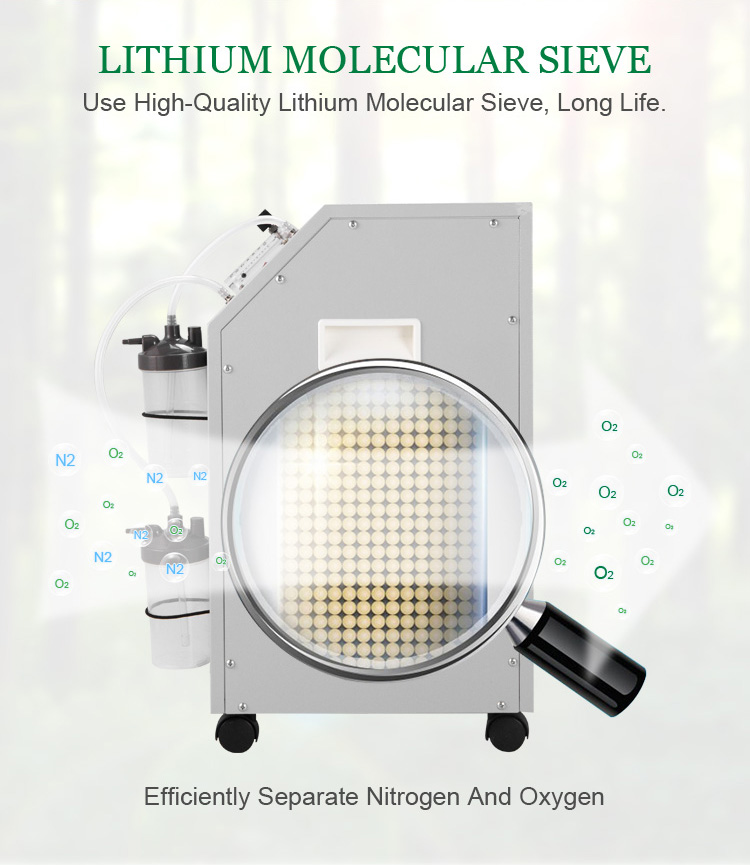

- High-quality lithium molecular sieve

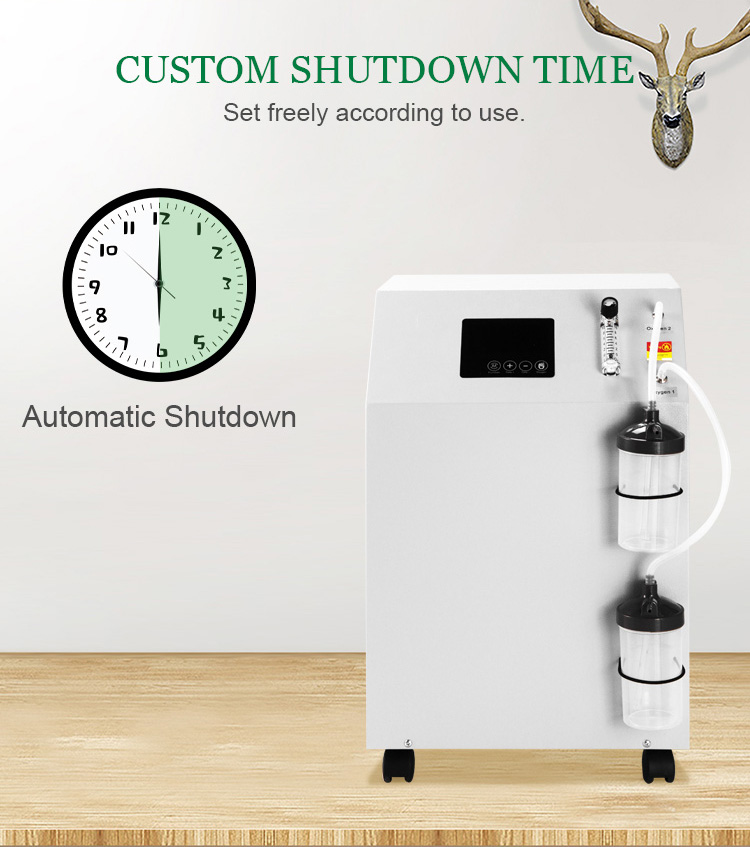

- Programmable timer with automatic shutdown
- Oil-free compressor
- Integrated humidification system

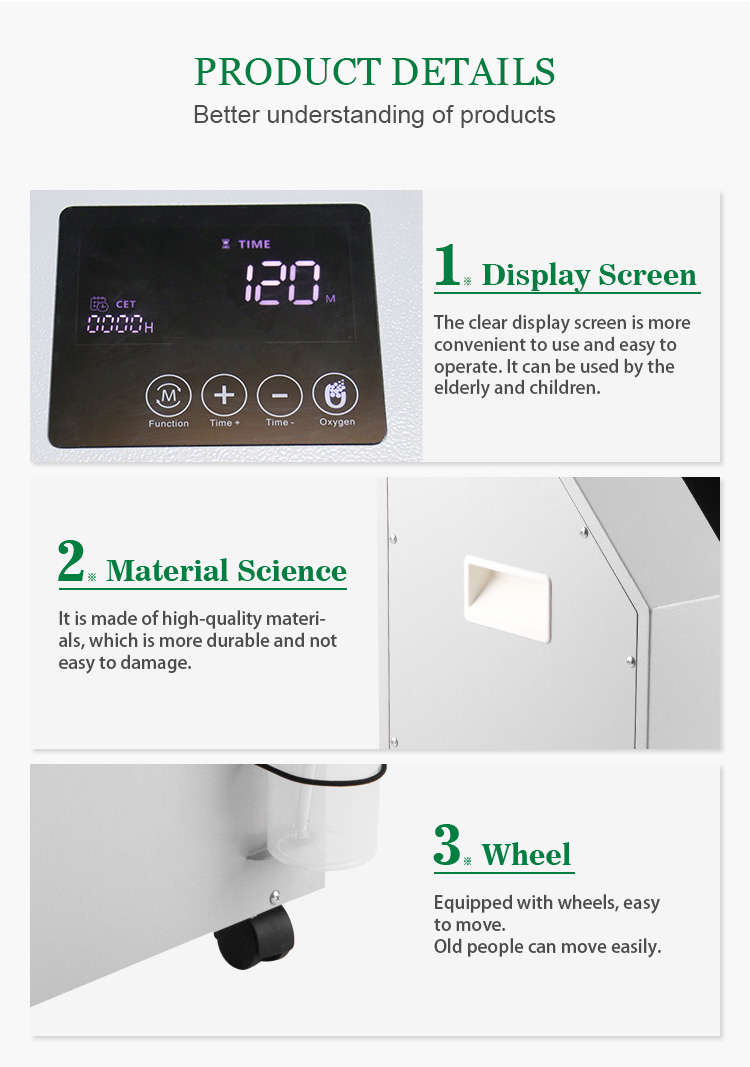

- Mobile design with wheels
- Certifications
- CE CertifiedMedical Standard
