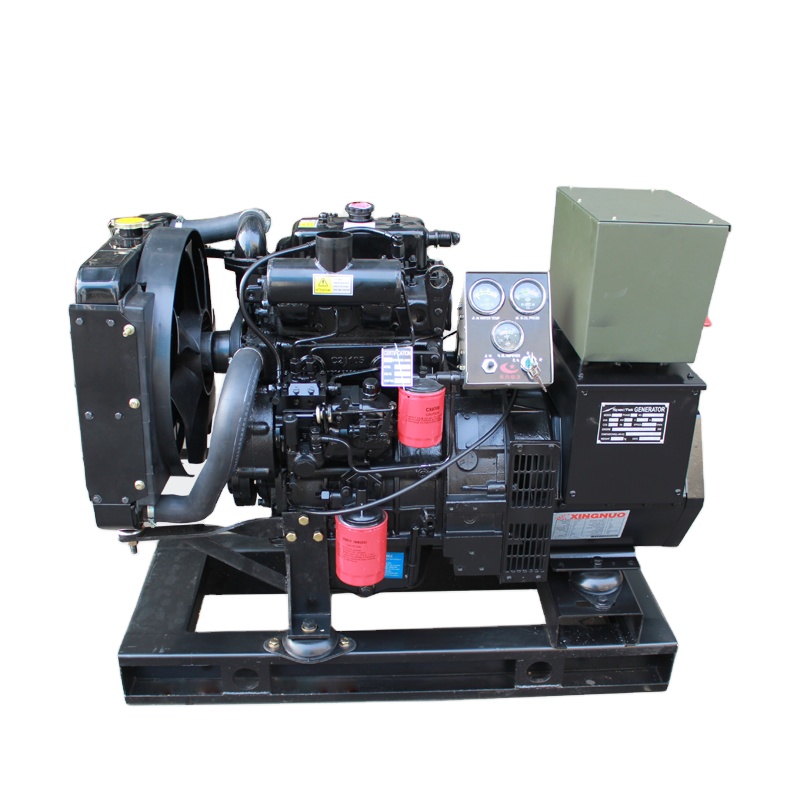

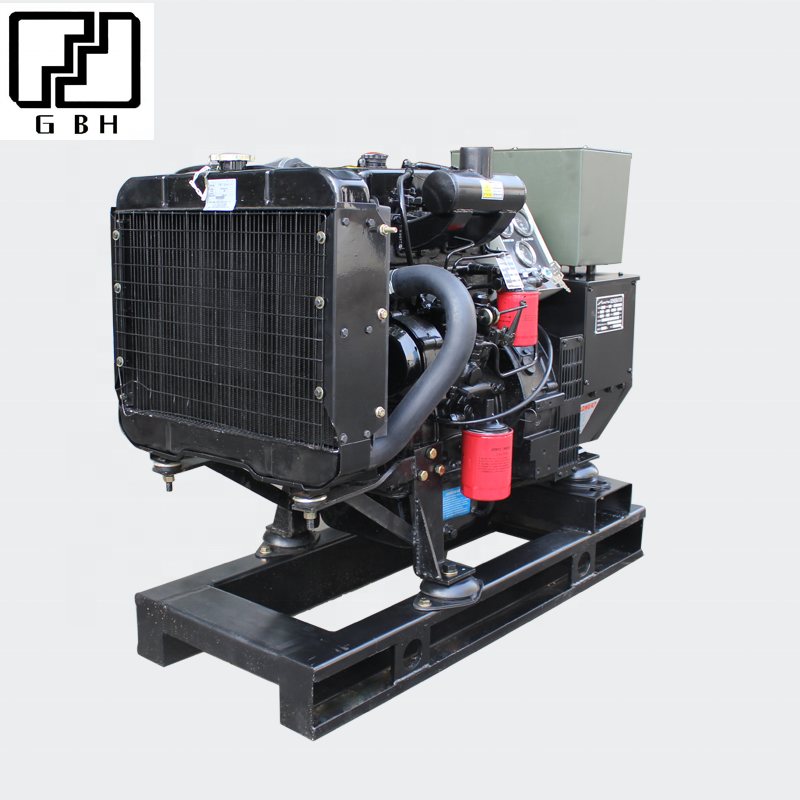

10kW Open Type Diesel Generator for Home Use
This 10kW open type diesel generator is designed for home use. It features a durable diesel engine and a brushless alternator.
Technical Specifications
Product Overview
Reliable 10kW Diesel Power Solution
This 10kW open-type diesel generator is engineered for dependable home backup and light industrial use. Featuring a robust brushless alternator and a high-performance engine, it ensures stable power delivery during outages or in off-grid locations. The unit is built on a heavy-duty steel base frame with integrated vibration dampers to ensure durability and smooth operation.
Key Performance Metrics
Key Performance
10 kW
Rated Power
27.5 kVA
Standby Power
8 hours
Runtime @ Avg Load
Engine Specifications
Engine Details
| Feature | Specification |
|---|---|
| Engine Model | ZH4100D |
| Max Output | 33 kW |
| Rated Speed | 1500 r/min |
| Starting Method | 12V Electric Start |
| Cooling | 40℃ Radiator (Open Type) |
| Filtration | Air, Oil, and Fuel filters included |
Alternator & Electrical
Alternator & Electrical
- Brushless alternator type
- Single bearing design
- IP21/22 Protection rating
- Class H Insulation
- 400V Rated voltage
- 36A Rated current
Physical Construction
- Dimensions
- 1800 x 840 x 1250 mm
- Frame Type
- Heavy duty steel base frame
- Vibration Control
- Vibration dampers between engine/alternator and frame
Standard Components
- Included Accessories
- Industrial SilencerFlexible Bellow24V ChargerStorage BatteriesStandard Tool KitsOperation Manuals
Optional Upgrades
Available Options
- Automatic Transfer Switch (ATS)
- ABB or Schneider Breakers
- Water and Lub-oil Heaters
- 50℃-55℃ High-ambient Radiator
- Fuel and Low Coolant Level Sensors
- External Daily Fuel Tank
- Water-Fuel Separator
- Controller options: Deepsea, DEIF, ComAP, Woodward
Compliance & Quality
Certifications
CE CertifiedISO 9001:2015GB/T19001-2016Machinery Directive 2006/42/EC
Applications
- Target Applications
- Residential BackupTelecommunicationsConstruction SitesHospitalsBanking FacilitiesOff-grid Power
