Product Overview

Reliable 10kW Diesel Engine for Power Generation

The QC380D is a robust, vertical in-line diesel engine specifically engineered for generator set applications. Featuring a four-stroke, water-cooled design with direct injection, it delivers dependable performance and high thermal efficiency. This naturally aspirated engine is built for durability, making it an ideal choice for industrial and commercial power needs requiring a steady 10kW to 12kW output.

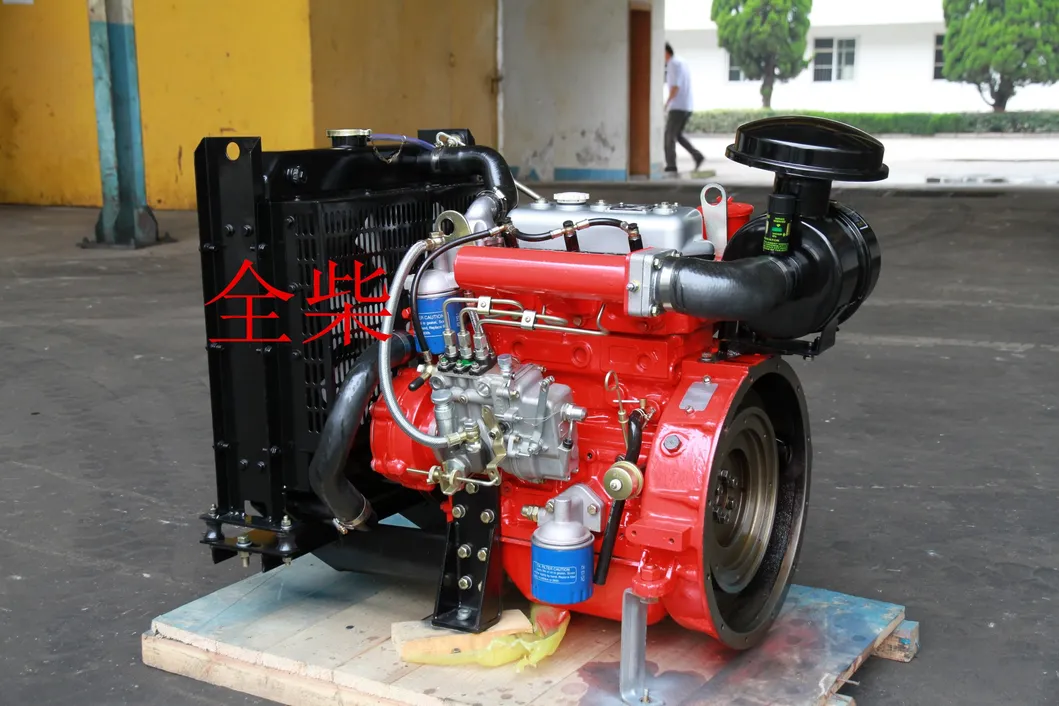

Red 10kW Diesel Engine with Radiator — Complete diesel engine assembly featuring integrated radiator and air filtration system.

Performance Metrics

Rated Performance

10 kW

Rated Output (1500rpm)

12 kW

Rated Output (1800rpm)

1,500 r/min

Standard Speed

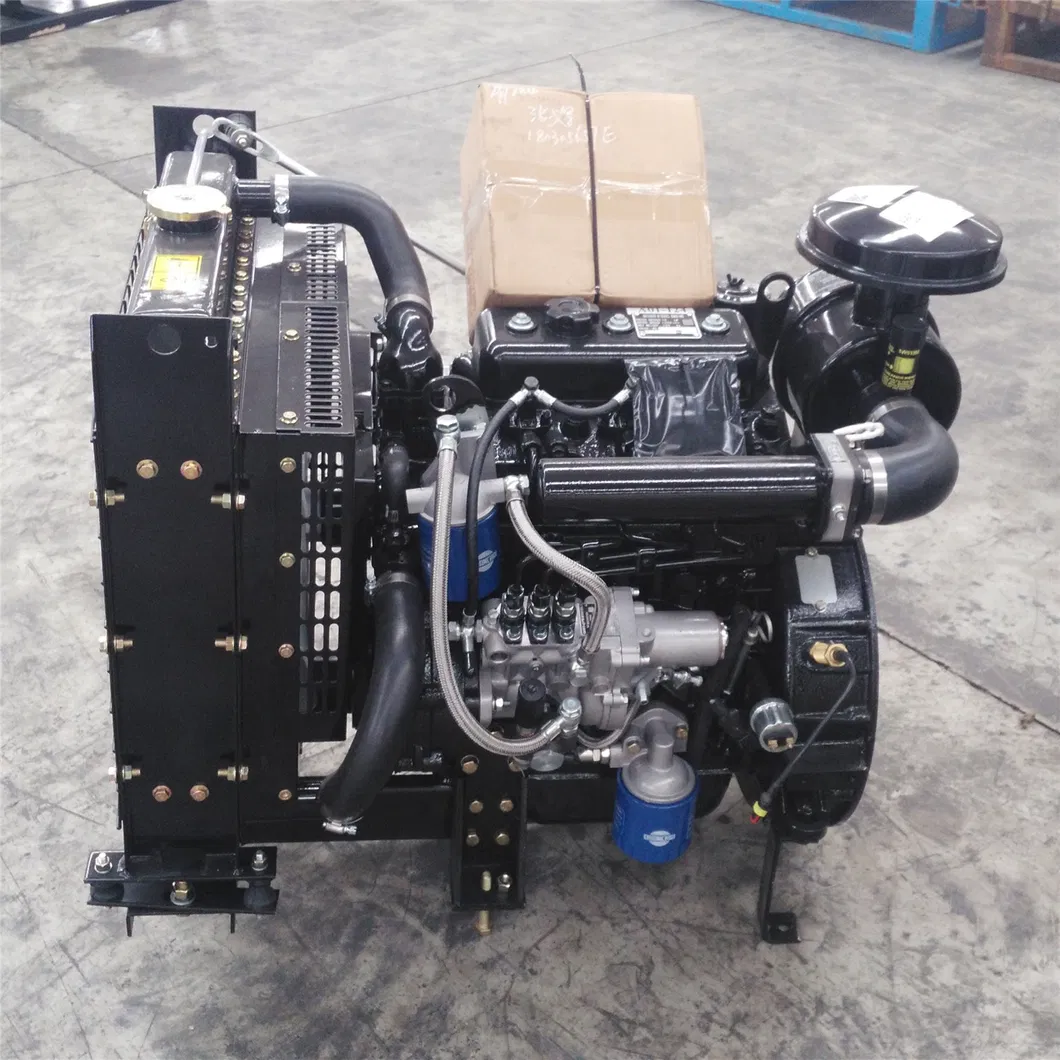

Diesel Engine for Generator Set — Heavy-duty construction optimized for stationary power generation applications.

Engine Configuration

Engine Characteristics: Four-strokeWater-cooledVerticalIn-lineNaturally AspiratedDirect Injection

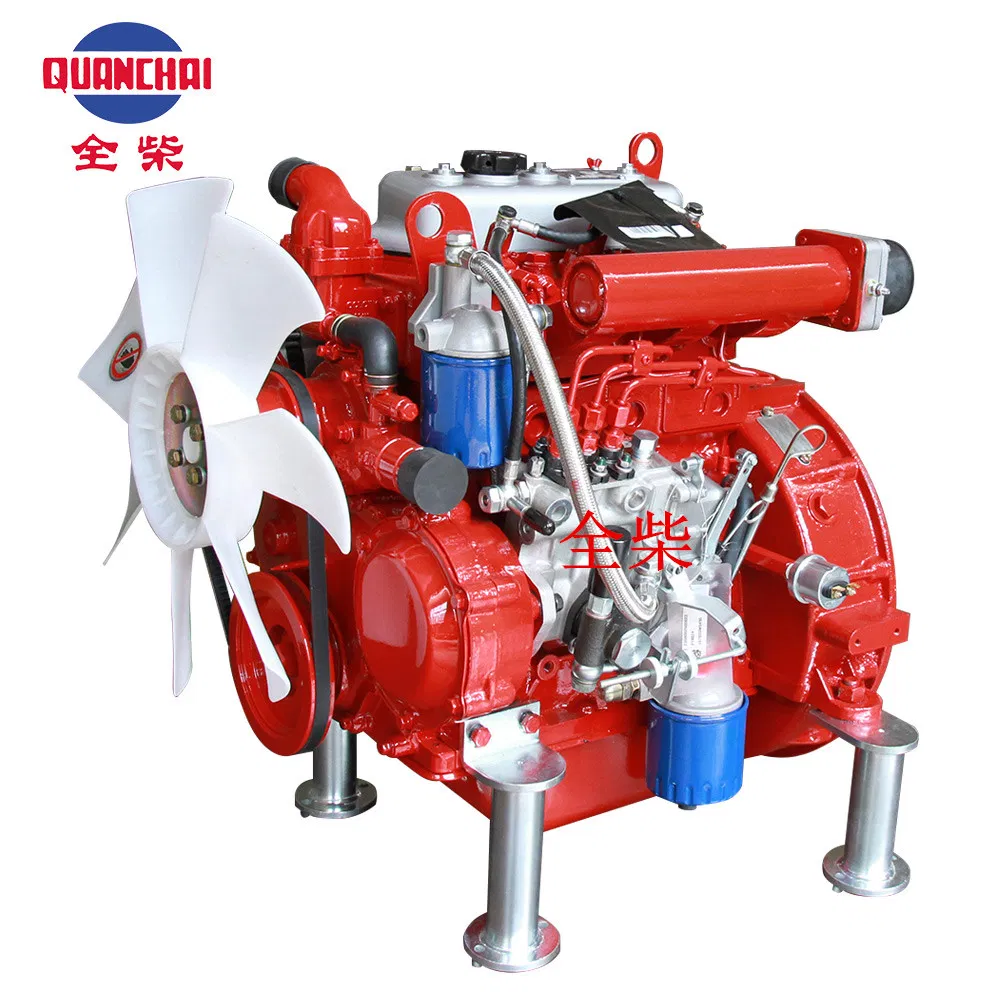

Vertical In-line Diesel Engine Side View — Compact 3-cylinder design with direct injection fuel system and belt-driven cooling fan.

Technical Specifications

Detailed Technical Data

Parameter	Value
Cylinder Number	3
Bore & Stroke	80mm x 90mm
Displacement	1.357 L
Cylinder Liner Type	Wet
Chamber Type	Direct Injection
Fuel Consumption Rate	≤ 255 g/kw.h
Smooth Speed Rate	≤ 5%

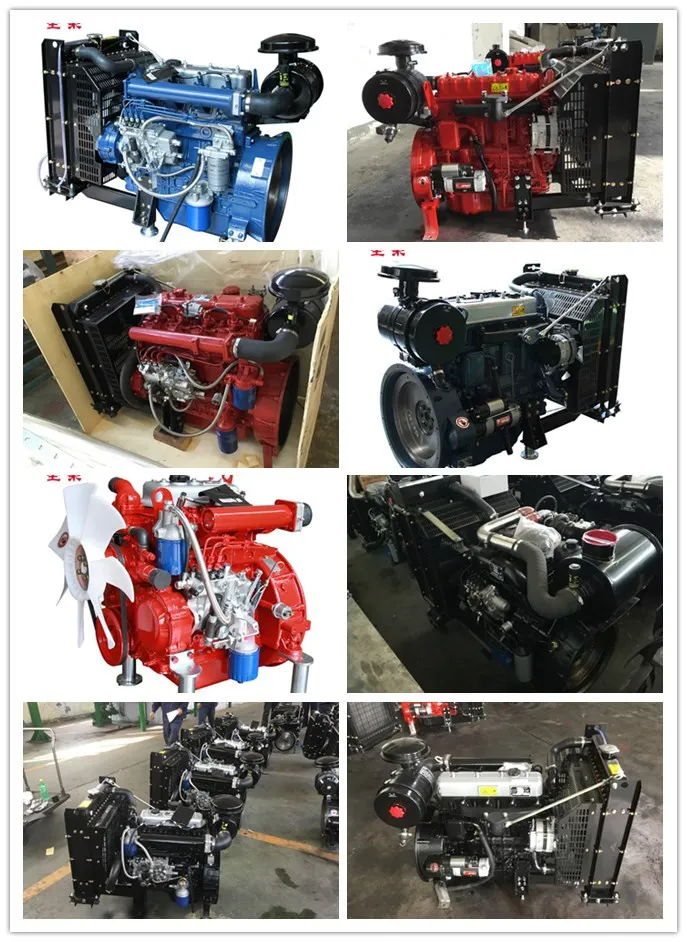

Diesel Engine Variations — Available in multiple configurations to suit specific industrial requirements.

Mechanical Interface

Interface & Mounting

Flywheel Ring Gear: 115 Teeth
Flywheel Cover Type: SAE 4#
Flywheel Type: SAE 7.5#
Fan Diameter: 410 mm

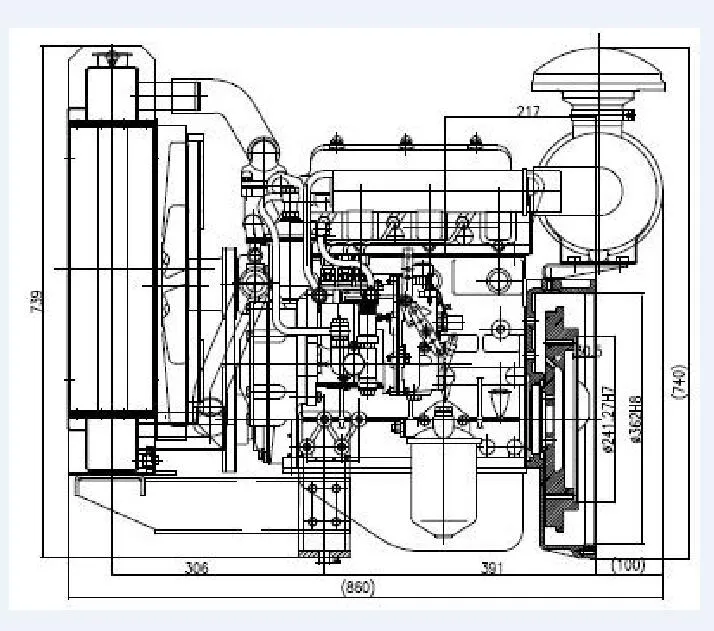

Technical Dimensional Drawing — Engineering schematic showing mounting dimensions and overall engine footprint.

Performance Curves

Engine Efficiency

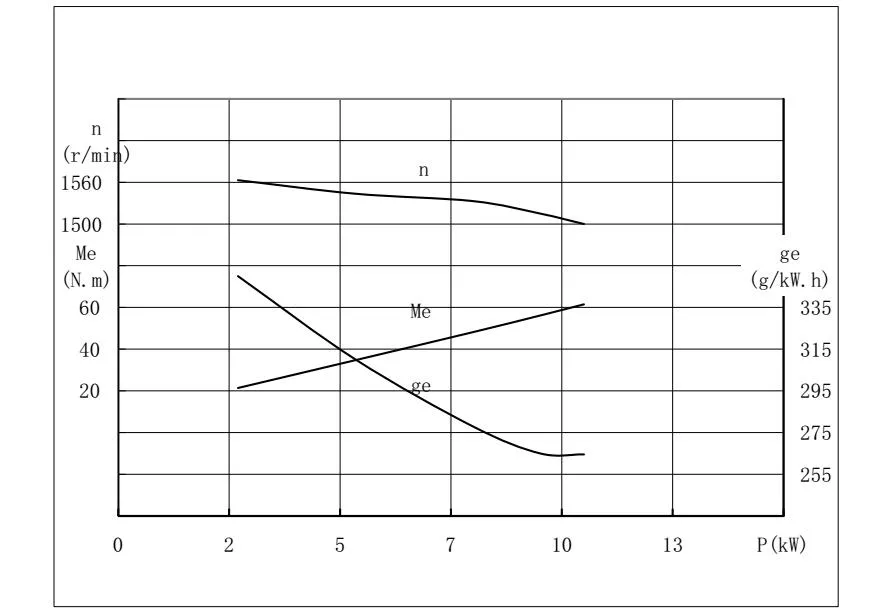

The engine maintains a fuel consumption rate of 255 g/kW.h or less, optimized for continuous operation. Performance curves indicate stable torque (Me) and specific fuel consumption (ge) across the standard operating range of 1500 to 1800 r/min.
