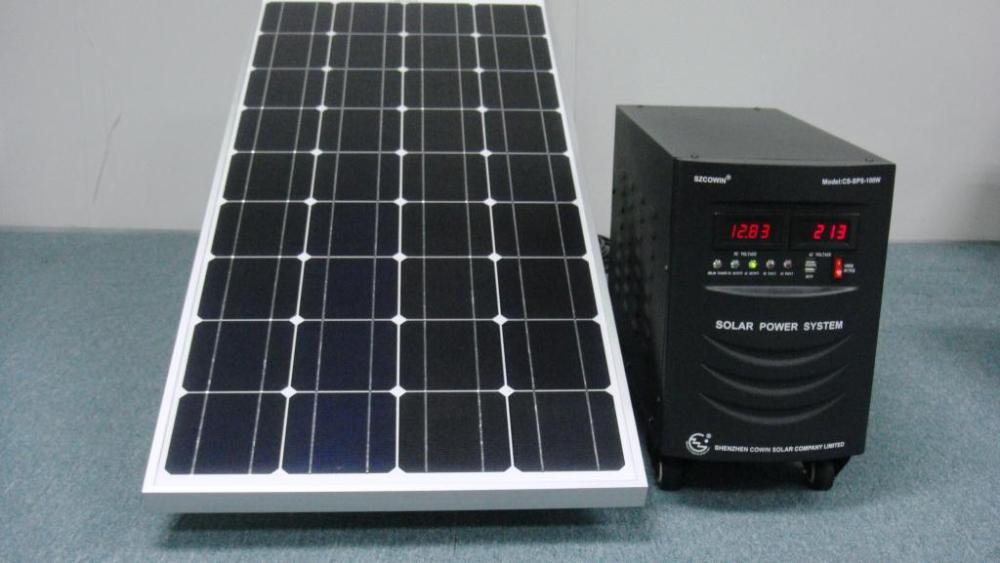

100W Off-Grid Solar Power System
This off-grid AC-DC power system includes solar panels, brackets, and a power control box. It is designed for users in remote areas and for field work.
Technical Specifications
Overview
Off-Grid Power Solution
This 100W Off-Grid Solar Power System is a compact, integrated solution designed for reliable energy access in remote locations or emergency situations. The system combines a solar panel, charge controller, inverter, and battery into a single, easy-to-install chassis. It supports both AC and DC output, providing versatile power options for a wide range of devices.
Technical Specifications
- Rated Power
- 100 W
- Scalable Solar Input
- Up to 200W / 18V
- Safety Protections
- Over Charge ProtectionOver Discharge ProtectionOverload ProtectionAnti-Reverse ProtectionTVS Lightning Protection
Output Interfaces
Output Interface Configuration
| Output Type | Quantity |
|---|---|
| DC 20V | 1 |
| DC 12V | 1 |
| DC 9V | 1 |
| DC 3.3V | 1 |
| USB 5V | 4 |
| AC 220V | 2 |
Display & Monitoring
Real-time Monitoring
- Battery voltage display
- System voltage display
- AC output voltage display
- Solar charge status indicator
- DC/AC fault indicators
Design & Utility
Charging Methods
Solar PanelGrid Electricity
- Installation
- Yes
