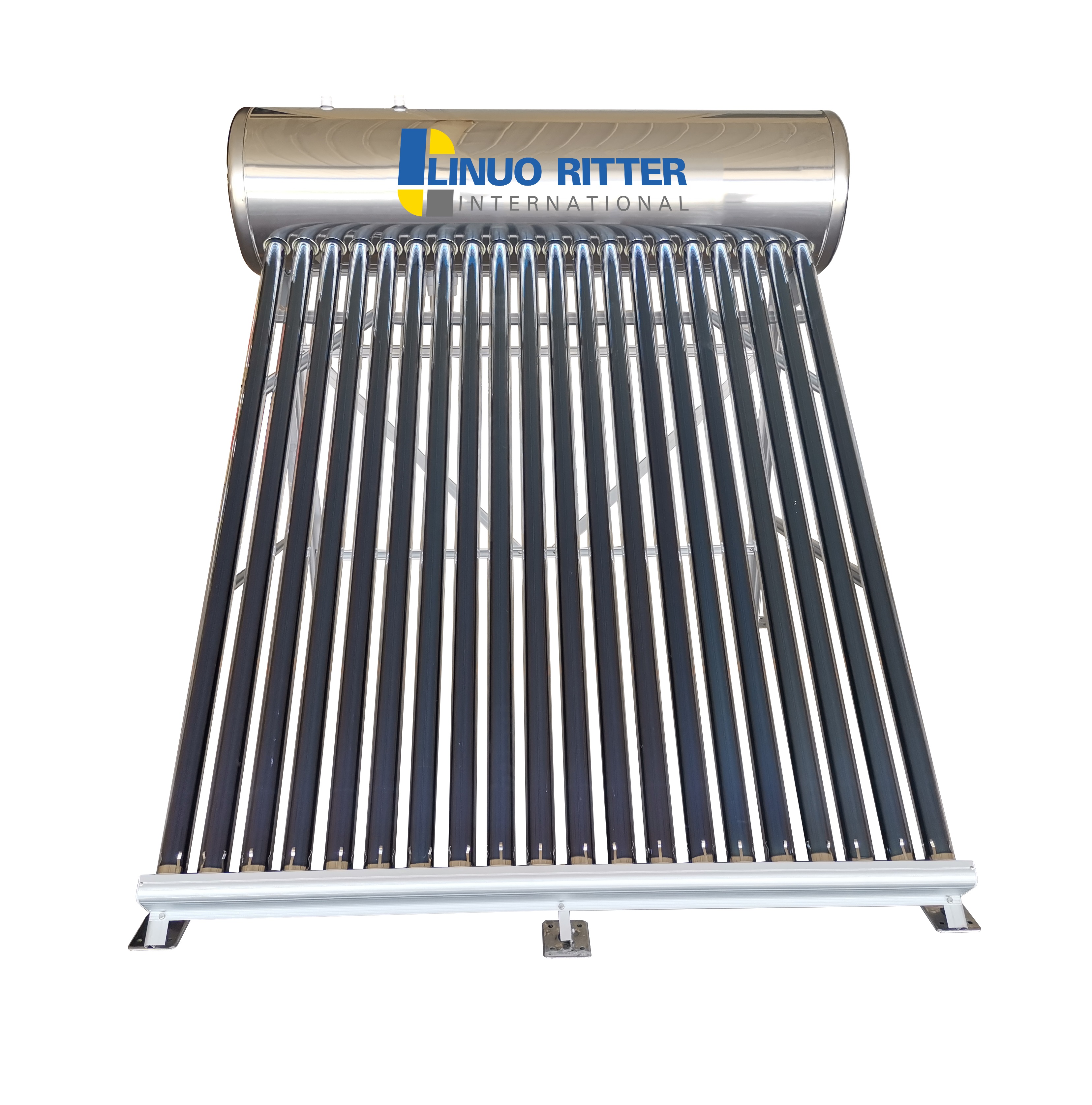

100L Non-Pressurized Solar Water Heater with Vacuum Tubes
This solar water heater uses sunlight to heat the water within its vacuum tubes. The solar collector absorbs radiation, converts it to heat, and transfers it to the water, which then rises into the 100L tank through thermosiphon circulation.
Technical Specifications
Product Overview
Efficient Solar Thermal Solution
This non-pressurized solar water heater utilizes the thermosiphon principle to efficiently convert solar radiation into heat. By circulating water through high-performance vacuum tubes, the system naturally transfers heated water to the storage tank while cooler water descends to the collector. Designed for durability and performance, it features a stainless steel tank and advanced insulation to minimize heat loss, providing a sustainable hot water solution for residential and small commercial use.
Technical Specifications
- Rated Operation Pressure
- 0.06 MPa
- Gross Surface Area
- 1.33 m2
- Aperture Area
- 0.92 m2
- Bracket Inclination
- 30 °
Tank Details
- Tank Dimensions
- φ450 x 990 mm
- Tank Insulation
- Polyurethane (50mm)
- Inner Tank Material
- Stainless steel SUS304-2B
- Inner Tank Dimensions/Thickness
- φ350mm / 0.5mm
- Outer Tank Material
- Stainless steel
- Outer Tank Dimensions/Thickness
- φ450mm / 0.4mm
Vacuum Tubes
- Vacuum Tube Size
- φ58 x 1800 mm
- Number of Tubes
- 10
Features & Compliance
Certifications
- DIN CERTCO: 011-7s2714A
- Included Features
- Electric heating provisionAnode protection
- Bracket Material
- Aluminum Alloy (Silver White)
