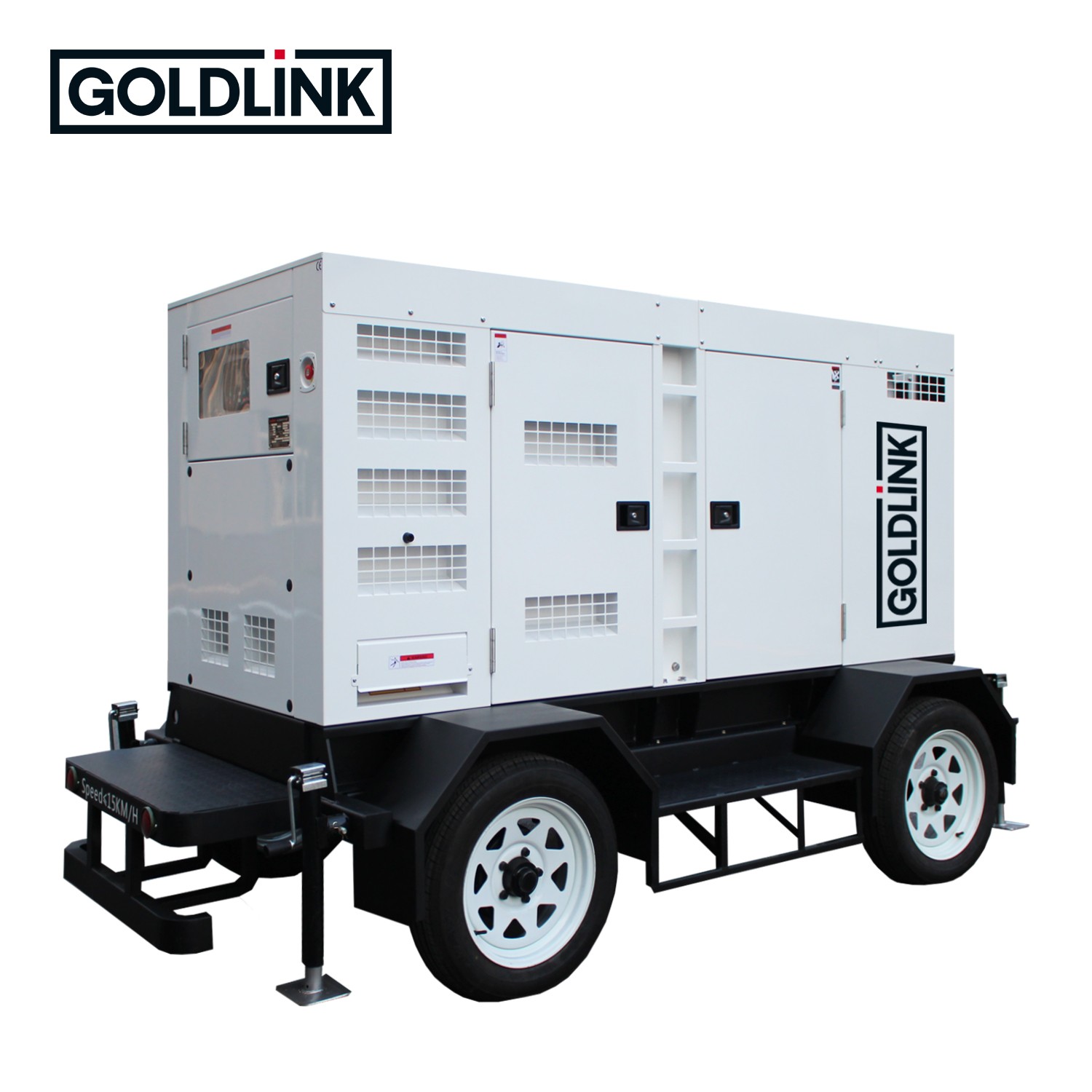

100kW Trailer Mounted Soundproof Diesel Generator Set
This 100kW diesel generator set is mounted on a trailer for easy transport and deployment. Its soundproof enclosure minimizes noise, making it suitable for use in noise-sensitive environments.
Technical Specifications
Overview
High-Performance Mobile Power Solution
This 100kW trailer-mounted diesel generator set is engineered for versatile and reliable power delivery in demanding environments. Featuring a soundproof enclosure made from galvanized metal sheets, it provides quiet operation suitable for noise-sensitive sites like events and hospitals. Its mobile trailer design ensures rapid deployment for construction, emergency backup, and industrial applications.
Performance Metrics
Core Performance
100 kW
Rated Power
125 kVA
Rated Capacity
50 Hz
Frequency
1,500 RPM
Engine Speed
Engine Specifications
Engine Technical Data
| Feature | Specification |
|---|---|
| Engine Type | 4-cycle, in-line, 6-cylinder |
| Aspiration | Turbocharged & Aftercooled |
| Governor Type | Electronic |
| Displacement | 5.9 L |
| Bore x Stroke | 102 x 120 mm |
| Compression Ratio | 17.3:1 |
| Fuel Consumption (100% Load) | 27 L/H |
| Oil Capacity | 12.3 - 14.2 L |
| Coolant Capacity | 10 L |
Alternator & Electrical
Alternator & Electrical System
| Parameter | Value |
|---|---|
| Phase/Wiring | 3 Phase, 4 Wires |
| Power Factor | 0.8 (Cos Phi) |
| Insulation Class | H |
| Protection Rating | IP23 |
| Voltage Regulation | ±0.5% |
| Efficiency | 90.3% |
| Excitation | Brushless, 100% Copper Wiring |
| AVR Model | SX460 |

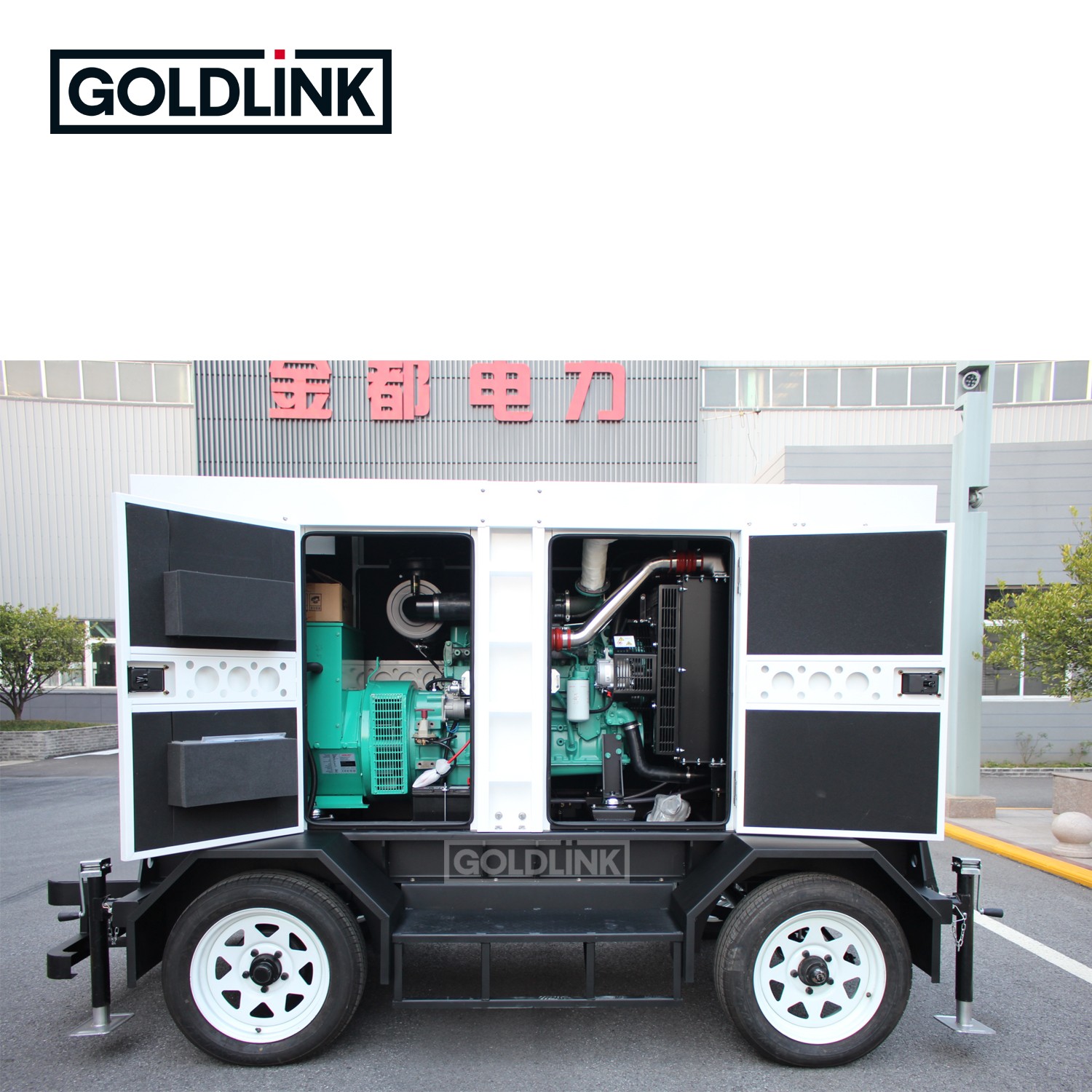

Enclosure & Mobility
Enclosure & Mobility
- Trailer-mounted for easy mobility (Speed < 15KM/H)
- Soundproof canopy made of 1.8mm galvanized steel plates
- Residential muffler and exhaust bellows for noise reduction
- Anti-vibration mountings
- High-capacity 8-hour (220L) base fuel tank
- Integrated drainage system for fuel, coolant, and engine oil
Control System
Control & Safety
- LCD control panel with AMF (Auto Mains Failure) function
- Selectable controller systems (Deepsea, Smartgen, or ComAp)
- CHINT circuit breaker included
- Equipped with heavy-duty batteries and chargers
- Optional Automatic Transfer Switch (ATS) available
Dimensions & Weight
Physical Specifications
| Metric | Value |
|---|---|
| Length | 2860 mm |
| Width | 1080 mm |
| Height | 1590 mm |
| Gross Weight | 1700 kg |
Compliance & Standards
- Compliance
- ISO 8528-1ISO 3046-1MEP STAGE ICE CertifiedNEMA TIF < 50
