100KVA Off-Grid Hybrid Solar Power System with 250KWH Lithium Battery
This off-grid hybrid solar power system provides 100KVA power. It includes a 250KWH lithium battery bank and integrates solar modules, MPPT controller, inverter, and BMS.
Technical Specifications
System Overview
High-Capacity Solar Energy Solution
This 100KVA off-grid hybrid solar power system is engineered for robust energy independence, featuring a massive 250KWH lithium battery bank. Designed for demanding applications such as factories, shopping malls, hotels, and schools, the system integrates advanced solar array management with intelligent battery storage. It offers flexible power management, supporting both grid connectivity and alternator backup to ensure reliable performance.
Performance Metrics
Key System Metrics
52.8 KWp
PV Array Power
100 KVA
Peak Load Capacity
250 KWH
Battery Capacity
264 KWH
Daily Production
Technical Specifications
PV Array Specifications
| Parameter | Value |
|---|---|
| Total Power | 52.8 KWp |
| Array Size | 340 M2 |
Energy Distribution
- Nighttime Power Usage: 250KWH
- Daytime Power Usage: 14KWH
- Full Charging Time: 5 Hours

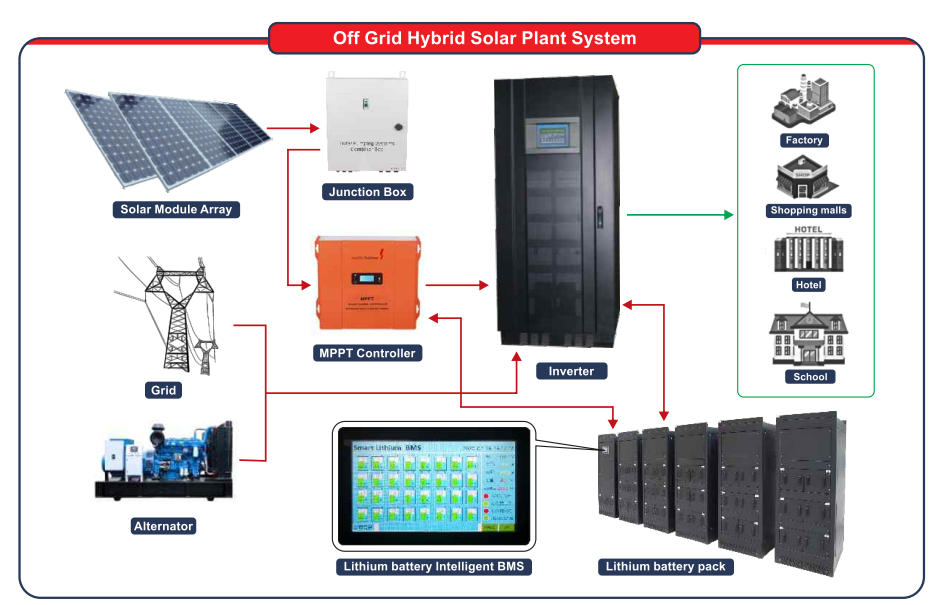

System Capabilities
- Integrated Components
- Solar Module ArrayJunction BoxMPPT ControllerInverterLithium BMSGrid SupportAlternator Backup
