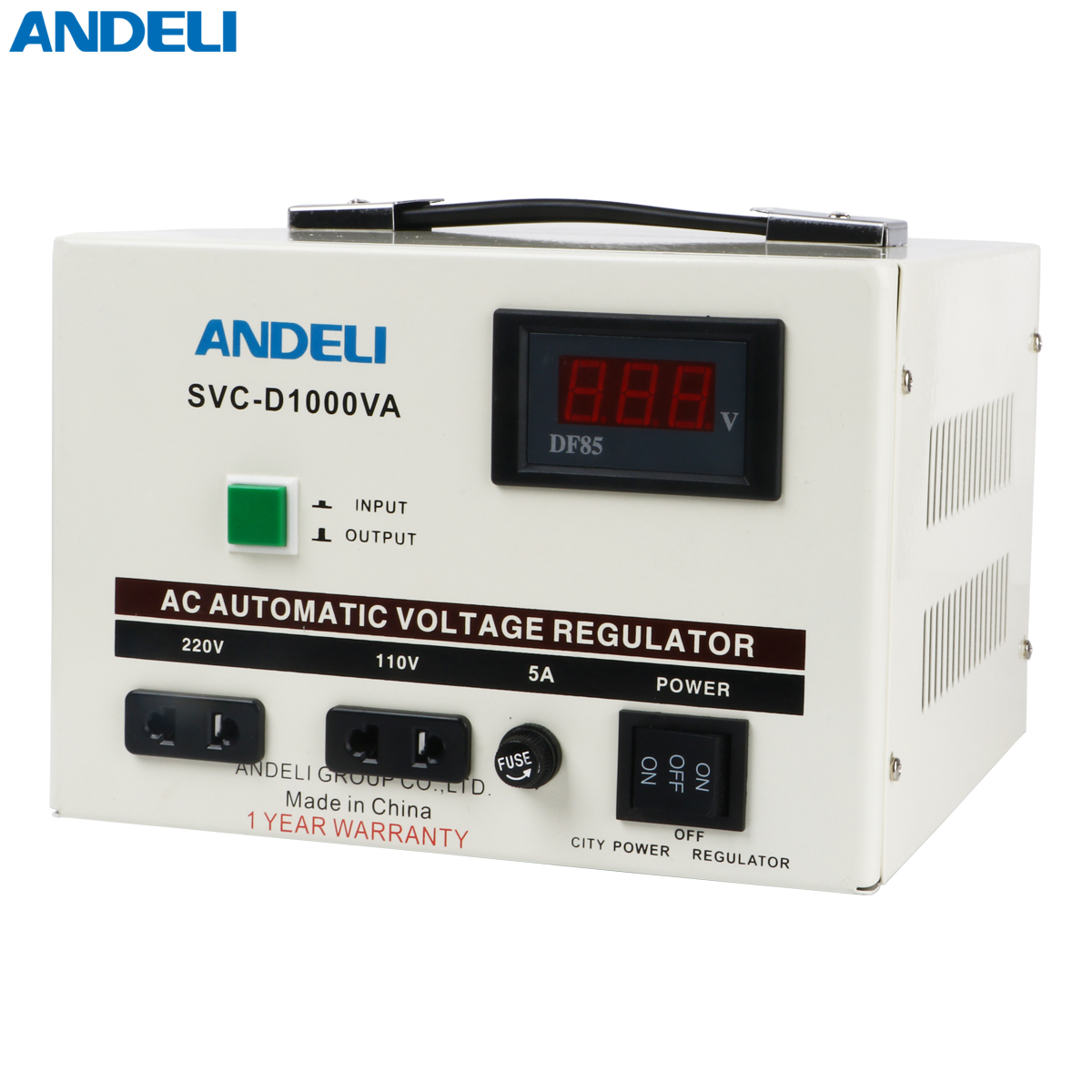

1000VA Automatic Voltage Regulator
This automatic voltage regulator provides a stable output voltage from a fluctuating input. It accepts either 220V or 110V input and is rated for 5A maximum current.
Technical Specifications
Product Overview
Professional Automatic Voltage Regulator
This 1000VA Automatic Voltage Regulator is engineered to safeguard sensitive electronic equipment against voltage fluctuations. Featuring a robust design with dual-voltage output capabilities, it provides high-precision stabilization and reliability. The unit includes an integrated digital display for real-time monitoring and utilizes high-quality internal components to ensure long-term operational stability.
Technical Specifications
Performance Metrics
1,000 VA
Rated Capacity
5 A
Max Current
1 sec
Response Time
90 %
Efficiency
Voltage Configuration
| Parameter | Value |
|---|---|
| Input Voltage | 150V-250V (or 110V-250V) |
| Output Voltage | 220V±3% / 110V±3% |
| Frequency | 50Hz/60Hz |
| Power Factor | 0.8 |
Operating Environment
- Ambient Temperature: -10°C to +40°C
- Relative Humidity: <90%
- Insulation Resistance: >5MΩ
Features
Certifications
1 Year WarrantyQC Passed
- Key Advantages
- Quality Copper CoilDual Voltage OutputDigital DisplayOverload ProtectionWear-resistant Carbon Brush
