100-Channel UHF Wireless Microphone System with Diversity Reception
This UHF wireless microphone system features 100 channels for flexible frequency selection. Its diversity receiver minimizes signal dropouts, ensuring reliable performance for professional audio environments.
Technical Specifications
Overview
Professional UHF Wireless Solution

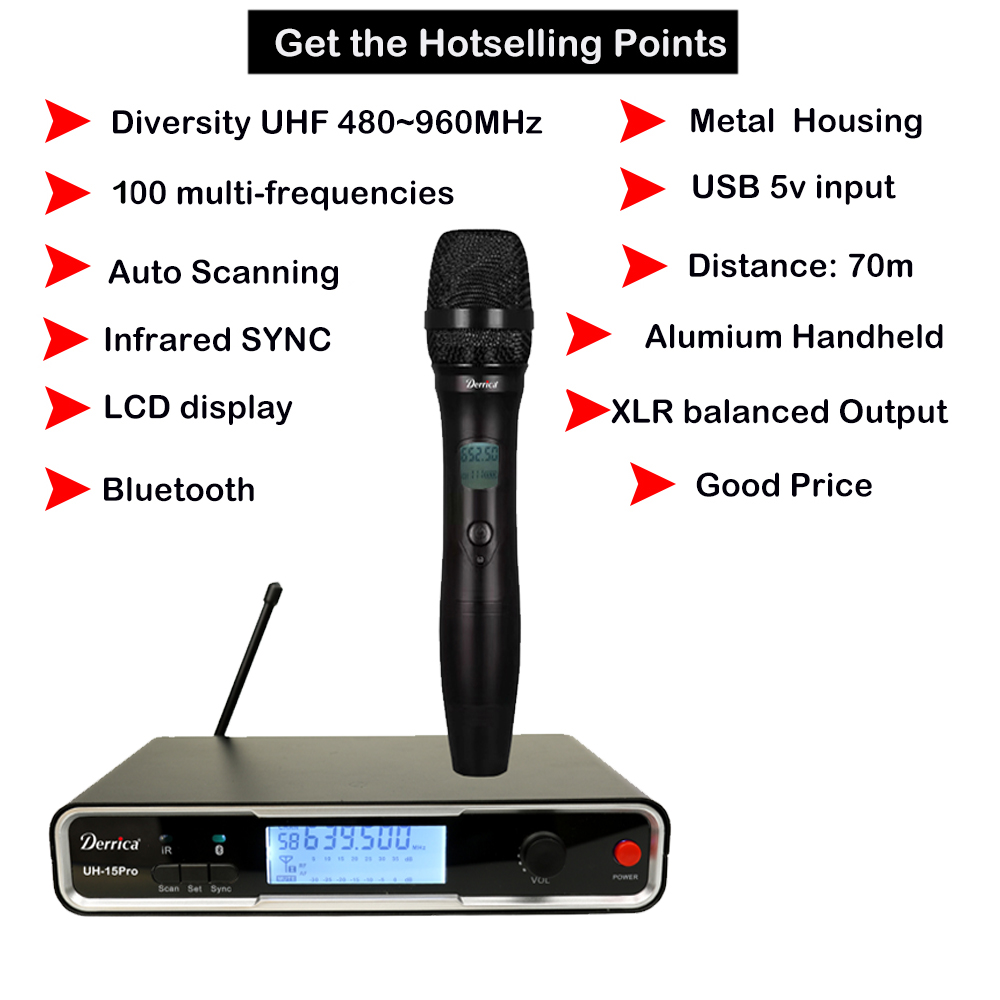

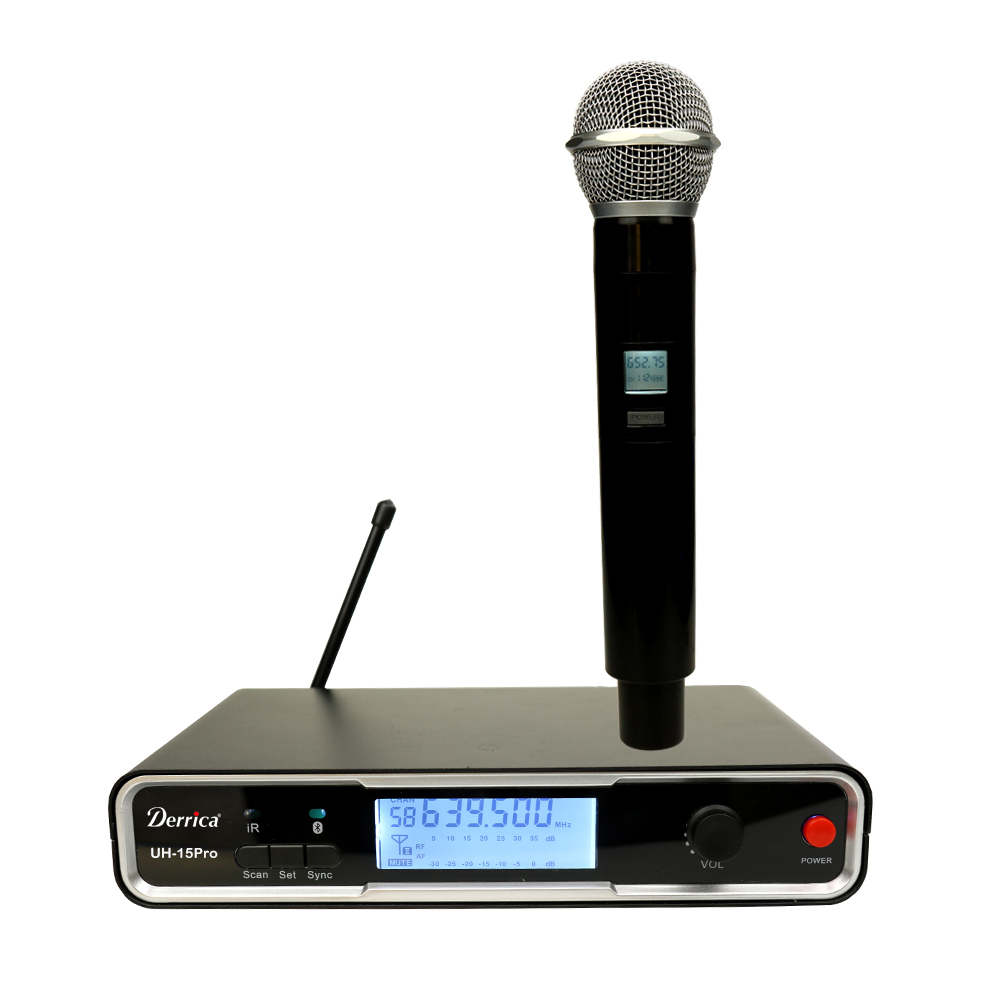

The UH-15Pro is a versatile 100-channel UHF wireless microphone system designed for stable, long-range audio performance. Featuring true diversity reception and a 70m operating range, it ensures reliable signal integrity without dropouts. Its unique USB 5V power compatibility and Bluetooth 4.1 integration make it an ideal choice for both professional stage setups and portable outdoor applications.
Key Performance Metrics
Performance Highlights
100 CH
Selectable Channels
70 m
Operating Distance
5 V
Power Input
Technical Specifications
Reception Type
Antenna Diversity
- Frequency Range
- 480~960MHz (Region dependent)
- Synchronization Mode
- Infrared (IR)
Features & Functionality
Smart Functions
- Auto-scanning for best working frequency
- Infrared Synchronizing for easy pairing
- Bluetooth 4.1 for smartphone app connectivity
- Real-time LCD status display
Hardware & Build
- Construction
- Metal Receiver HousingAluminum Handheld HandleSilver Panel FrameCompact Design
Connectivity & Power

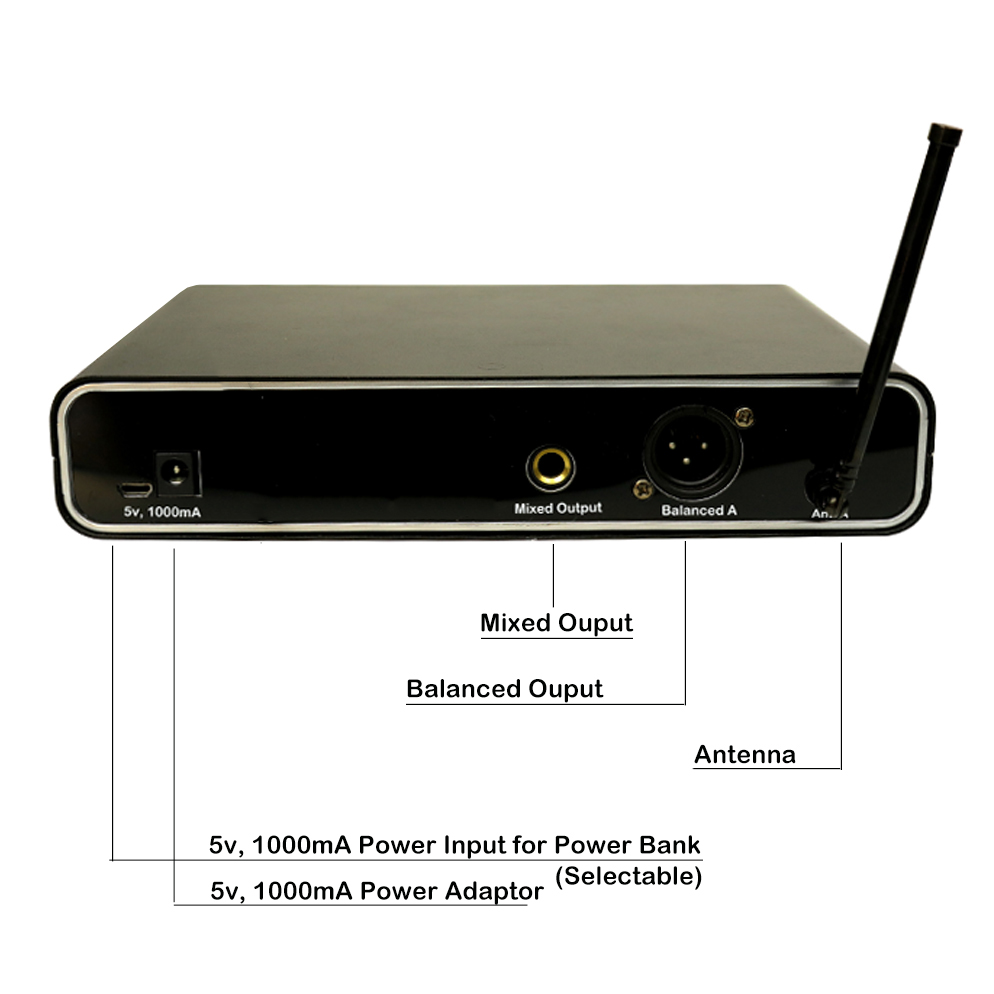

Inputs & Outputs
- XLR Balanced Output
- Mixed 6.35mm Output
- USB 5V Power Input
- Antenna Terminals
- Power Options
- Yes
- Power Source Note
- Compatible with Power Banks for outdoor use
