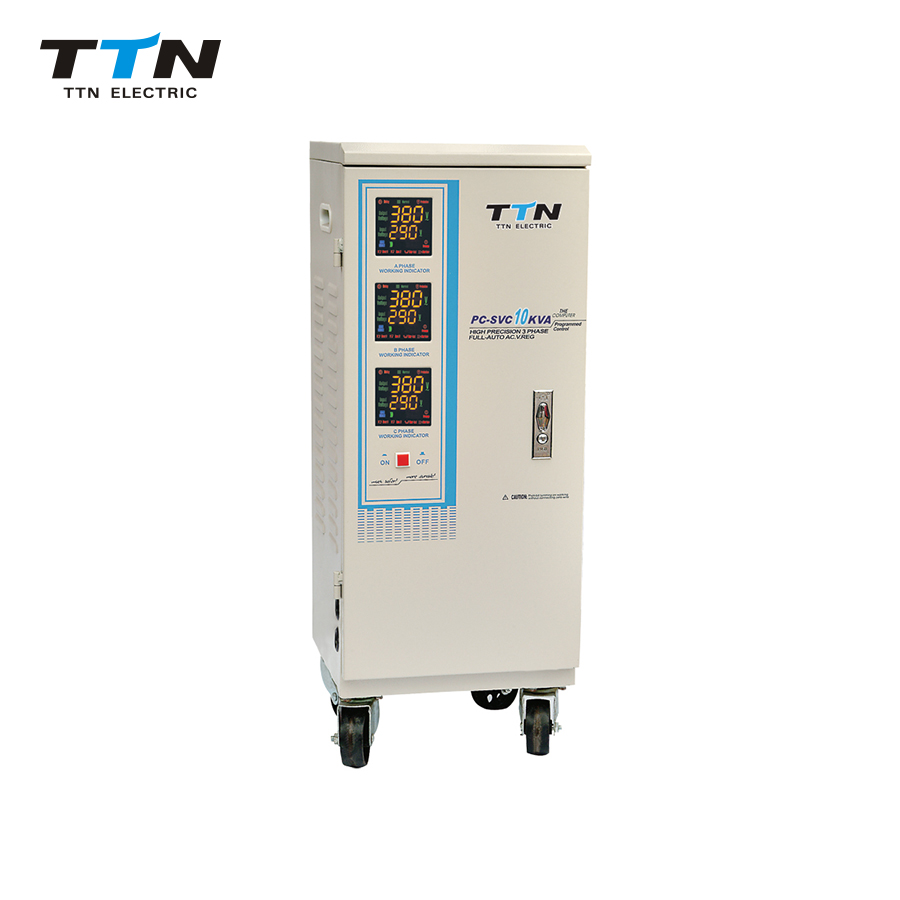

10 kVA Three-Phase Voltage Stabilizer
This 10 kVA three-phase voltage stabilizer provides stable and reliable power, featuring working indicators for each phase and displays for voltage and current readings. Designed to protect sensitive electronic equipment, it utilizes toroidal transformers for efficient voltage regulation and ensures optimal performance of connected devices.
Technical Specifications
Product Overview
Precision Power Protection
This three-phase voltage stabilizer features advanced servo motor control and microprocessor-programmed logic to deliver stable and reliable power. Designed for industrial and commercial environments, it includes comprehensive protection functions against over-voltage, low-voltage, over-load, and over-heat conditions. With a high efficiency rating exceeding 90%, it ensures optimal performance for sensitive equipment.
System Languages
Performance Metrics
Key Performance Metrics
Technical Specifications
Electrical Characteristics
| Parameter | Value |
|---|---|
| Input Voltage Range | AC 270V - 430V |
| Output Voltage | 380V ± 3% |
| Frequency | 50Hz / 60Hz |
| Phase | Three phase |
| Insulation Resistance | > 2MΩ |
Operating Environment
- Ambient Temperature: -15°C to 45°C
- Relative Humidity: < 95%
Protection & Features
- Protection Features
- Over-voltage protectionLow-voltage protectionOver-heat protectionOver-load protectionServo Motor Control
