Technical Specifications
Overview
Professional Sound Reinforcement

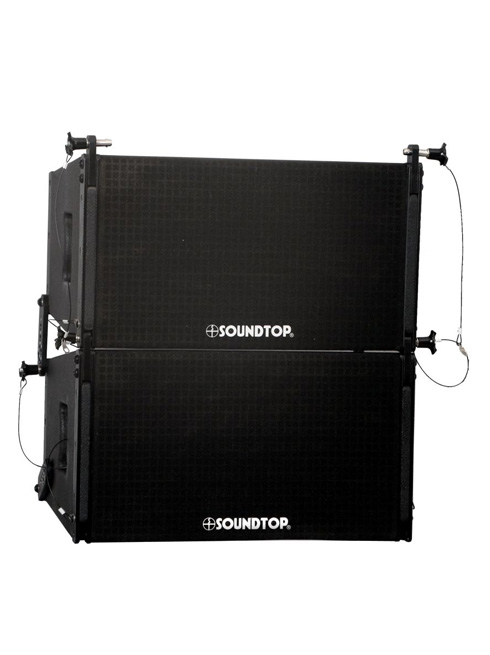

This 10-inch line array speaker is engineered for high-performance audio in demanding professional environments, ranging from concert halls and stadiums to conference centers and banquet halls. It features a robust 2-way design with neodymium transducers that deliver exceptional clarity and high sound pressure levels. The unit is built for versatility, supporting both passive and bi-amp operation modes, and utilizes a lightweight aluminum hanging system for efficient deployment in various configurations.
Applications
- Suitable Venues
- Touring PerformanceConference CentersSmall TheatersDance HallsAuditoriumsMulti-function RoomsBanquet HallsStadiumsConcert Halls
Audio Performance
Key Performance Metrics
129 dB
Peak SPL
300 W
LF Rated Power
100 W
HF Rated Power
Frequency Response Details
| Band | -3dB Range | -10dB Range |
|---|---|---|
| LF | 75Hz-2.5kHz | 60Hz-2.5kHz |
| HF | 2.5kHz-18kHz | 2.5kHz-19kHz |
Technical Specifications
Transducer Configuration
- LF: 1x10-inch woofer with 3-inch voice coil (Neodymium)
- HF: 1x1-inch throat with 1.7-inch voice coil (Neodymium)
Impedance & Sensitivity
| Parameter | HF | LF |
|---|---|---|
| Nominal Impedance | 16Ω | 16Ω |
| Sensitivity (1W @ 1m) | 105 dB | 98 dB |
| Max SPL | 123 dB | 121 dB |
Physical Characteristics
Dimensions & Build
- Dimensions: 500 x 275 x 355 mm
- Net Weight: 21 kg
- Enclosure: 15mm birch plywood with glass fiber/polyester
- Finish: Black textured paint
- Grill: Black steel with anti-corrosion coating
System Features
Operation Modes
Single-Channel (Passive)Dual-Channel (Bi-Amp)
