10-50kW Diesel Generator Set
This diesel generator set provides stable output with its ECU governor and offers good heat dispersion via its water-cooled or air-cooled system. Its compact structure and light weight contribute to fuel efficiency.
Technical Specifications
Overview
Reliable Power Solutions (10-50kW)
This series of diesel generator sets offers a versatile power range from 10kW to 50kW, designed for stable and continuous output in demanding environments. Featuring advanced ECU governors and efficient cooling systems, these units provide steady rotation speeds and excellent heat dispersion. Their compact, lightweight structure combined with fuel-saving technology makes them an ideal choice for professional B2B applications requiring portable or stationary power.
Performance Metrics
Power Capacity Range
10 kW
Minimum Power
50 kW
Maximum Power
Technical Features
Key Benefits
- Stable rotation speed
- Compact structure
- Lightweight design
- Fuel-saving efficiency
- Good heat dispersion
- Cooling System
- Water-cooledAir-cooled
- Governor Type
- ECU Governor
Control & Safety
Monitored Parameters
- Voltage
- Current
- Frequency
- DC 12V 8.3A Output

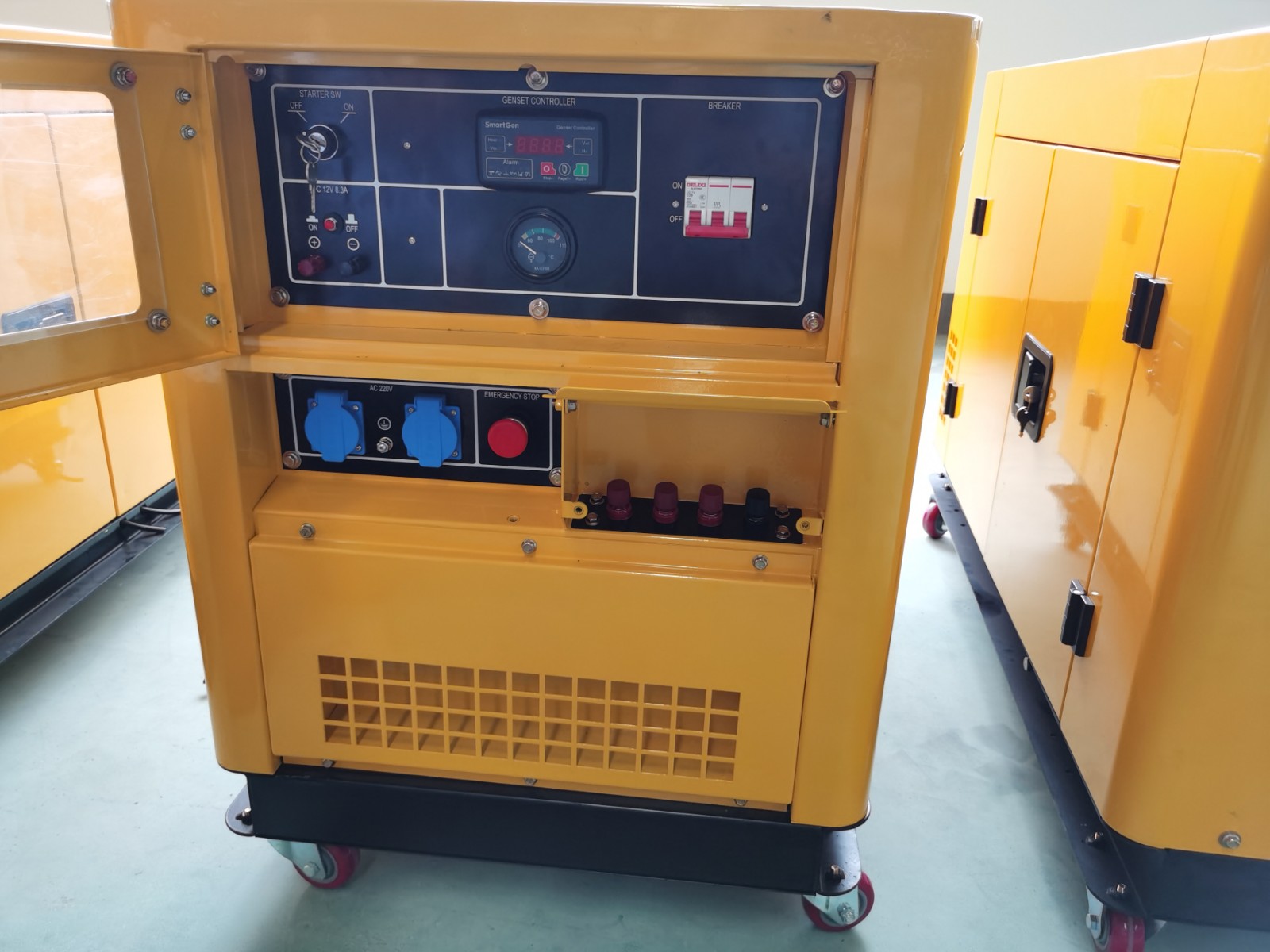

- Control Panel Features
- SmartGen ControllerDigital DisplayEmergency StopCircuit BreakerStarter Switch
Model Specifications

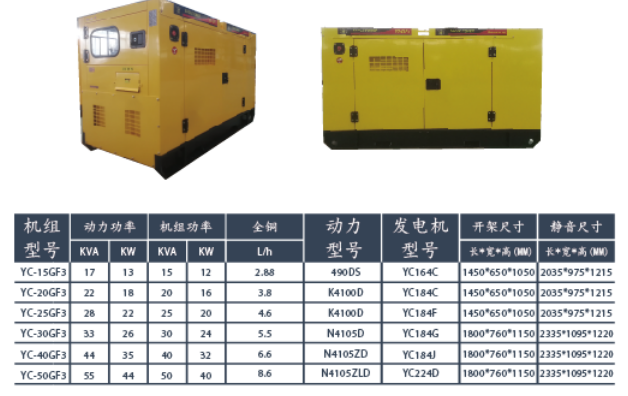

Model Comparison Table
| Model | Rated Power (KVA/KW) | Fuel Cons. (L/h) | Engine Model | Silent Dim. (mm) |
|---|---|---|---|---|
| YC-15GF3 | 17 / 13 | 2.88 | 490DS | 2035*975*1215 |
| YC-20GF3 | 22 / 18 | 3.8 | K4100D | 2035*975*1215 |
| YC-25GF3 | 28 / 22 | 4.6 | K4100D | 2035*975*1215 |
| YC-30GF3 | 33 / 26 | 5.5 | N4105D | 2335*1095*1220 |
| YC-40GF3 | 44 / 35 | 6.6 | N4105ZD | 2335*1095*1220 |
| YC-50GF3 | 55 / 44 | 8.6 | N4105ZLD | 2335*1095*1220 |
Physical Design
Enclosure Type
Open FrameSilent TypeSoundproof Canopy
- Mobility
- Yes
