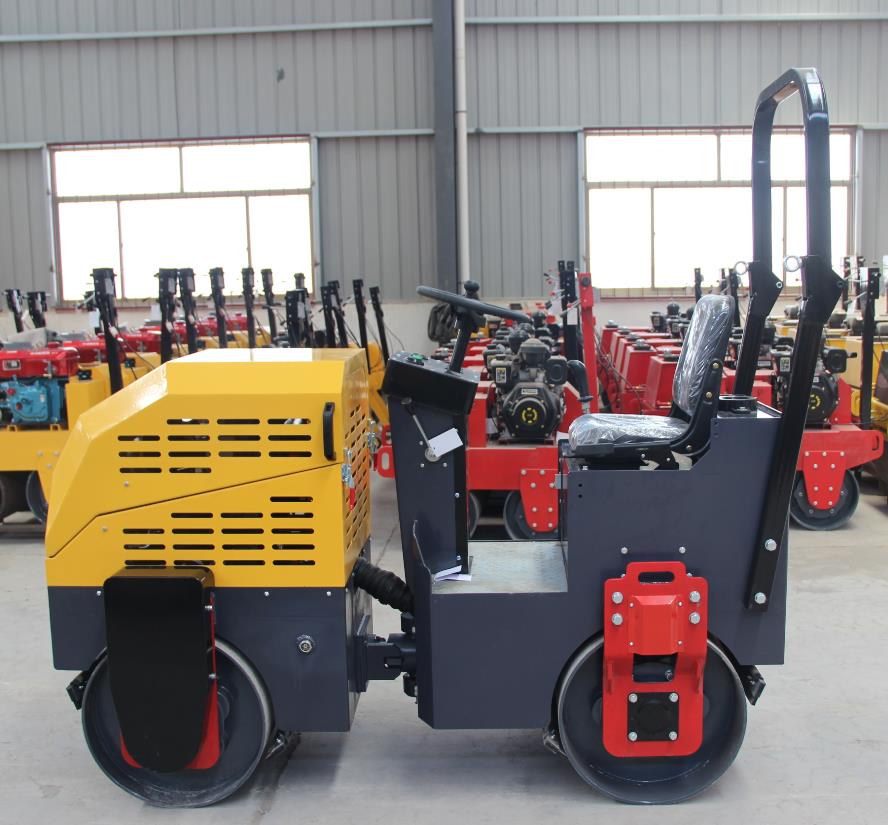

1-Ton Hydraulic Ride-On Double Drum Road Roller
This 1-ton hydraulic ride-on double drum road roller features an articulated frame and hydraulic power steering. It is equipped with a diesel engine for reliable power and performance.
Technical Specifications
Overview
High-Performance Ride-On Compactor
This 1-ton hydraulic double drum ride-on road roller is engineered for precision and efficiency in road construction and maintenance. Featuring a powerful diesel engine and articulated front and rear frame connection, it delivers superior compaction results across asphalt, soil, and various construction surfaces. With hydraulic power steering and a user-friendly ride-on design, this machine offers excellent maneuverability and operator comfort for demanding job sites.
Technical Specifications
- Working Weight
- 1040 kg
- Engine Model
- Changfa CF186
- Engine Type
- Diesel engine, air-cooled four-stroke
- Power Output
- 9HP/3600RPM
- Fuel Tank Capacity
- 5.5 L
Performance Metrics
Key Performance Metrics
30 KN
Exciting Force
75 HZ
Vibration Frequency
30 %
Gradeability
56 N/cm
Static Line Load
- Operating Speed
- 0-8 KM/H
Dimensions
Machine Dimensions
| Dimension | Value |
|---|---|
| Total Length | 2100mm |
| Total Width | 860mm |
| Total Height | 1600mm |
| Steel Wheel Width | 700mm |
| Steel Wheel Diameter | 530mm |
Operational Features
Key Features
- Hydraulic drive with stepless speed change
- One-button vibration control with electromagnetic clutch
- Hydraulic power steering
- Electronically controlled pressure water spray system
- Articulated front and rear frame connection
- Applications
- Asphalt PavementPipeline Gully BackfillLawn CompactionConstruction Site PrepFoundation CompactionRoadside Compaction
