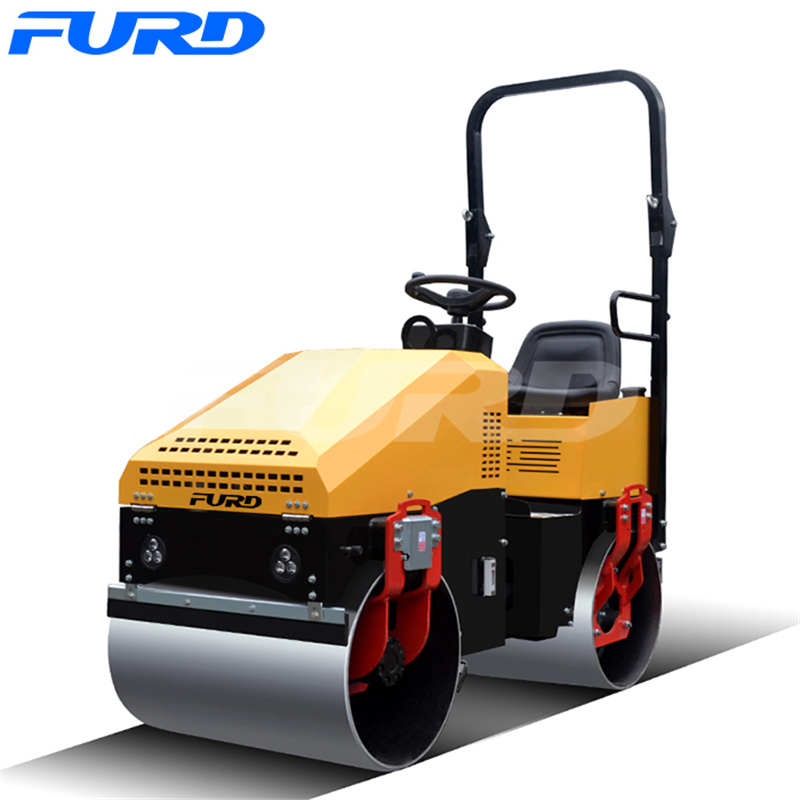

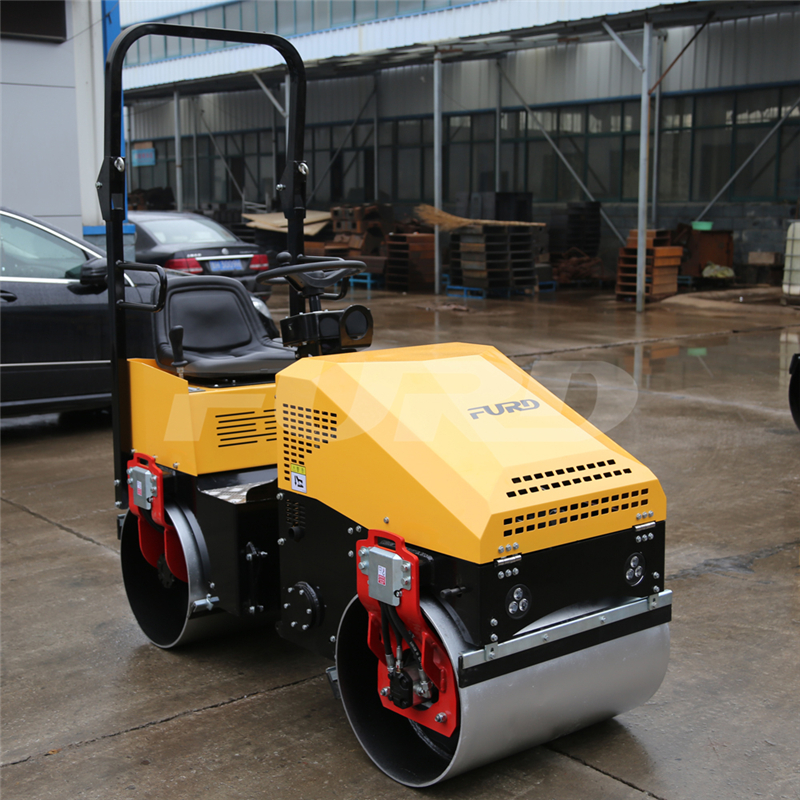

1-Ton Full Hydraulic Vibratory Road Roller
This 1-ton full hydraulic vibratory road roller is designed for asphalt and soil compaction. It features a fully hydraulic system for smooth operation and delivers efficient compaction on various surfaces.
Technical Specifications
Overview
High-Efficiency 1-Ton Hydraulic Road Roller
This 1-ton fully hydraulic vibratory road roller is engineered for superior compaction of asphalt and soil in small to medium-sized projects. Featuring a fully hydraulic drive system and double drum driving motors, it offers infinitely variable speed and exceptional maneuverability. Its compact design and small operating radius make it an ideal choice for narrow areas, groove backfills, and precision welt work.
Performance Highlights
Key Performance Metrics
28 KN
Exciting Force
1,000 kg
Working Weight
70 Hz
Vibration Frequency
35 %
Gradeability
Technical Specifications
General Specifications
| Parameter | Value |
|---|---|
| Walk Speed | 0-6.5 km/h |
| Drive Type | Hydraulic Double Drum Drive |
| Vibration Type | Hydraulic Vibration |
| Static Linear Load | 56 N/cm |
| Nominal Amplitude | 0.5 mm |
Engine & Power
Engine Options
- HONDA GX390 Gasoline Engine (13HP)
- High-performance Diesel Engine (11HP)
- Electric Starting Mode
Physical Dimensions
- Steel Wheel Size
- Φ540 X 800mm X 2
- Package Dimensions
- 2100 * 1000 * 1650 mm
Capacities
- Water Tank
- 60 L
- Hydraulic Oil Tank
- 35 L
Operational Features
- Core Features
- Infinitely Variable SpeedHydraulic SteeringSmall Operating RadiusDouble Drum DriveGroove Backfill SuitableDust Suppression System
