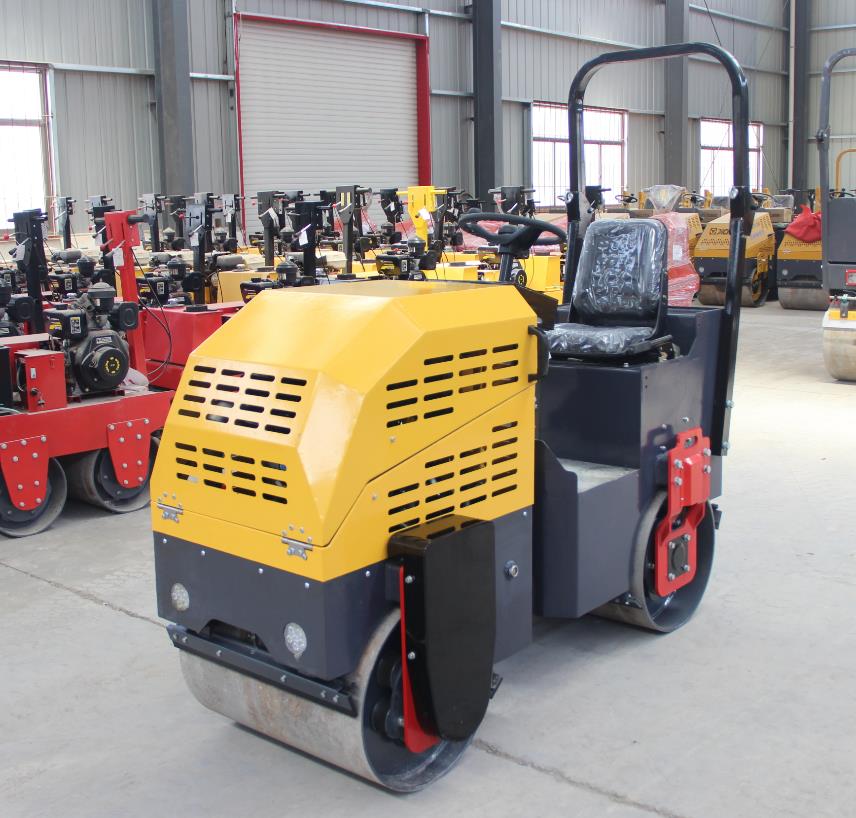

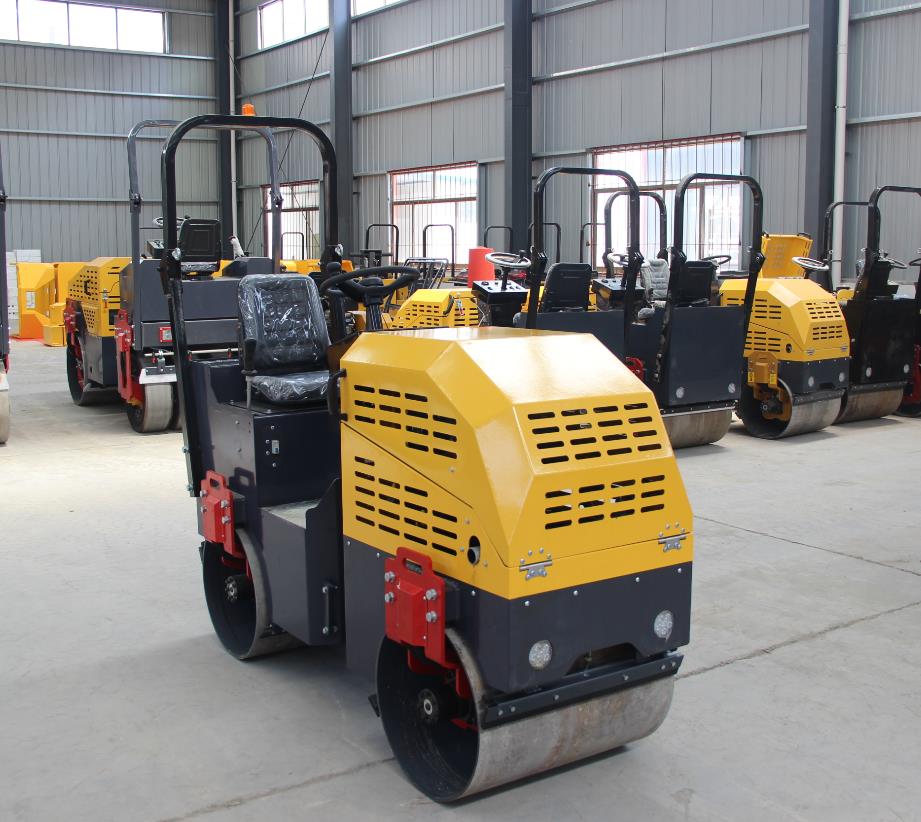

1-Ton Double Drum Vibratory Road Roller
This 1-ton road roller features a hydrostatic drive system and double vibratory compaction, powered by a reliable diesel engine. It is designed for a wide range of applications, including asphalt pavement, pipeline gully compaction, lawn compaction, construction site compaction, foundation compaction, and roadside compaction.
Technical Specifications
Overview
High-Performance 1-Ton Compactor
This 1-ton double drum vibratory road roller is designed for professional-grade compaction of asphalt, soil, and gravel. Featuring a powerful diesel engine and hydrostatic drive, it offers smooth, stepless speed control and exceptional maneuverability in confined spaces. Its robust articulated frame and dual-wheel drive ensure consistent performance across diverse construction and maintenance projects.
Performance Metrics
Key Performance Indicators
30 KN
Exciting Force
1,040 kg
Working Weight
8 km/h
Max Speed
30 %
Gradeability

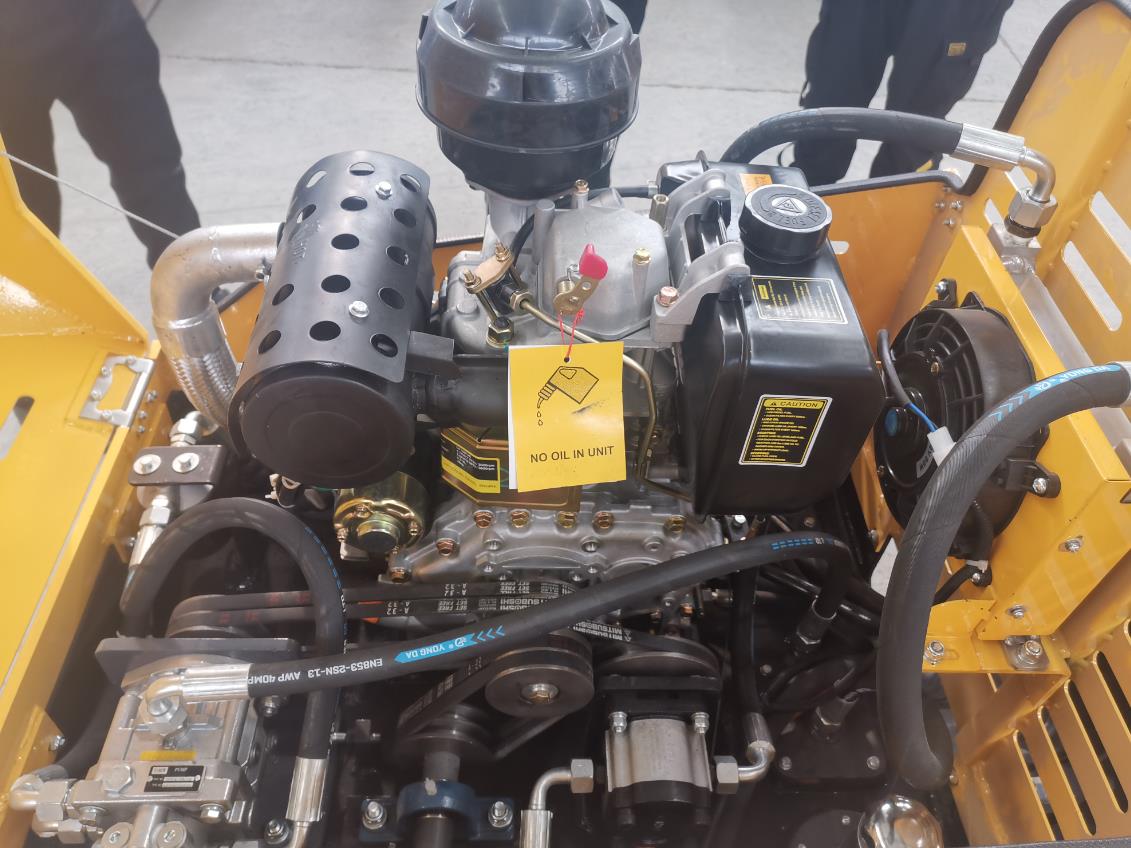

Engine Specifications
Engine Details
| Feature | Specification |
|---|---|
| Engine Model | CF186 |
| Type | Diesel engine, air-cooled four-stroke |
| Power Output | 9HP / 3600RPM |
| Fuel Tank Capacity | 5.5L |
| Fuel Consumption | 300g/kW.h |
Compaction System
Compaction System
| Parameter | Value |
|---|---|
| Vibration Frequency | 75Hz |
| Nominal Amplitude | 0.5mm |
| Static Line Load | 56N/cm |
| Vibration Method | One-button vibration, electromagnetic clutch |
| Sprinkling Method | Electronically controlled pressure water spray |
Dimensions & Build
- Steel Wheel Width
- 700 mm
- Steel Wheel Diameter
- 530 mm
- Turning Radius
- 2000 mm
- Machine Dimensions (LxWxH)
- 2100 x 860 x 1600 mm
Operation & Control
- Drive Method
- Hydraulic drive, stepless speed change
- Steering Method
- Hydraulic power steering
Applications
- Ideal Applications
- Asphalt PavementPipeline GullyLawn CompactionConstruction SiteFoundation CompactionRoadside Maintenance
Key Features
Core Features
- Front and rear frame articulated connection
- Front and rear two-wheel drive walking
- Front and rear double vibratory drums

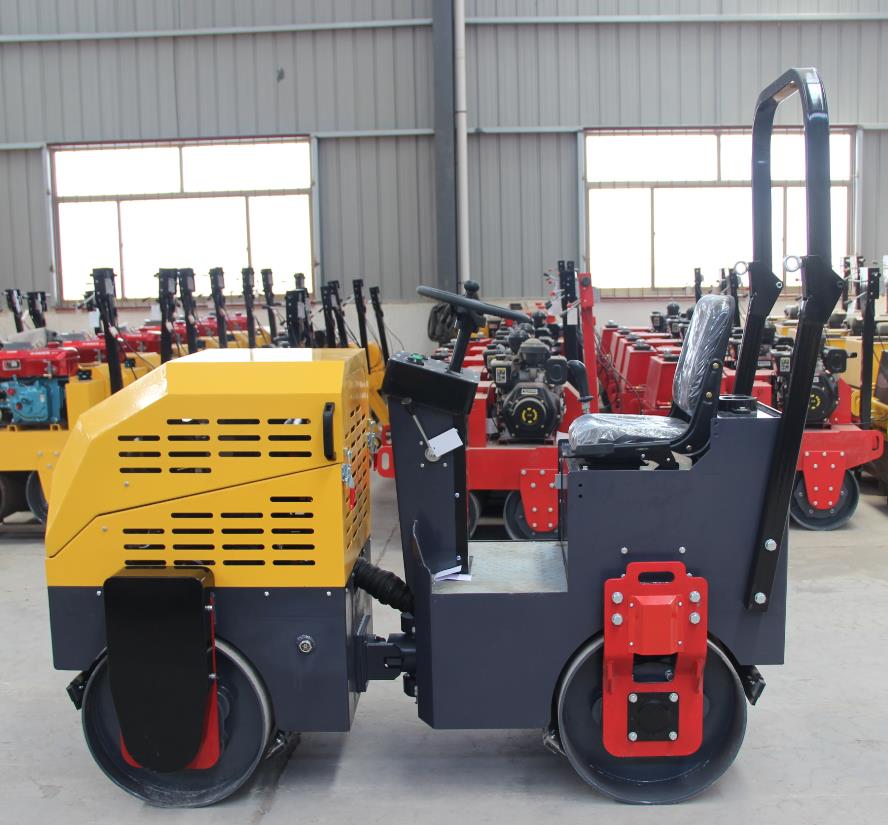

- Compact design for confined spaces
- Brand-name quality assurance engine
