1kV Heat Shrinkable Termination Kit
These heat shrinkable termination accessories are designed for 0.6/1.0(1.2) kV polymeric cables, including PVC, XLPE, and PE insulated types. The kits are engineered to provide superior electrical and mechanical performance, ensuring reliable insulation and sealing for cable terminations. With a focus on durability, these accessories offer excellent resistance to corrosion, UV radiation, and weathering, making them suitable for demanding environmental conditions.
Key Features
- Product Highlights
- Compact dimensionsHalogen-freeUV resistantWeather resistantCorrosion resistantHigh insulation performance
Technical Specifications
Compatible Cable Insulation
- PVC
- XLPE
- PE
- Voltage Rating
- 0.6/1.0 (1.2) kV
Performance Data

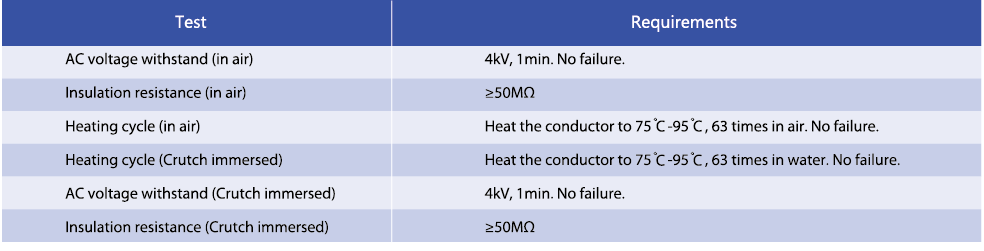

Electrical Test Requirements
| Test Type | Requirement |
|---|---|
| AC Voltage Withstand (Air) | 4kV, 1 min, No failure |
| Insulation Resistance (Air) | ≥50MΩ |
| Heating Cycle (Air) | 75°C-95°C, 63 cycles, No failure |
| AC Voltage Withstand (Crutch) | 4kV, 1 min, No failure |
| Insulation Resistance (Crutch) | ≥50MΩ |
| Heating Cycle (Crutch) | 75°C-95°C, 63 cycles, No failure |
Model Selection

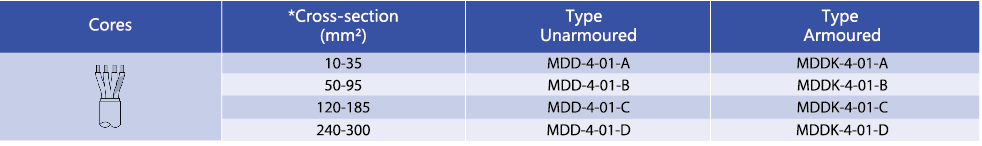

Available Models (4-Core)
| Cross-section (mm²) | Unarmoured Type | Armoured Type |
|---|---|---|
| 10-35 | MDD-4-01-A | MDDK-4-01-A |
| 50-95 | MDD-4-01-B | MDDK-4-01-B |
| 120-185 | MDD-4-01-C | MDDK-4-01-C |
| 240-300 | MDD-4-01-D | MDDK-4-01-D |
