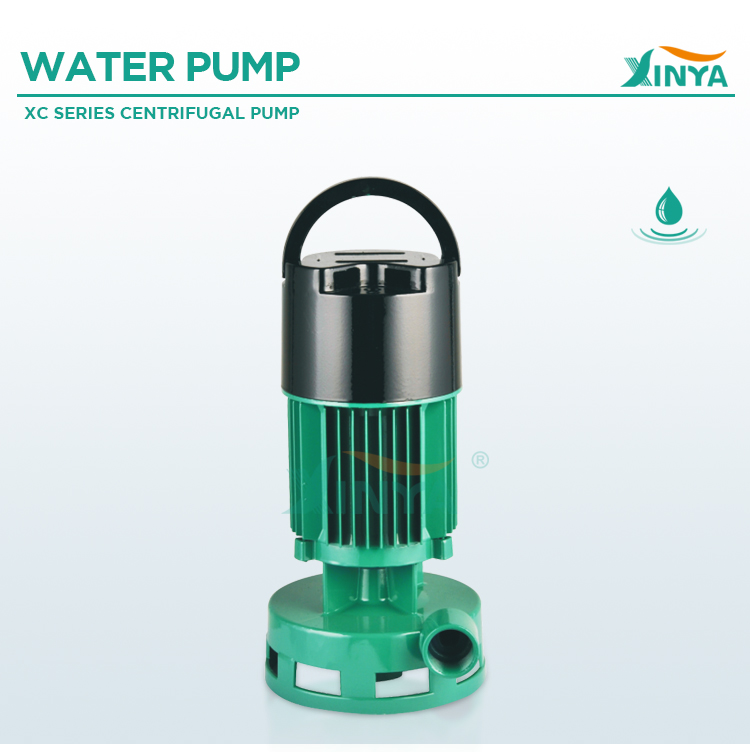

1 HP Self-Priming Water Pump
This self-priming pump is suitable for land irrigation, mine water drainage and flood control. It has a compact construction, tight sealing, and is energy efficient.
Technical Specifications
Overview
Professional Grade Self-Priming Water Pump
This XC series self-priming pump is an industry-standard solution designed for efficient water transfer in irrigation, drainage, and flood control applications. Engineered for compactness and durability, it features high sealing quality and energy-efficient performance. It is perfectly suited for extraction from wells, rivers, and lakes, ensuring reliable service in both agricultural and residential settings.
Technical Specifications
Construction Materials
| Component | Material |
|---|---|
| Pump Body | Aluminum |
| Impeller | Aluminum |
Protection Rating
IP43
- Power Output
- 750 W
- Horsepower
- 1 HP
- Operating Voltage
- 220V/50HZ110V/60HZ

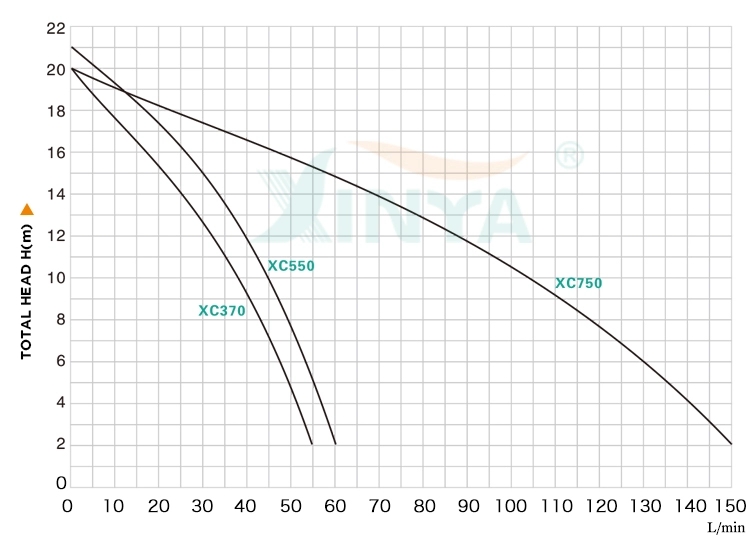

Performance Metrics
Key Performance Metrics
150 L/min
Max Flow Rate
22 m
Max Head
8 bar
Max Pressure
Operational Limits
Temperature Thresholds
- Max fluid temperature: 35℃
- Max environment temperature: 35℃
Applications
- Common Use Cases
- Arable land irrigationMine water drainageFlood controlResidential water supplyGreenhouse wateringPipe pressurization
