1-18kW Pure Sine Wave Inverter Charger
This pure sine wave inverter charger converts DC power to AC, with power ranging from 1kW to 18kW. It provides reliable power for home appliances and office equipment, with battery charging capabilities.
Technical Specifications
Overview
High-Efficiency Inverter & Charger

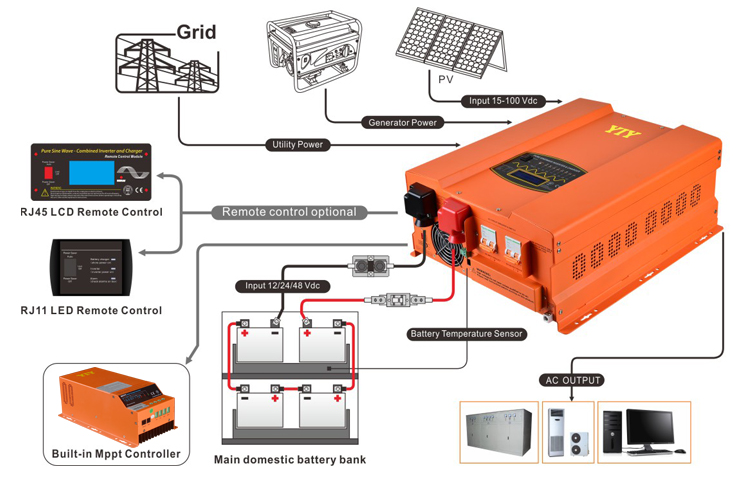

The HP series is a robust low-frequency, pure sine wave inverter and charger designed for demanding renewable energy, off-grid, and backup power applications. Ranging from 1kW to 18kW, this unit provides reliable power conversion for both household and industrial loads. It features advanced battery management, including support for various battery types and intelligent charging, alongside integrated MPPT solar capabilities for comprehensive energy systems.
Performance
- Power Range
- 1.0kW - 18.0kW
- Peak Efficiency
- 88 %
- Line Mode Efficiency
- 95 %
- Typical Transfer Time
- 10 ms
Key Features
Load Compatibility
Linear LoadsNon-Linear LoadsHousehold AppliancesOffice EquipmentMarine & RV
- Advanced Features
- Pure Sine WaveMPPT Solar ControllerBattery Temperature SensorAutomatic Generator StartingRemote Control SupportPower Saving Mode
Battery Management
Supported Battery Types
- Gel USA
- AGM 1
- Lithium
- Sealed Lead Acid
- Gel EURO
- Open Lead Acid
- LifePO4
- De-sulphation
- Classic LFP
- Charging Stages
- 4-step Intelligent Charging
Technical Specifications
- Output Frequency
- 50Hz / 60Hz (Adjustable)
- Total Harmonic Distortion (THD)
- < 3% at rated load
- Mounting
- Wall Mount
- Ambient Temperature
- 0-40°C (Full load); 40-60°C (De-rating)
