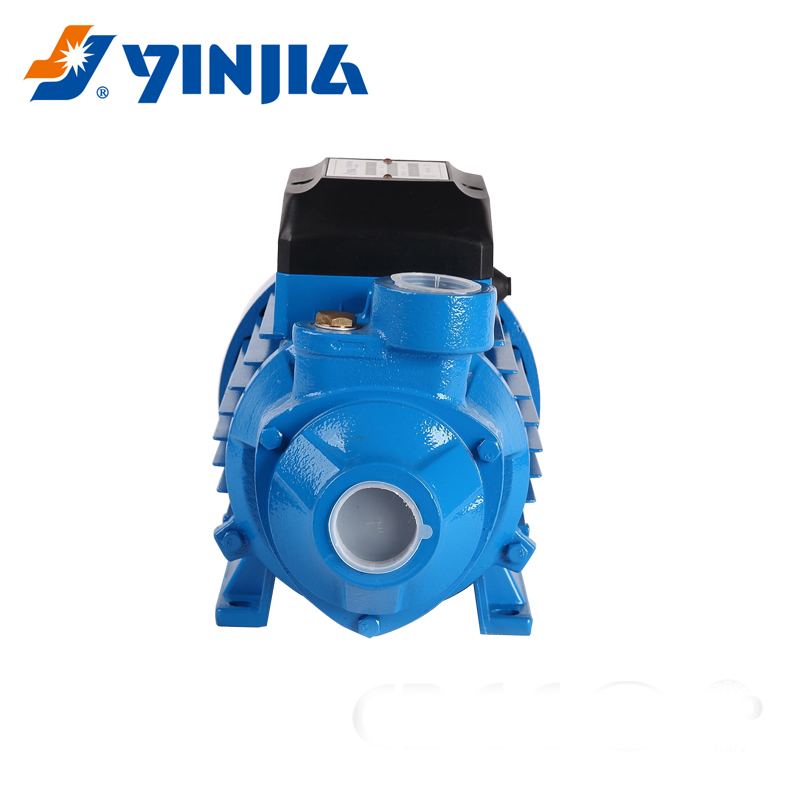

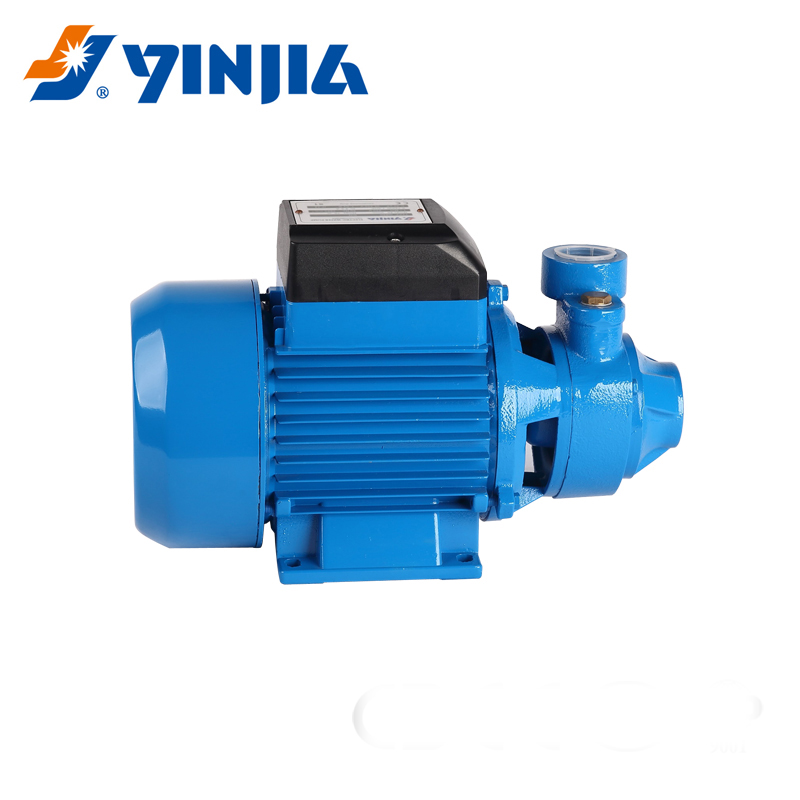

0.5 HP Vortex Clean Water Pump
This 0.5 HP vortex pump is designed for domestic clean water applications. It is suitable for home use, providing reliable water transfer and boosting.

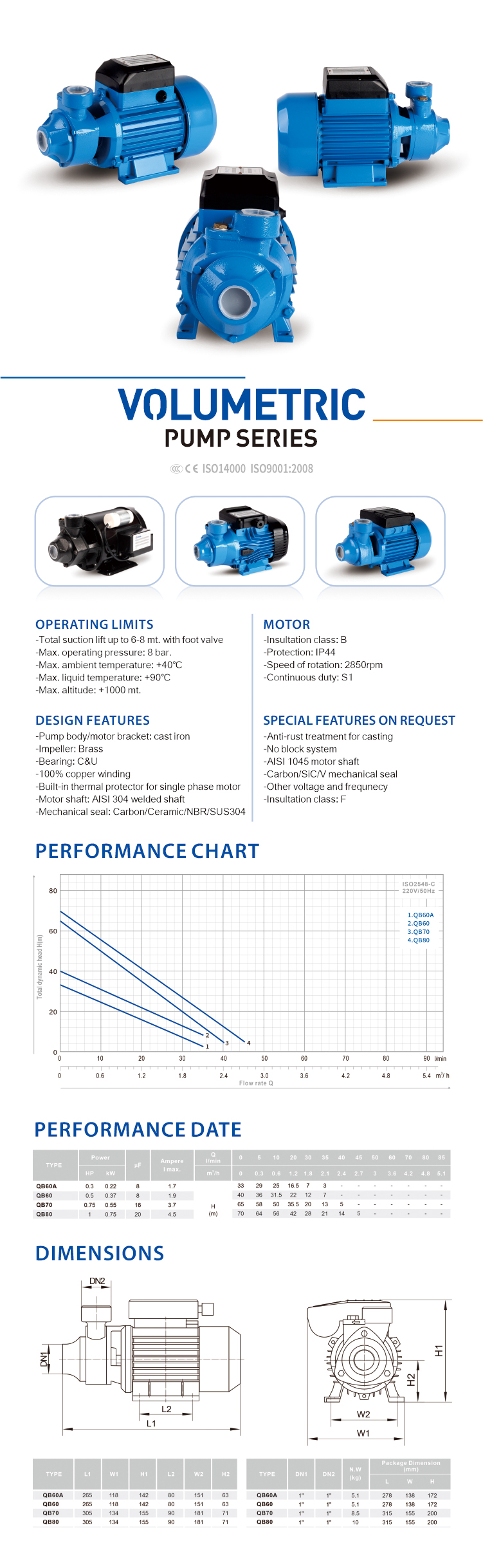

Technical Specifications
Product Overview
Domestic Clean Water Solution
This 0.5 HP vortex clean water pump is engineered for reliable domestic water transfer and pressure boosting applications. It features a robust cast iron construction with a brass impeller, ensuring durability and efficient performance in various household water systems. Designed for continuous operation, this pump is an ideal choice for home and garden irrigation or general water supply needs.
Operating Limits
- Max Suction Lift
- 8 m
- Max Operating Pressure
- 8 bar
- Max Ambient Temperature
- 40 °C
- Max Liquid Temperature
- 90 °C
Technical Specifications
- Protection Rating
- IP44
- Insulation Class
- B
- Rotation Speed
- 2850 rpm
- Duty Cycle
- S1 (Continuous)
Construction Materials
Key Components
- Cast iron pump body and motor bracket
- Brass impeller
- 100% copper winding
- AISI 304 welded motor shaft
- Carbon/Ceramic/NBR/SUS304 mechanical seal
Performance Metrics
Performance Metrics (QB60)
0.5 HP
Power
0.37 kW
Power
1.9 A
Current
Certifications & Options
Available Custom Options
Anti-rust treatmentNo block systemAISI 1045 shaftInsulation Class F
- Certifications
- CEISO 9001:2008ISO 14000
