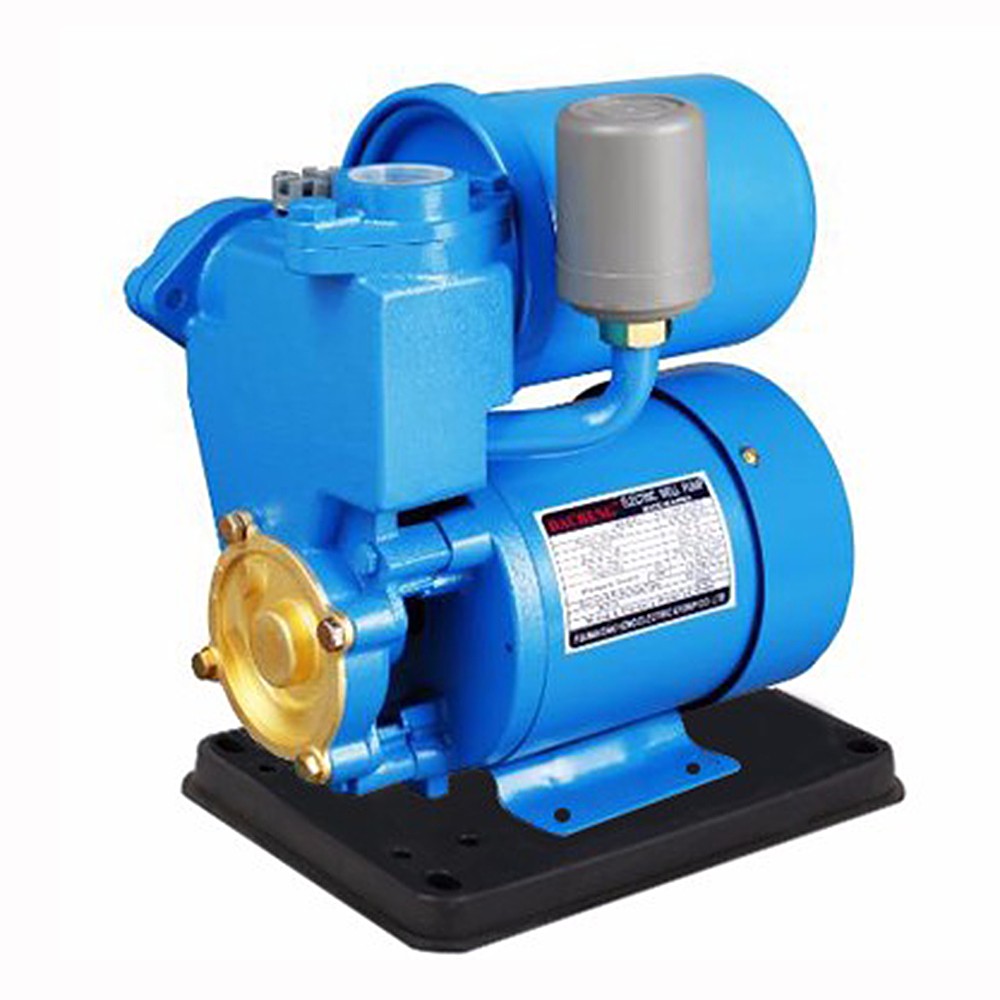

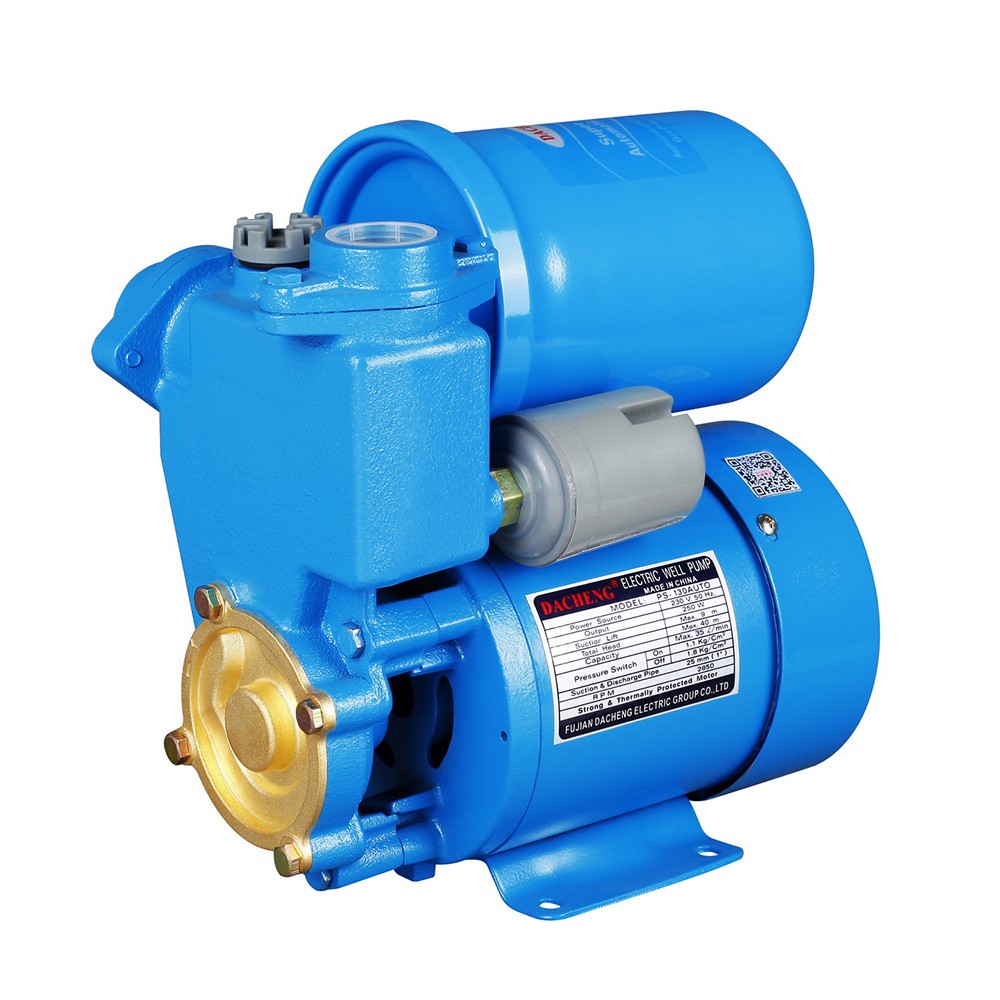

0.5 HP Automatic Electric Water Pump
This 0.5 HP automatic electric water pump is designed for efficient water transfer and pressure boosting. It is suitable for pumping water from wells, tanks, or other water sources in residential and light commercial applications.
Technical Specifications
Product Overview
Reliable Water Transfer and Pressure Boosting
This 0.5 HP automatic electric water pump is designed for efficient water transfer and consistent pressure boosting in residential and light commercial environments. Featuring a robust cast iron body and durable brass impeller, it is engineered for long-lasting performance in demanding conditions. Its integrated automatic pressure control system intelligently starts and stops the pump based on actual water demand, while thermal protection ensures durability and reliable operation.
Technical Performance
Power Output
0.5 HP
Power Rating
250 W
Motor Power
Operational Performance
| Metric | Value |
|---|---|
| Max Flow Rate | 35 L/min |
| Max Head | 40 m |
| Rotation Speed | 2850 RPM |
| Max Pressure | 1.1 kg/cm² |
| Pipe Diameter | 25 mm (1 inch) |
Design & Features
Construction Materials
- Cast iron pump body
- Brass impeller
- Thermally protected motor
- Key Features
- Automatic Pressure ControlResidential UseEasy InstallationThermal Protection
