0.5 HP Automatic Electric Water Pump
This 0.5 HP electric water pump is designed for automatic operation. It is suitable for boosting water pressure, supplying water to homes, and other general water transfer applications.
Technical Specifications
Product Overview
Professional Water Boosting Solution

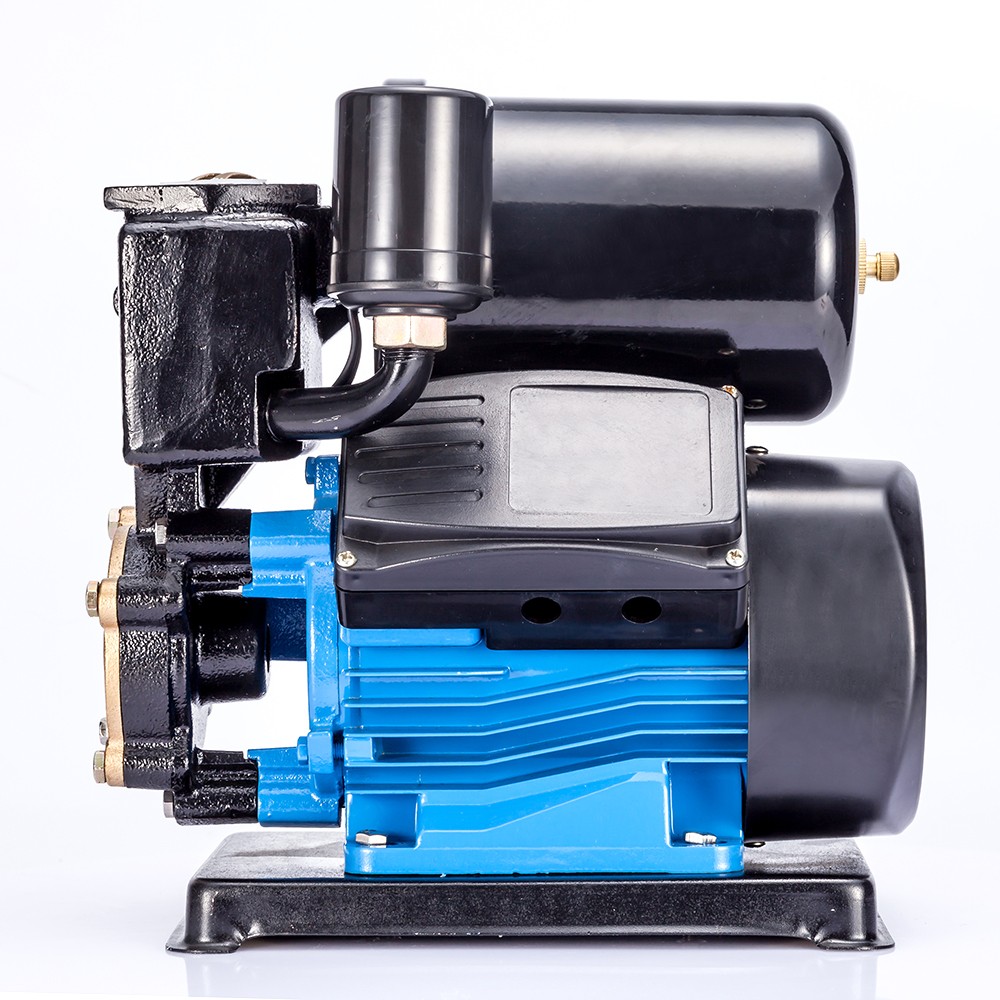

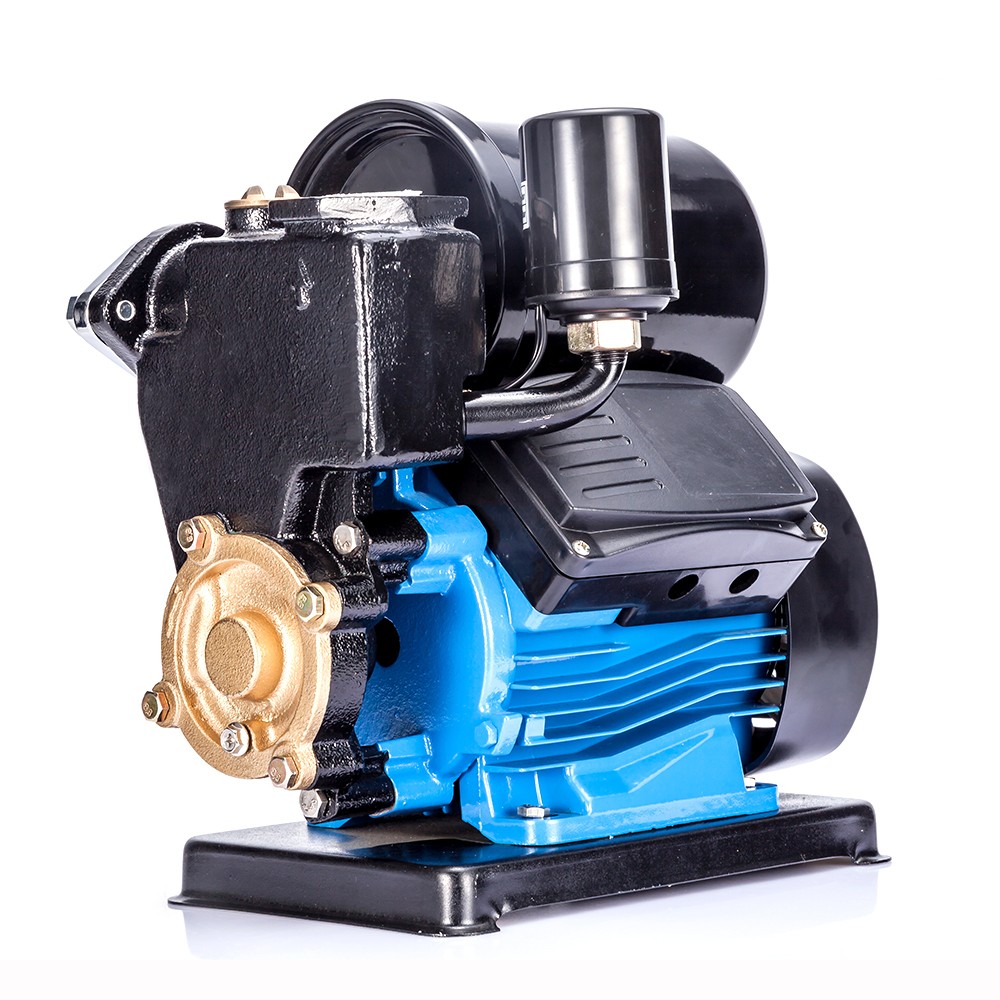

The PS150B is a high-efficiency 0.5HP automatic electric water pump engineered for reliable residential and light commercial water supply. Its robust cast iron construction and brass impeller ensure long-term durability in various fluid transfer applications. Equipped with an integrated pressure control system and thermal overload protection, it provides consistent pressure and safe, automated operation for the end-user.
Technical Specifications
Performance Overview
0.4 HP
Power Output
2.3 A
Rated Current
28 M
Max Suction
Performance Curve (Head vs Flow)
| Flow (l/min) | Head (m) |
|---|---|
| 0 | 28 |
| 10 | 18.5 |
| 15 | 13.5 |
| 20 | 9 |
| 25 | 4 |
Features
Operating Conditions
- Rotational speed: 2850 r/min
- Residential and light commercial use
- Integrated pressure control system
- Key Attributes
- Automatic Start/StopThermal Overload ProtectionCast Iron BodyBrass ImpellerSingle Phase Motor
