Technical Specifications
Product Overview
High-Efficiency Submersible Vibration Pump
This XVM series clean-water submersible pump is engineered for reliability in agricultural irrigation, mine drainage, and flood control operations. Featuring a robust aluminum body, the unit offers excellent energy efficiency, tight sealing for superior durability, and a compact design. It is ideally suited for deployment in rivers, wells, and lakes to provide consistent water flow.
Technical Specifications
Power Output
0.45 HP
Power
330 W
Power Consumption

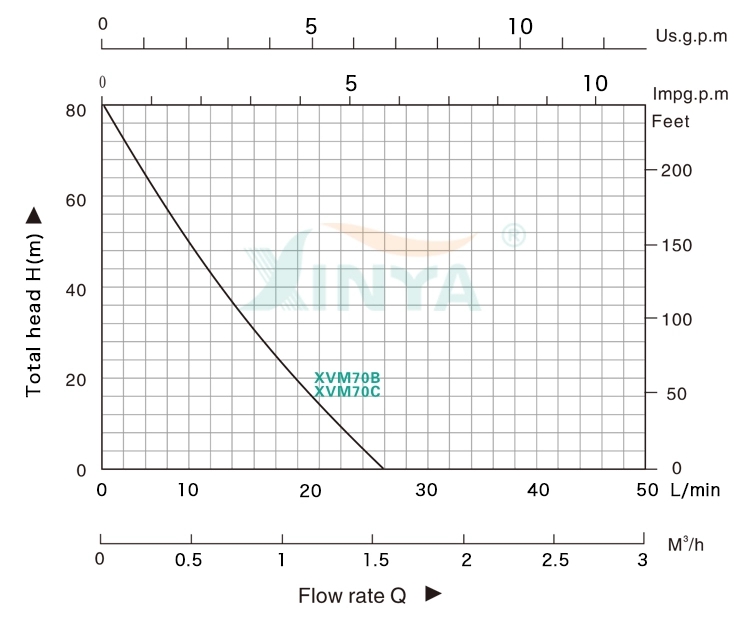

Performance
25 L/min
Max Flow Rate
80 M
Max Head
8 bar
Max Working Pressure
- Model
- XVM70B
- Electrical Requirements
- 230V / 50Hz
- Protection & Insulation
- IP 68Insulation Class B

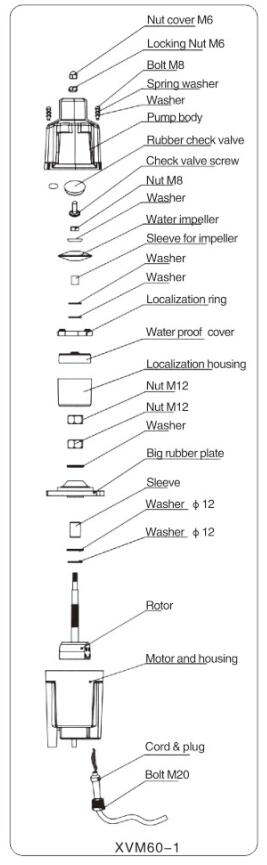

Construction & Materials
Materials Table
| Component | Material |
|---|---|
| Pump Body | Aluminum |
| Motor Body | Aluminum |
| Shaft | #45 Steel |
| Impeller | Rubber |
Operational Details
Operating Conditions
- Suitable for Clean Water
- Fluid temperature range: 1-40 °C
Physical Dimensions & Weight
- Outlet size: 3/4 inch
- Gross weight: 4.2 kg
- Packing size: 31 x 16 x 11 cm

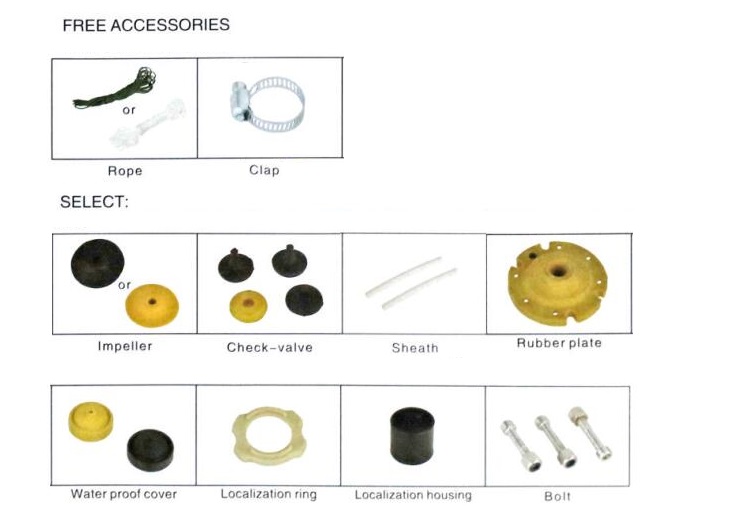

Included Accessories
1 Rope1 Clamp
