Technical Specifications
Overview
Compact Excavator Performance

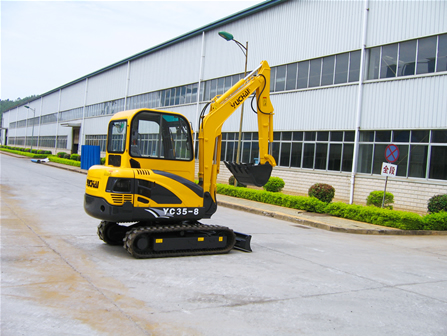

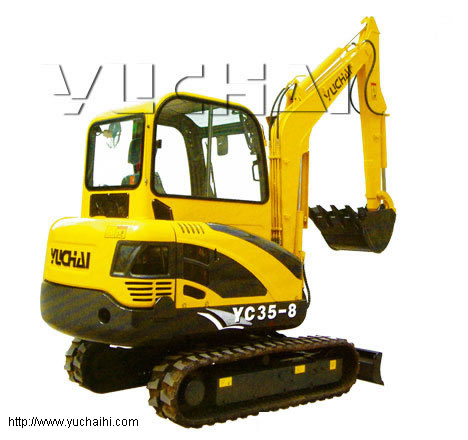

The YC35-8 is a high-performance compact excavator engineered for versatile operation in construction, landscaping, and utility environments. It combines a robust hydraulic system with a powerful digging force to ensure maximum efficiency in confined spaces. Built for reliability and durability, this machine offers exceptional maneuverability and operator comfort, making it an ideal choice for demanding urban and residential job sites.
Performance Metrics
- Maximum Digging Force
- 22.19 kN
- Maximum Traction
- 29 kN
- Maximum Gradeability
- 58 %
Hydraulic System
Variable Displacement Pump Capacity
- 20.8
- 20.8
- 7
- 3.5
- Operating Pressure
- 21 Mpa
Operational Specs
Platform Swing Speed
13 rpm
Maximum Swing Speed
- Travelling Speed Range
- 3.4 - 4.8 km/h
