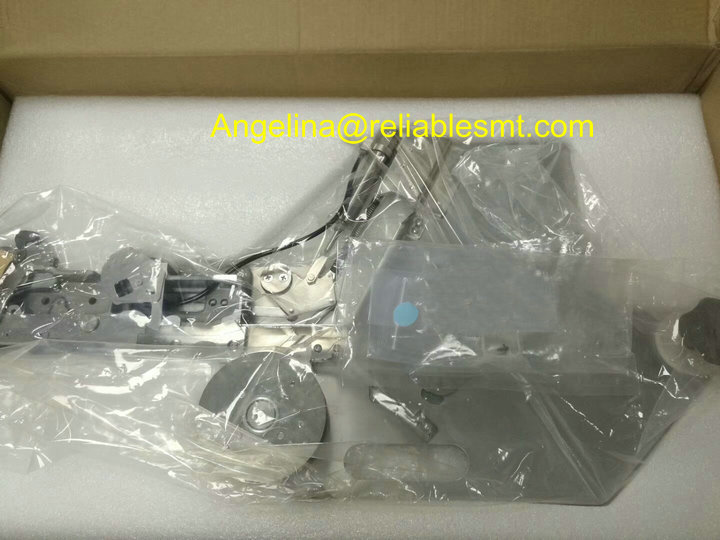

YAMAHA CL24MM SMT Feeder
This SMT feeder is designed for YAMAHA CL24MM placement machines. It accurately delivers electronic components to the pick-and-place head for precise placement on PCBs.
Technical Specifications
Product Overview
Precision SMT Component Feeder
This high-precision SMT feeder is designed for automated pick-and-place assembly lines. It ensures the accurate and reliable presentation of electronic components to the placement head, minimizing downtime and supporting high-speed production environments. Built with quality assurance in mind, this unit is supplied in original new condition.
Condition
OriginalNew
Technical Specifications
- Model Number
- KW1-M4500-015
- Feeder Type
- CL24MM
Component Breakdown
Key Internal Components
| Part Name | Part Number |
|---|---|
| Sub Lever Assy | KW1-M452U-000 |
| Body Assy | KW1-M5510-000 |
| Coil Spring | KW1-M452D-000 |
| Stopper Pin | KW1-M221F-100 |
| Back Stopper Axis | K87-M211B-000 |
| Main Arm | KW1-M4577-000 |
| Bearing | KW1-M552F-000 |
