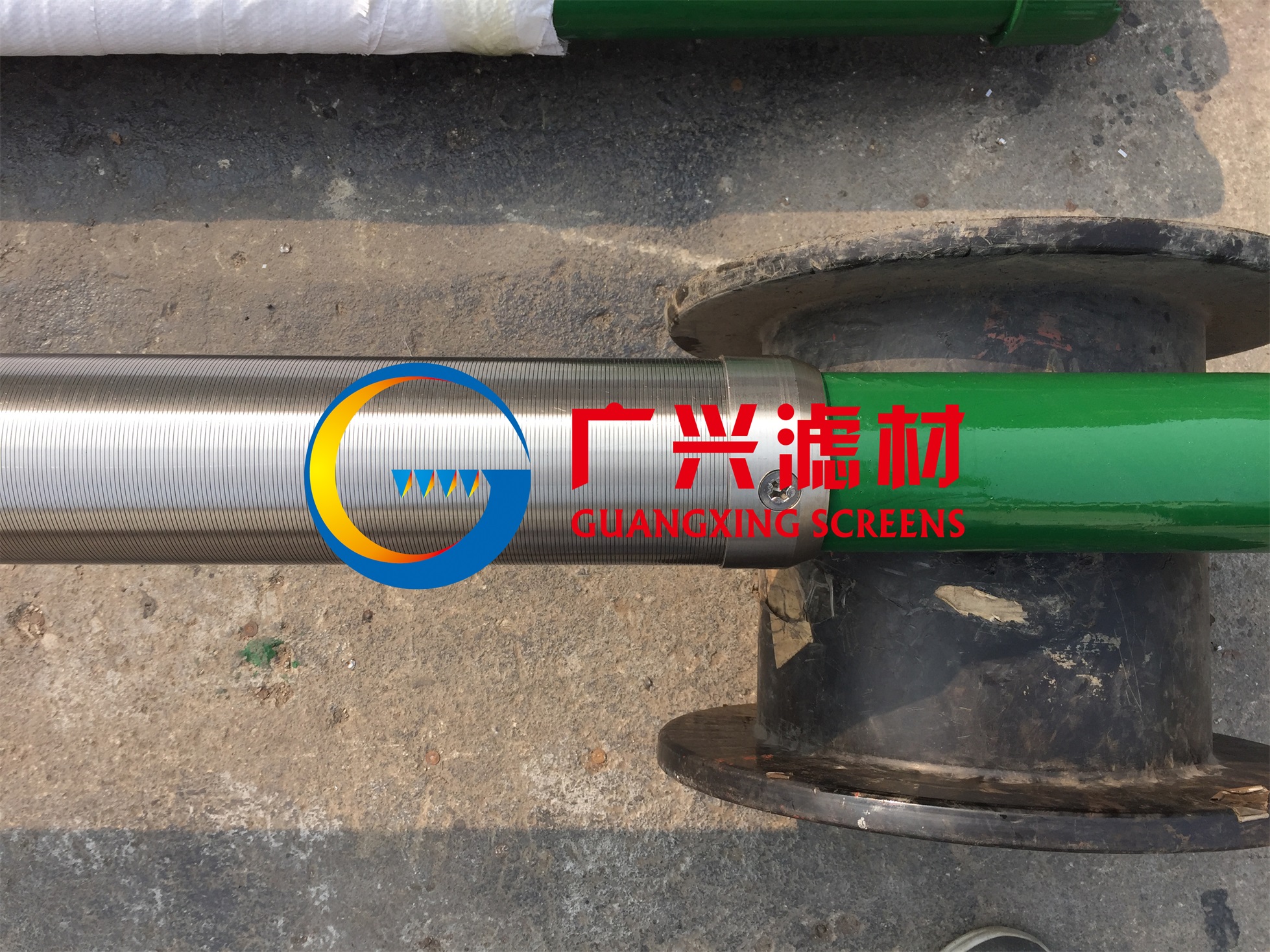

Wire Wrap Sand Control Screen
This wire wrap sand screen is designed to filter oil and gas, effectively removing mechanical solid impurities as small as 50 μm. As a popular filtration solution for wells, it ensures the purity and quality of extracted resources.
Technical Specifications
Product Overview
High-Efficiency Sand Control Solution
The wire wrap sand screen is a precision-engineered filtration solution designed to effectively filter oil and gas from mechanical solid impurities as small as 50 μm. It consists of a robust perforated base tube combined with a stainless steel Johnson wedge wire screen featuring a high-precision V-shaped profile. This design ensures structural integrity through cross-point welding and allows for optimized sand control based on specific granulometric analysis.
Technical Specifications
Minimum Filterable Particle
50 μm
Minimum Impurity Size
Installation Technology
- Perforated base tube support
- Welded wedge wire structure
- Optional fluid inflow protection caps
- Removable caps via cutting or acid treatment
- Material Composition
- Stainless SteelV-Shaped Profile Wire
Applications
Primary Applications
Oil Well FiltrationGas Well FiltrationMechanical Impurity Control
