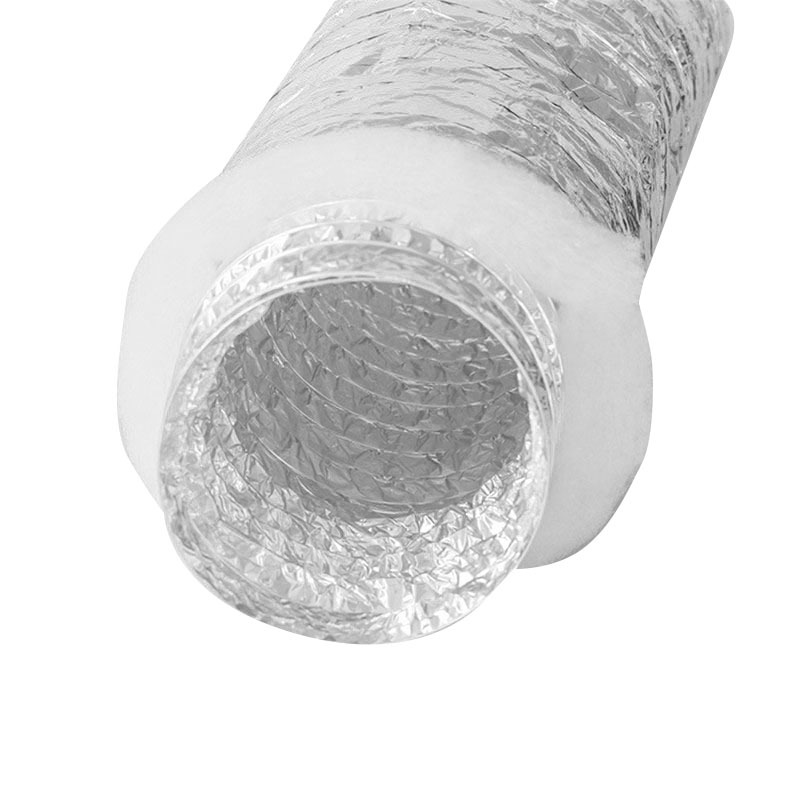

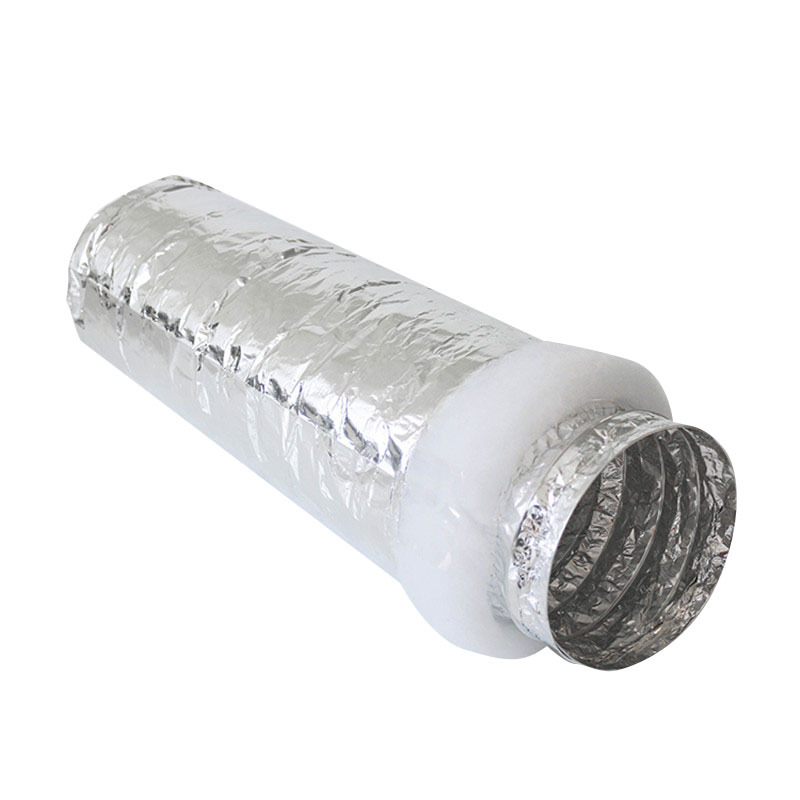

White PE Polyester Insulated Flexible Air Duct
This flexible air duct requires no special tools for cutting or fixing and is fully retardant and compressible. It is robust, durable, and lightweight.
Technical Specifications
Product Overview
High-Performance Insulated Flexible Ducting
This White PE Polyester Insulated Flexible Air Duct is engineered for optimal thermal and acoustic performance in HVAC systems. Featuring a durable PE outer jacket and high-density insulation, it effectively minimizes heat loss and reduces noise transmission. Its flexible design allows for seamless installation in both residential and commercial air conditioning ventilation networks.
Technical Specifications
Insulation Properties
25 mm
Thickness
16 kg/m3
Density
Operating Limits
| Parameter | Value |
|---|---|
| Operating Pressure | 3000 Pa |
| Max Air Velocity | 30 m/s |
| Temperature Range | -30°C to +150°C |
Construction Materials
- Outer Jacket: 1 layer aluminum + 1 layer PET Polyester
- Inner Duct: Aluminum + polyester + aluminum or aluminum + polyester
- Insulation: Environmental protection cotton
Dimensions & Compatibility
- Available Diameters
- 75mm - 750mm (3.5" - 30")
- Standard Lengths
- 5m6m7.5m10m
Compliance & Safety
Fire Resistance
Limited combustibility
