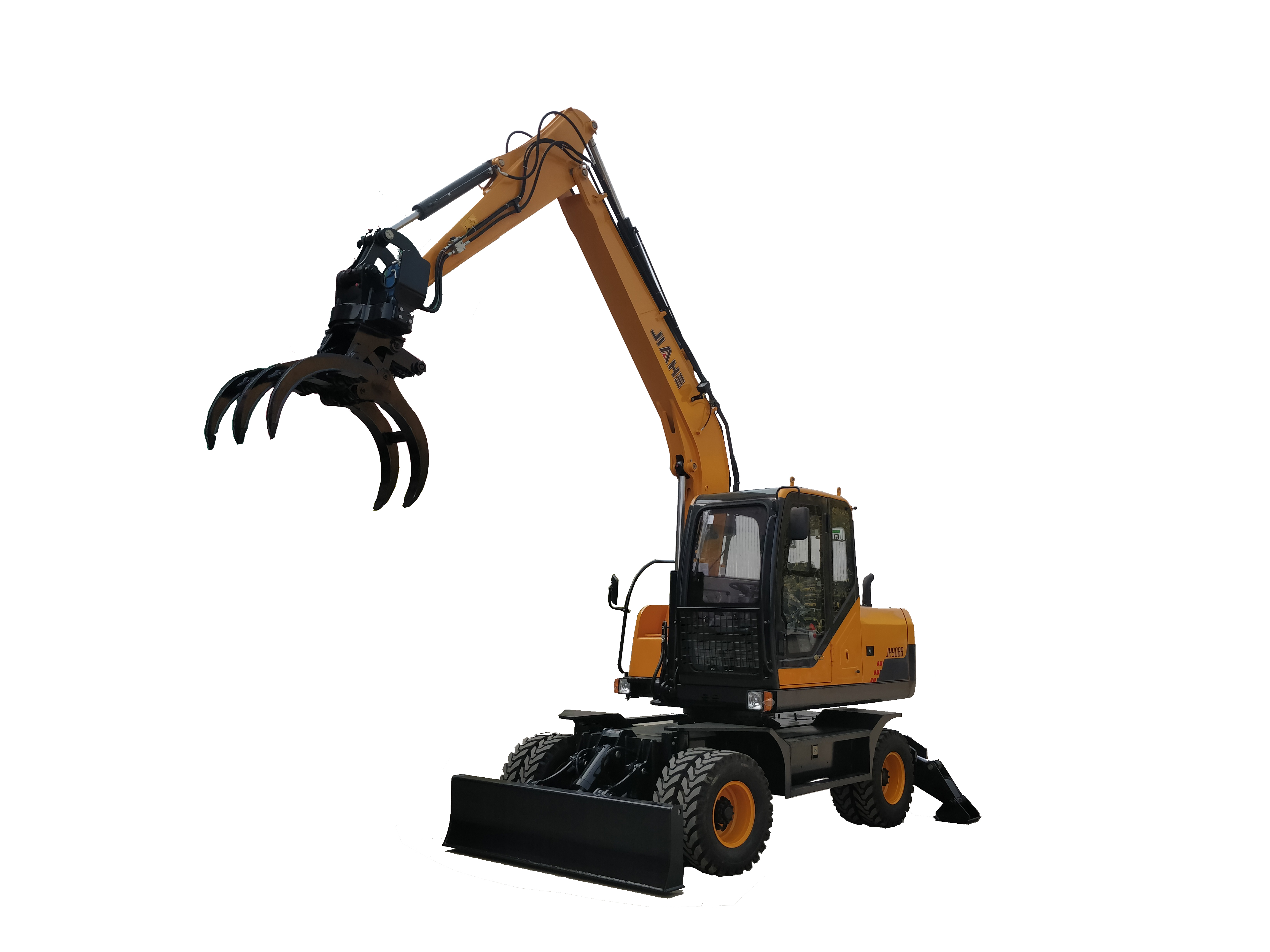

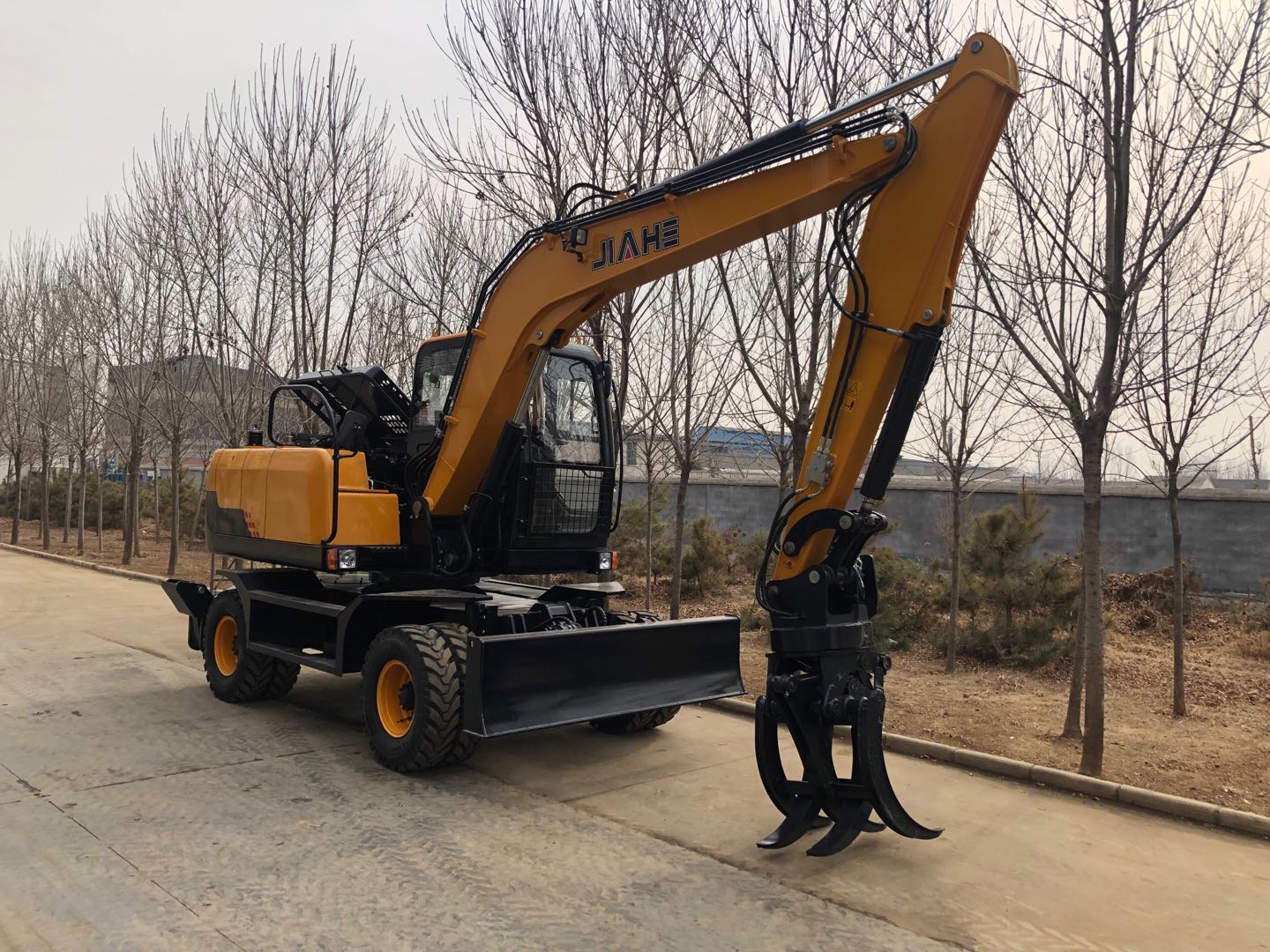

Wheeled Excavator with Wood Grapple
The wheeled excavator is designed for material handling and excavation, particularly in forestry and logging. Its wood grapple attachment enables efficient and secure handling of logs and timber.
Technical Specifications
Overview
High-Performance Material Handler
This wheeled excavator is specifically engineered for professional material handling, featuring a specialized wood grapple attachment for efficient timber operations. Its high-mobility wheeled undercarriage allows for rapid transit across diverse job sites, while the robust hydraulic system ensures precise control over log handling. Designed for durability and performance, this machine provides the power and flexibility required for demanding forestry and construction tasks.
Performance Metrics
Operational Performance
28 km/H
Traveling Speed
11 r/min
Max Swing Speed
20 °
Gradeability
Grapple Specifications
Grapple Handling Capabilities
| Metric | Value |
|---|---|
| Max Height | 8200 mm |
| Max Dumping Height | 5750 mm |
| Max Opening | 1200 mm |
| Min Opening | 150 mm |
| Weight | 600 kg |
Physical Dimensions
Machine Dimensions
| Parameter | Dimension |
|---|---|
| Length | 7070 mm |
| Width | 2205 mm |
| Height | 2850 mm |
| Ground Clearance | 260 mm |
| Tail Swing Radius | 2000 mm |
Capacity and Design
Fluid Capacities
- Fuel Tank Capacity: 120 L
- Hydraulic Oil Capacity: 90 L
- Tire Configuration
- 8.25-16
