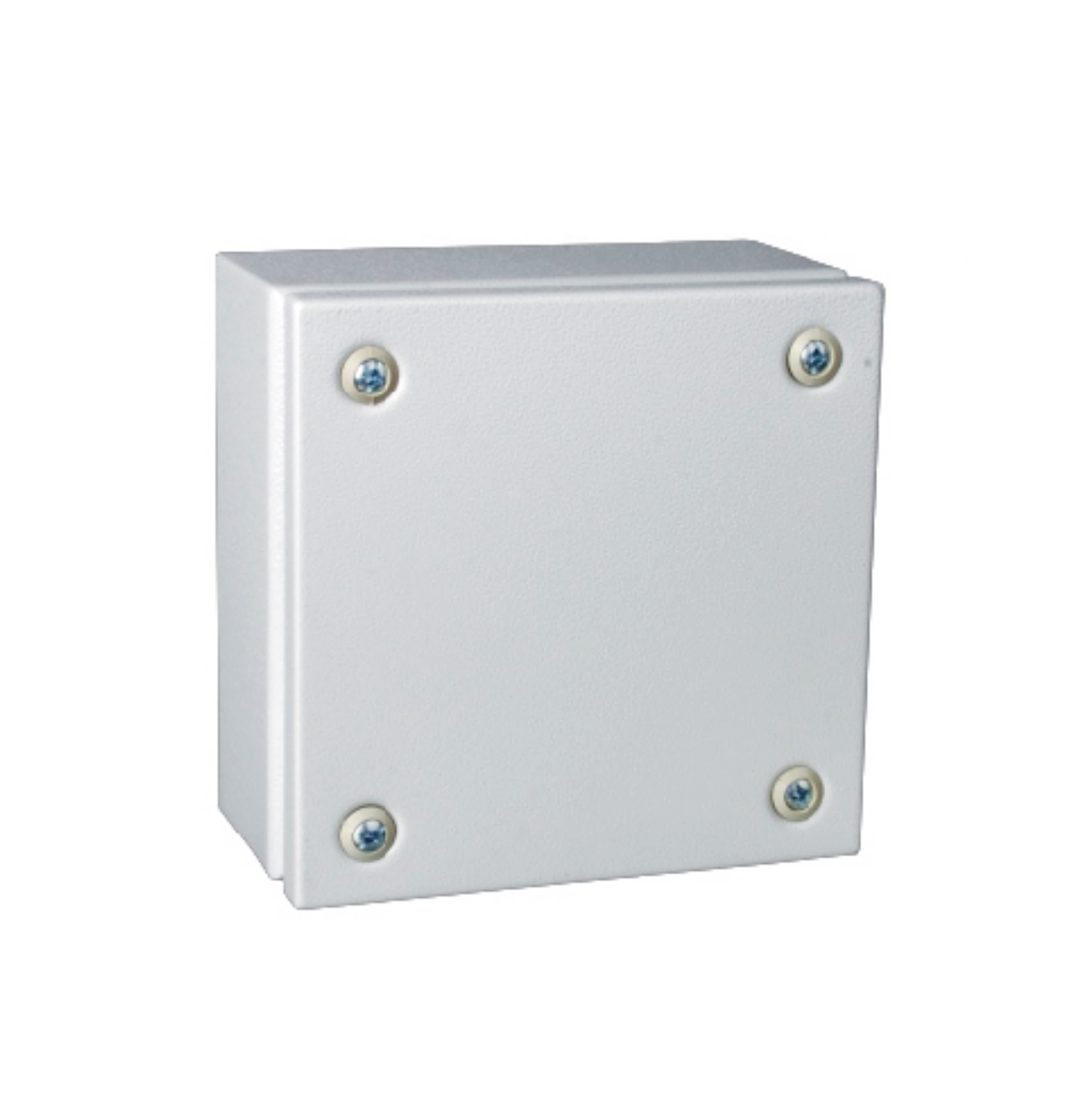

Weatherproof Electrical Terminal Box
This IP66 terminal box is designed to protect electrical connections from dust, water, and corrosion. Its secure, gasketed lid and internal mounting points ensure easy installation and reliable performance.
Technical Specifications
Product Overview
Industrial Weatherproof Protection
This mild steel terminal box is engineered for robust industrial applications, providing reliable protection against environmental hazards. Featuring an IP66 protection degree, it effectively seals against dust and water ingress, making it suitable for both indoor and outdoor installations. The unit includes a foamed polyurethane gasket and captive screws to ensure a secure, long-lasting seal for your electrical connections.
Technical Specifications
Protection Degree
IP66
Material
- Body: Mild steel
- Mounting plate: Galvanized steel
- Standards
- IEC 60529
Dimensions & Build
Sheet Thickness
1.2 mm
Body
2 mm
Mounting Plate
- Standard Dimensions
- H250 x W150 x D80 mm
- Color/Finish
- RAL7035 (Textured)
Features
Key Features
- Foamed polyurethane gasket on all four sides
- Earthing studs on door and body
- 4 captive screws on door
Availability
- Available Size Range
- H150xW150xD80mm to H400xW200xD120mm; custom sizes available upon request.
