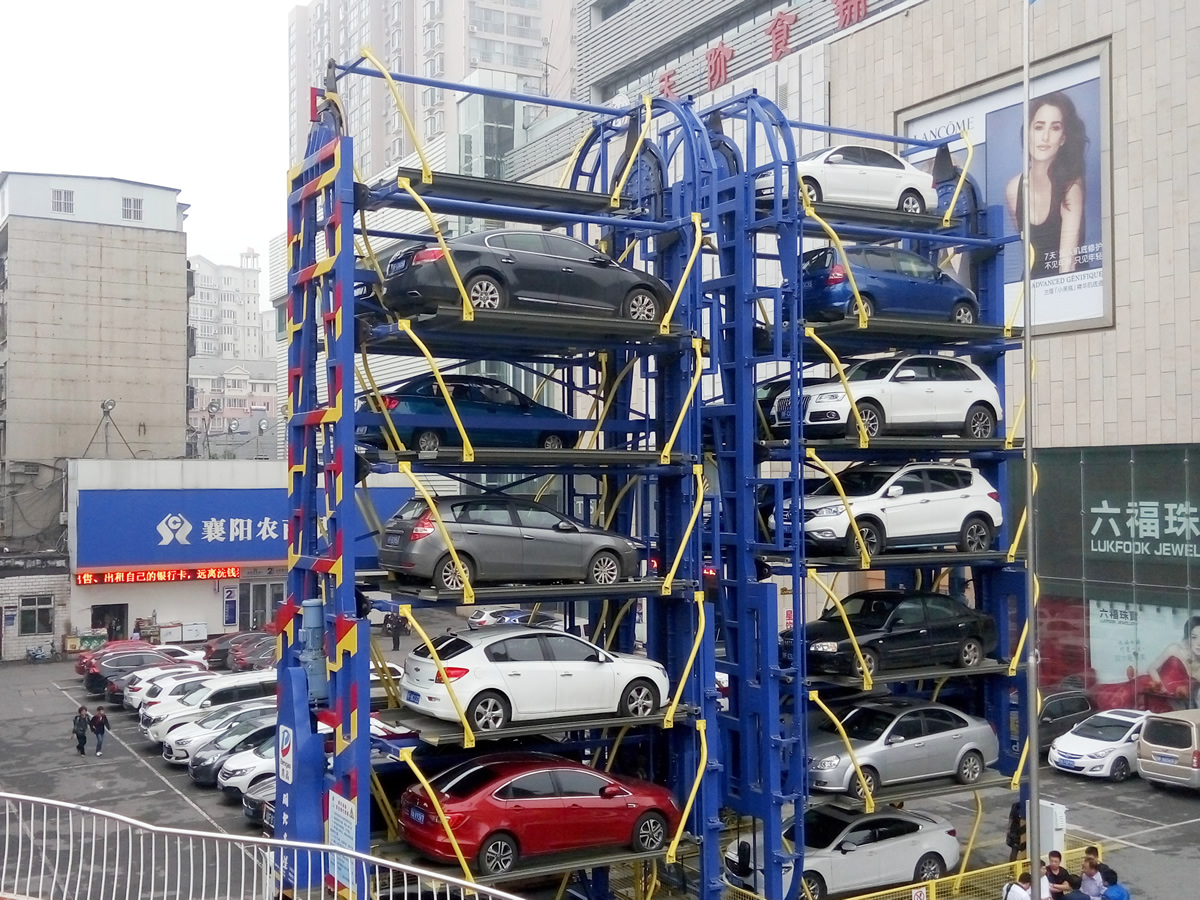

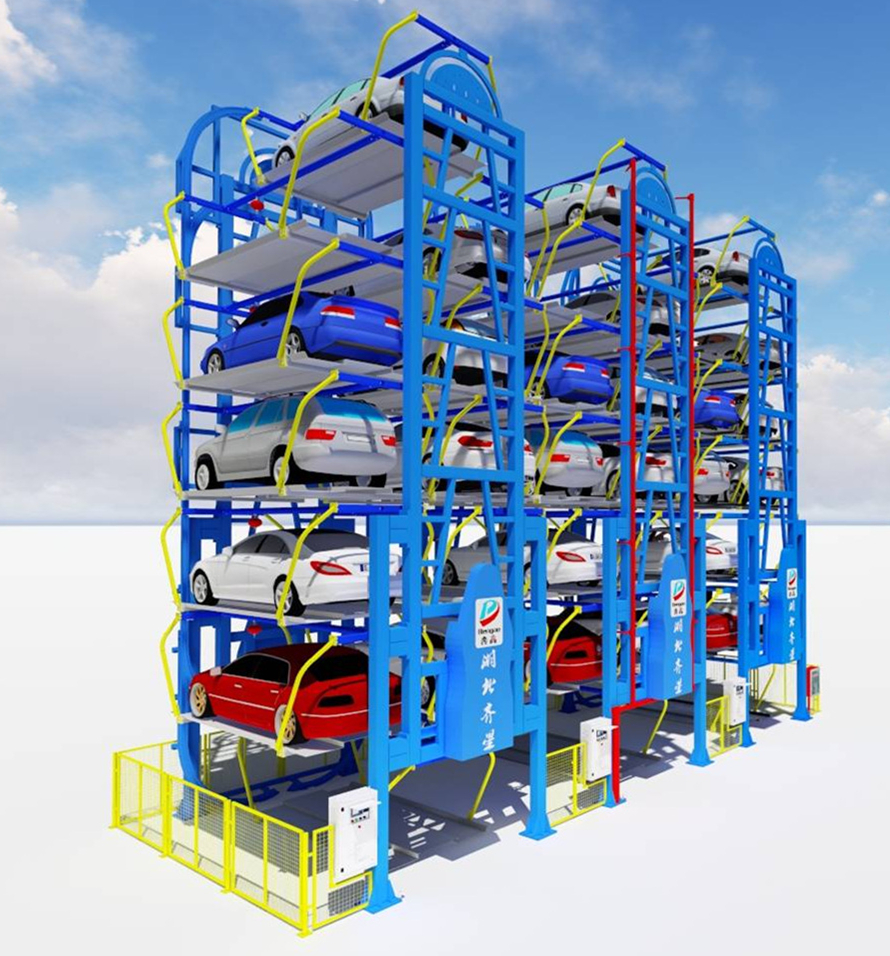

Vertical Rotary Car Parking System
This automated system utilizes a rotating mechanism to lift and store cars vertically. Constructed from heavy-duty steel, it maximizes parking capacity in a minimal footprint and is ideal for urban areas.
Technical Specifications
System Overview
Efficient Urban Parking Solution
This vertical rotary parking system is designed to maximize vehicle storage capacity in high-density urban environments. By utilizing a high-efficiency rotating mechanism, the system can house up to 12 vehicles within a compact land footprint. Engineered with safety as a priority, it features automated detection systems, robust steel construction, and reliable control technology to ensure stable and secure operation for commercial and residential applications.
- Certifications
- CEISO9001
Technical Specifications
Performance Metrics
12 cars
Capacity
90 sec
Max Retrieval Time
65 db
Noise Level
2,000 kg
Max Vehicle Weight
Physical Dimensions
| Item | L x W x H (Meters) |
|---|---|
| Installation Footprint | 7.0 x 5.3 |
| Equipment Size | 7.30 x 5.24 x 14.5 |
| Max Vehicle Size | 5.20 x 2.20 x 1.75 |
Drive & Power System
- Drive Mode: Engine + Chain Transmission
- Engine Power: 11 KW
- Voltage: 380 V / 50 HZ
- Control System: PLC with Touch Screen/IC Card
Construction & Safety
Safety Protections
- Vehicle anti-falling protection
- Power anti-overloaded device
- Automated size/mis-entry detection system
- Structural Details
- Q345 Steel, 8mm thickness, 220mm x 220mm column dimensions
