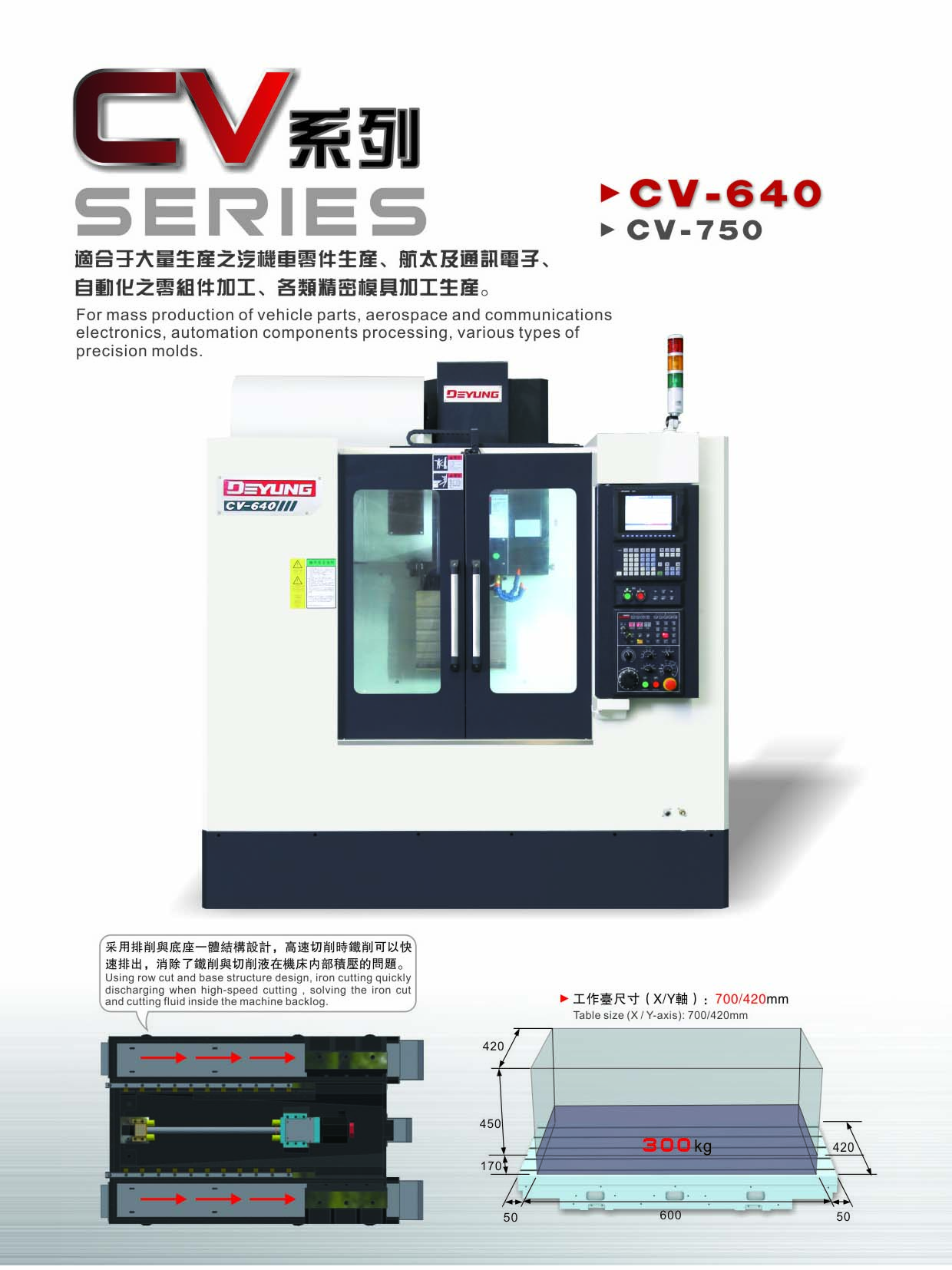

Vertical Machining Center
This vertical machining center is designed for mass production in industries such as automotive, aerospace, and electronics. It features a direct drive spindle, rapid feed rates, and a three-axis rail system for efficient material processing.
Technical Specifications
Overview
High-Efficiency Vertical Machining Centers
The CV series vertical machining centers are engineered for high-speed mass production, catering to automotive, aerospace, communications electronics, and precision mold industries. Featuring a robust integrated base design, these machines ensure rapid chip discharge to maintain a clean internal environment. Equipped with high-speed direct-drive spindles and a non-counterweight Z-axis design, they excel in fast drilling, milling, and tapping operations while minimizing non-processing time.
Performance Metrics
Key Operational Metrics
12,000 rpm
Spindle Speed
48 m/min
Rapid Feed Rate
300 kg
Table Load Capacity
Technical Specifications
Axis Travel Comparison
| Model | X-Axis (mm) | Y-Axis (mm) | Z-Axis (mm) |
|---|---|---|---|
| CV-640 | 600 | 420 | 450 |
| CV-750 | 750 | 420 | 450 |
Axis Rail Configuration
- X-Axis: Ball rail
- Y-Axis: Ball rail
- Z-Axis: Roller rail
Applications
- Suitable Industries
- AutomotiveAerospaceCommunications ElectronicsAutomation ComponentsPrecision Molds
Design Features
Design Advantages
Direct drive spindleNo counterweight Z-axisIntegrated base for chip dischargeLow vibrationBacklash-free transmission
