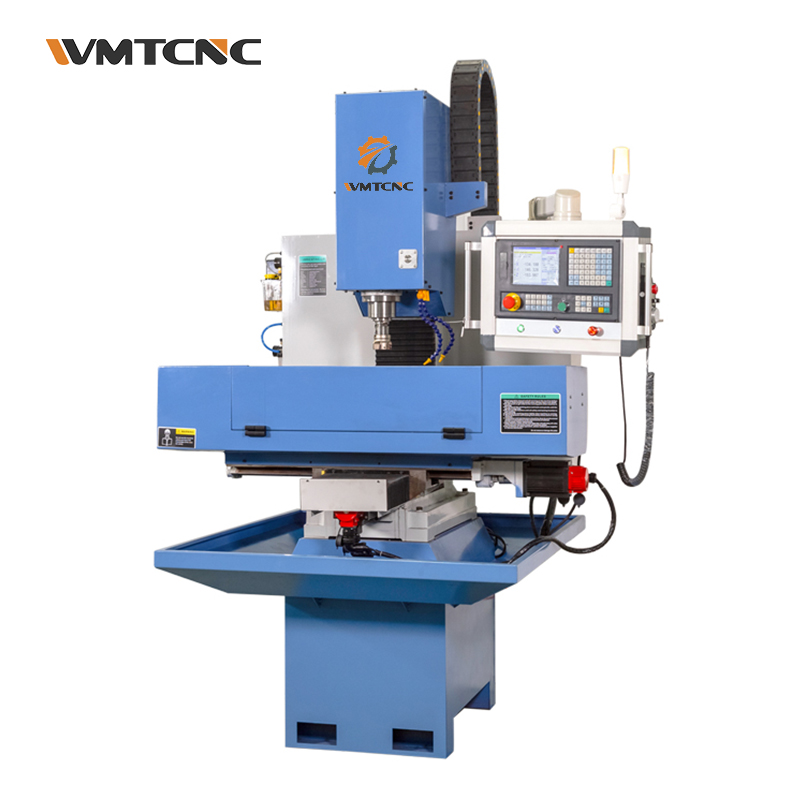

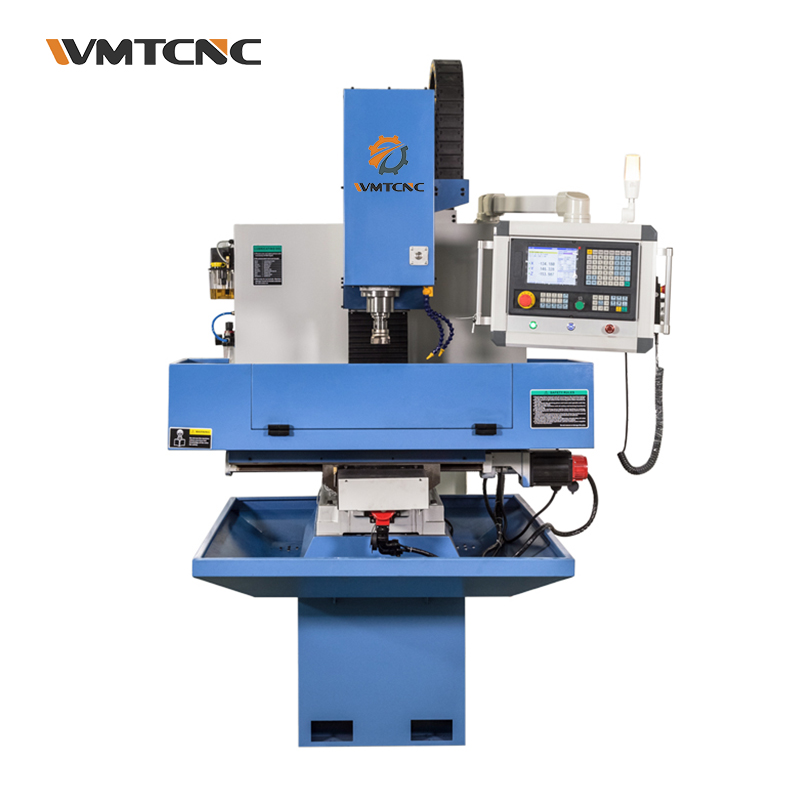

Vertical CNC Milling Machine
This vertical CNC milling machine is designed for drilling, tapping, chamfering, bearing, and milling operations. Its spindle frame increases stability and stiffness.
Technical Specifications
Overview
Versatile Vertical CNC Milling Machine
The XK7124 is a compact vertical CNC milling machine designed for high-precision operations including drilling, tapping, and face milling. It features a robust spindle frame integrated into the lathe pedestal to maximize stability and stiffness during heavy-duty tasks. With its elegant modeling and high-efficiency automatic knife changing system, it provides a reliable solution for precision manufacturing and prototyping.
Key Performance Metrics
Performance Highlights
6,000 rpm
Max Spindle Speed
3.7 kw
Main Motor Power
10 m/min
Rapid Feed (X/Y/Z)
Worktable & Travel
- Worktable Size
- 800 x 240 mm
- X-Axis Travel
- 425 mm
- Y-Axis Travel
- 245 mm
- Z-Axis Travel
- 530 mm
Spindle System
- Spindle Taper
- BT30
- Spindle Nose to Table Distance
- 105 - 635 mm
Functional Capabilities
System Features
- Automatic tool changer for high efficiency
- Integrated coolant system for thermal management
- User-friendly CNC control panel
- Rigid frame construction for enhanced stability
- Machining Functions
- DrillingTappingChamferingBearingMilling Face ThreadHandle and Tower
Physical Specifications
- Machine Weight
- 600 kg / 750 kg
- Dimensions (LxWxH)
- 1540x1300x1960 mm / 1730x1330x2060 mm
Compliance
Certifications
CE Certified
