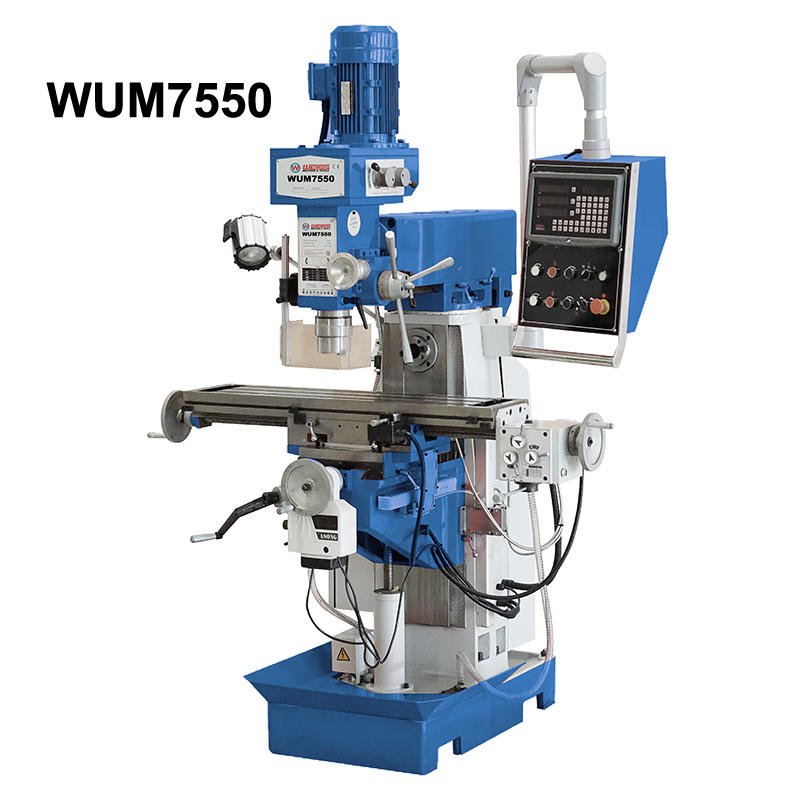

Vertical and Horizontal Milling Machine
This versatile milling machine combines vertical and horizontal milling capabilities in one robust unit. It features a powerful motor for efficient material removal and precise machining.
Technical Specifications
Product Overview
Versatile Milling Performance
This versatile milling machine offers both vertical and horizontal machining capabilities within a single, robust frame. Designed for high precision, it features a powerful motor, stable construction, and a user-friendly control panel ideal for toolmaking, mold making, and general machining. The system supports two drive configurations to suit specific production requirements.
Technical Specifications
- Table Size
- 800 x 240 mm
- Net Weight
- 970 kg
- Overall Dimensions
- 1290 x 1220 x 2100 mm
Performance Metrics
Key Performance Metrics
360 mm
Knee Travel
550 mm
Ram Travel
Spindle Configuration
| Feature | Vertical Spindle | Horizontal Spindle |
|---|---|---|
| Taper | ISO40 | ISO40 |
| Speed Range (rpm) | 220-2400 | 60-1350 |
| Motor Power (kW) | 0.85/1.5 | 1.5 |
Operation Options
- Drive Models
- Belt DriveGear Drive
