Technical Specifications
Product Overview

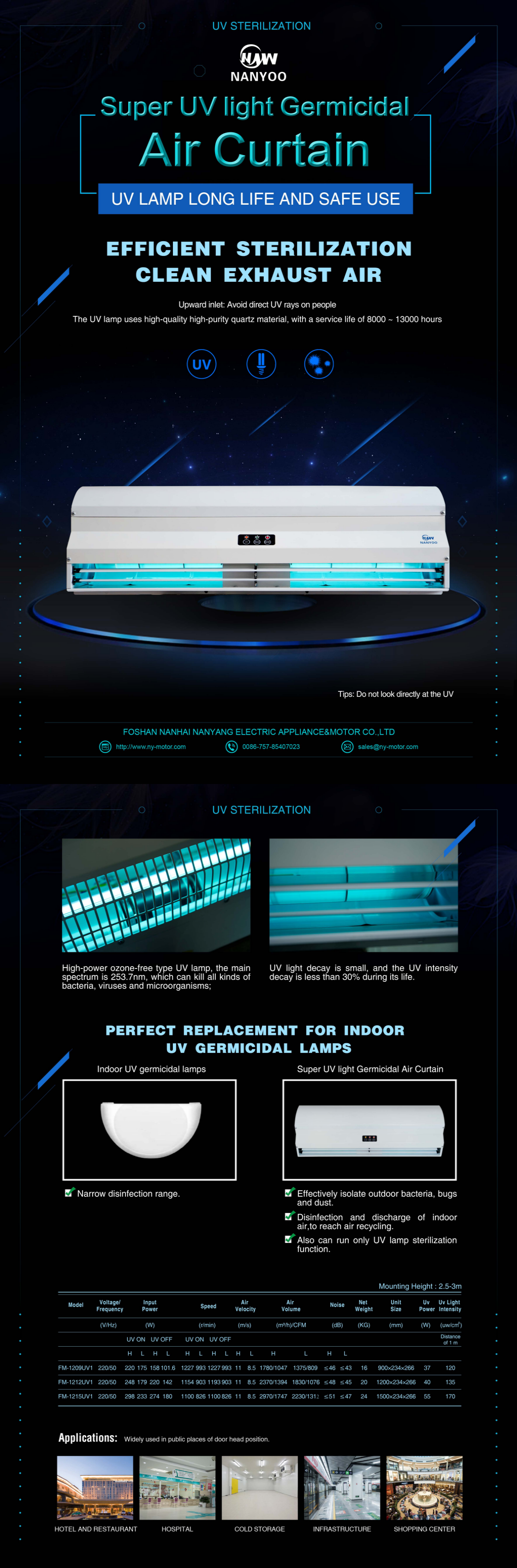

Professional UV Germicidal Air Curtain
The UV Germicidal Air Curtain creates an invisible barrier that effectively prevents the intrusion of insects, dust, and pollutants while simultaneously disinfecting indoor air. Designed for high-traffic environments, it utilizes high-purity quartz UV lamps that emit a 253.7nm spectrum to neutralize airborne bacteria and viruses. With adjustable airflow and sterilization intensity, this unit provides a reliable, ozone-free solution for improving hygiene in commercial and industrial settings.
Key Features
- Highlights
- Ozone-free UV Lamp8000-13000h Lamp LifeUpward Inlet DesignAdjustable AirflowEasy Installation
Performance Data
Performance Metrics
| Model | Power (W) | Speed (r/min) | Air Volume (m³/h) | Noise (dB) |
|---|---|---|---|---|
| FM-1209UV1 | 220/175 | 1227/993 | 1780/1047 | ≤46/≤43 |
| FM-1212UV1 | 248/179 | 1154/903 | 2370/1394 | ≤48/≤45 |
| FM-1215UV1 | 298/233 | 1100/826 | 2970/1747 | ≤51/≤47 |
Technical Specifications
UV Technical Data
253.7 nm
UV Spectrum
30 %
UV Light Decay
3 m
Max Mounting Height
Applications
Recommended Applications
- Hotels and Restaurants
- Hospitals
- Cold Storage Facilities
- Infrastructure Projects
- Shopping Centers
