Technical Specifications
Product Overview

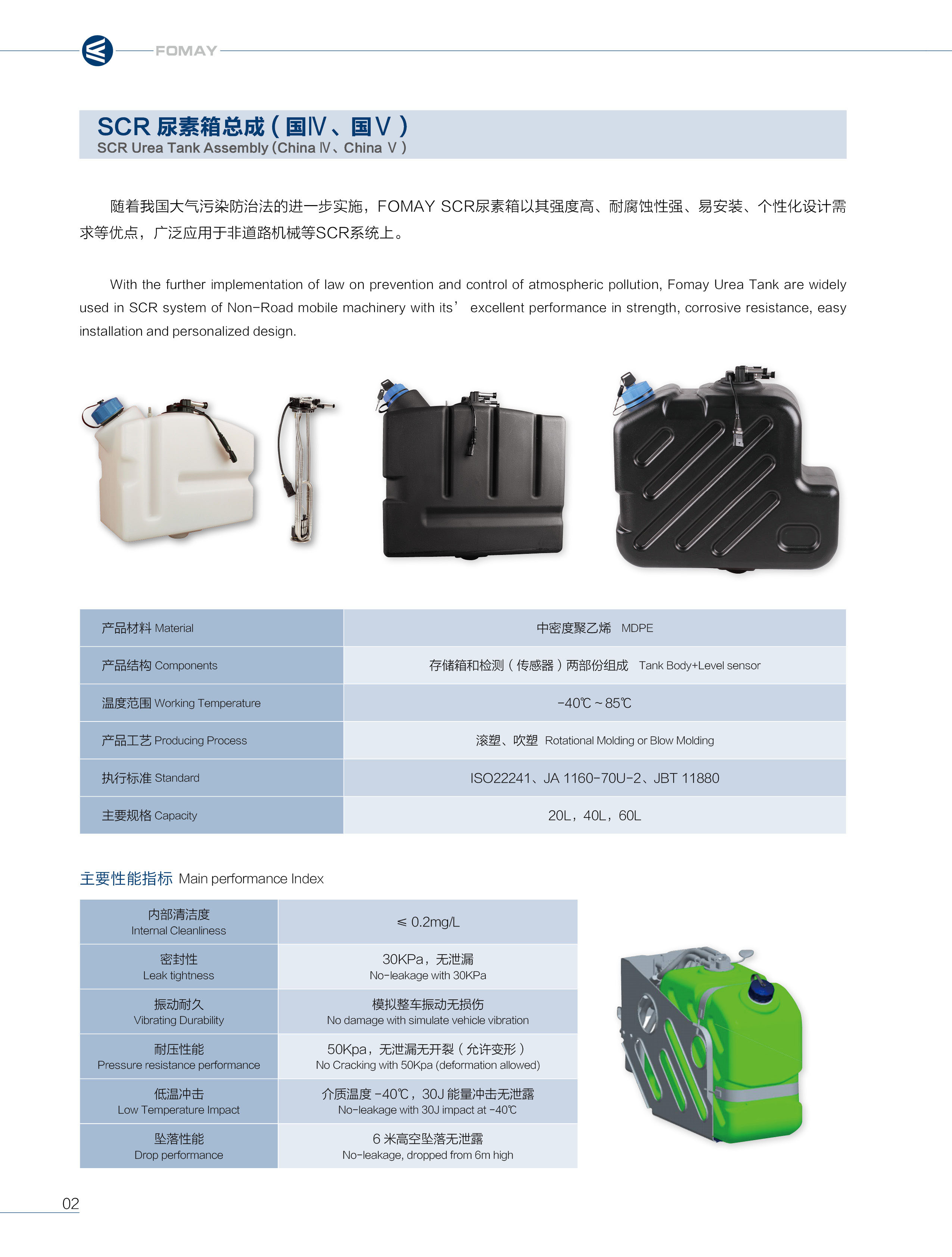

High-Performance SCR Urea Tank Assembly
Designed for demanding non-road mobile machinery, this urea tank assembly provides robust performance in complex SCR systems. Engineered for durability, it offers exceptional resistance to corrosion and physical stress while maintaining a user-friendly, modular design. Compliance with international standards ensures reliable emission control performance under diverse operating conditions.
Technical Specifications
Assembly Components
- Tank Body
- Level Sensor
- Construction Material
- Medium Density Polyethylene (MDPE)
- Manufacturing Process
- Rotational MoldingBlow Molding
- Temperature Range
- -40°C to 85°C
Performance Metrics
Key Performance Indices
| Test Parameter | Requirement / Standard |
|---|---|
| Internal Cleanliness | ≤ 0.2 mg/L |
| Leak Tightness | 30 KPa |
| Pressure Resistance | No cracking at 50 KPa |
| Drop Performance | No leakage at 6m drop |
| Low Temp Impact | No leakage at -40°C with 30J |
Compliance and Logistics
Available Capacities
20L40L60L
- Regulatory Standards
- ISO22241JA 1160-70U-2JBT 11880
