UPS Remote Monitoring System
This system collects operational parameters from power equipment and transmits them wirelessly to a cloud platform. It allows users to monitor device status in real time and receive alerts via mobile app, SMS, and email.
Technical Specifications
System Overview
Intelligent UPS Monitoring Solution

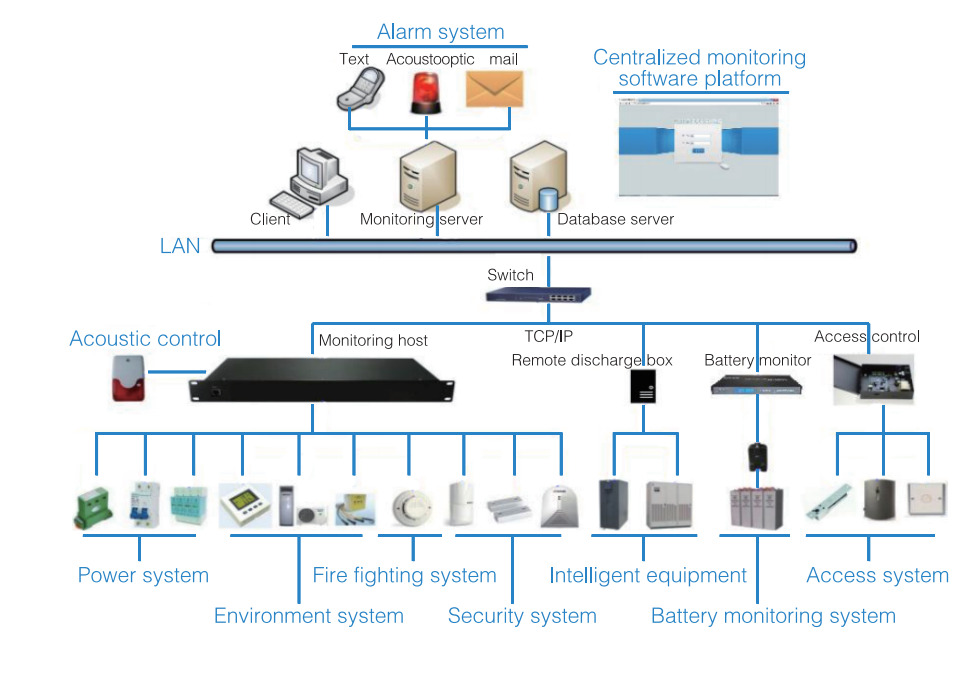

This comprehensive monitoring system is designed to provide 7x24 hour real-time oversight for critical power infrastructure and environmental conditions. By integrating data acquisition terminals with a robust cloud platform, it ensures seamless connectivity for remote management of UPS units, fire safety, and security systems. The architecture supports multi-platform access, allowing facility managers to monitor operations and receive instant alerts via mobile app, SMS, or email.
- Monitoring Scope
- Power SystemsEnvironment SystemsFire Fighting SystemsSecurity SystemsAccess ControlBattery Monitoring

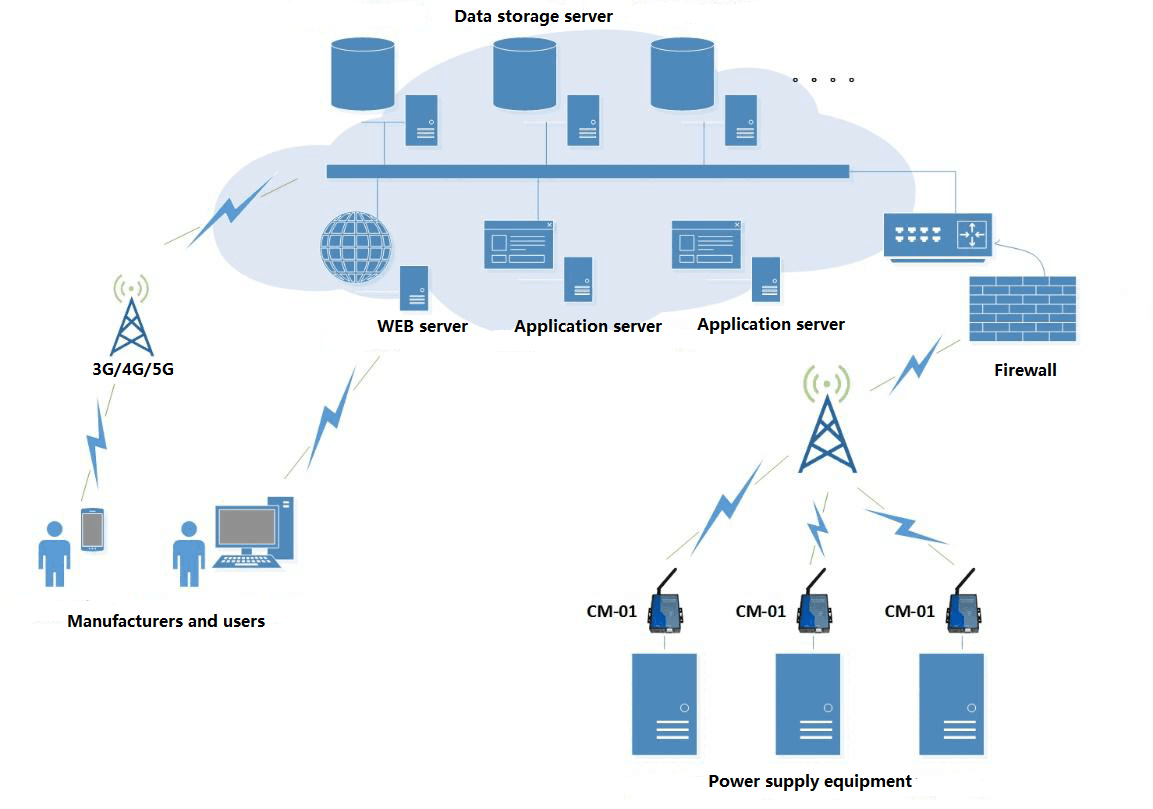

System Architecture
System Components
- Data Acquisition Terminals
- Monitoring Host
- Database Server
- Web & Application Servers
- Firewall
- Acoustic Control Module
- Network Connectivity
- LANWireless3G/4G/5G
Alarm & Notification
Notification Methods
Mobile AppSMSEmailAcousto-optic AlarmText Notification
Performance Metrics
Operational Availability
24 hours/day
Monitoring Coverage
7 days/week
Monitoring Frequency
