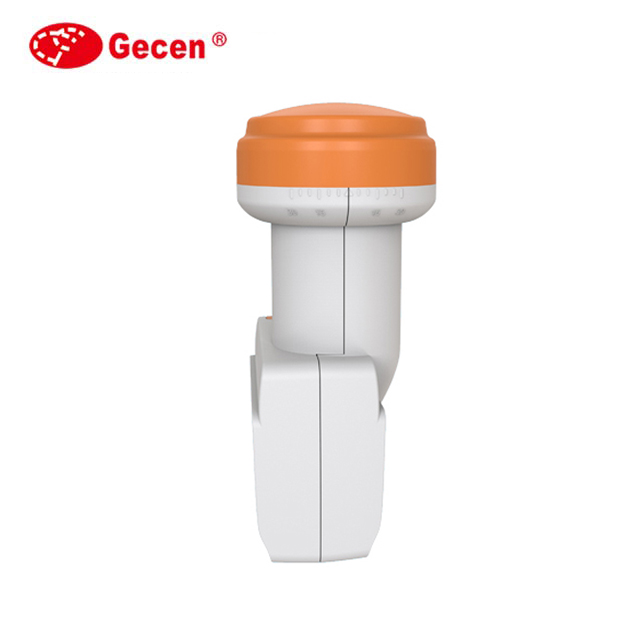

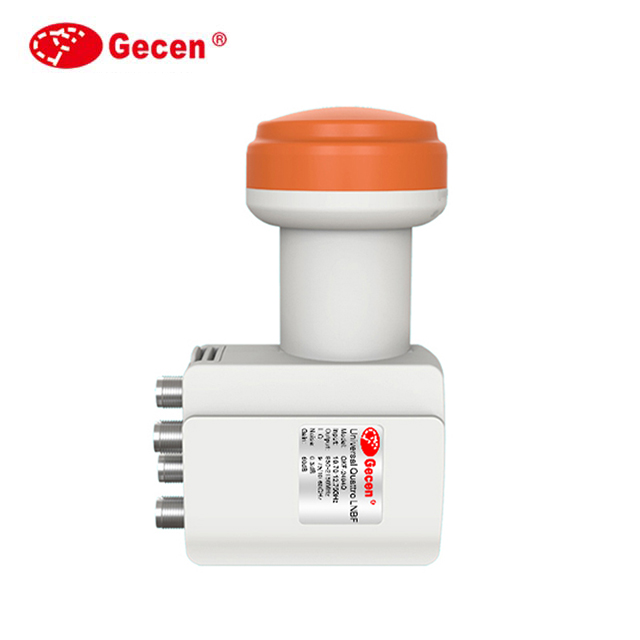

Universal Quad Ku-Band LNB
This quad LNB is DVB-S2 (HD and UHD) compliant with low power consumption. It features UV-resistant weather protection housing.
Technical Specifications
Product Overview
High-Performance Universal Quad Ku-Band LNB
This Universal Quad Ku-Band LNB is designed for professional satellite signal reception, supporting both HD and UHD standards. It features four independent outputs, allowing seamless connection to multiple satellite receivers simultaneously. Engineered for durability, the unit includes an integrated UV-resistant weather protection housing and cap for reliable performance in extreme heat or cold.
Technical Specifications
Local Oscillator Frequency
- Low Band: 9.75 GHz
- High Band: 10.60 GHz
- Low Band Input Frequency
- 10.70 - 11.70 GHz
- High Band Input Frequency
- 11.70 - 12.75 GHz
- Low Band Output Frequency
- 950 - 1950 MHz
- High Band Output Frequency
- 1100 - 2150 MHz
Performance Metrics
Core Performance Metrics
20 dB
Cross-Pol Isolation
40 dB
Image Rejection
0 dBm
P1dB Output
- Gain Flatness
- ±0.5dB/27MHz
- Output VSWR
- 2.0:1
Features
- Key Attributes
- DVB-S2 CompliantHD/UHD ReadyLow Noise FigureLow Power ConsumptionHigh Frequency StabilityUV-Resistant Housing
