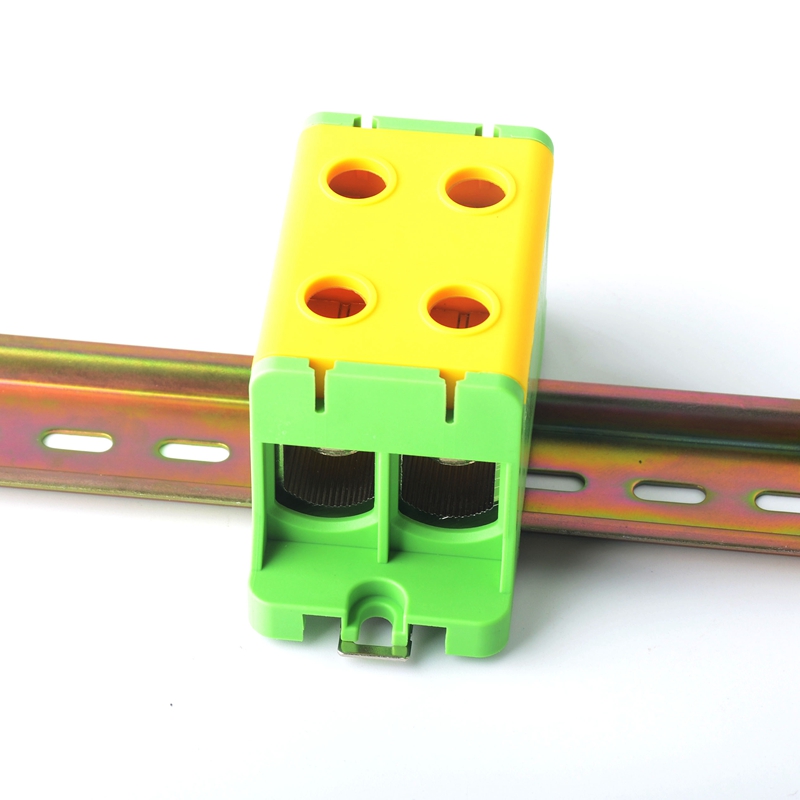

Unipolar High Current Distribution Terminal Block
This unipolar distribution terminal block is designed for high-current applications. It provides secure connections for conductors in electrical power distribution.
Technical Specifications
Product Overview
Unipolar High-Current Distribution Terminal Block
Designed for robust electrical power distribution within industrial cabinets, these unipolar terminal blocks offer secure and reliable connections for copper and aluminum conductors. Built from durable Nylon(PA) materials, they feature efficient DIN rail mounting and hexagonal screw terminals for high-integrity installations. These components are engineered to withstand demanding environments with a wide operating temperature range and high voltage capacity.
Technical Specifications
- Mounting Standard
- C45 DIN Rail (TH35-7.5)
- Working Temperature
- -40°C to +105°C
- Voltage Rating
- 800 V
- Housing Material
- Nylon (PA)
Performance Data
Featured Ratings by Model
| Model | Wire Range (mm²) | Current (Cu/Al) |
|---|---|---|

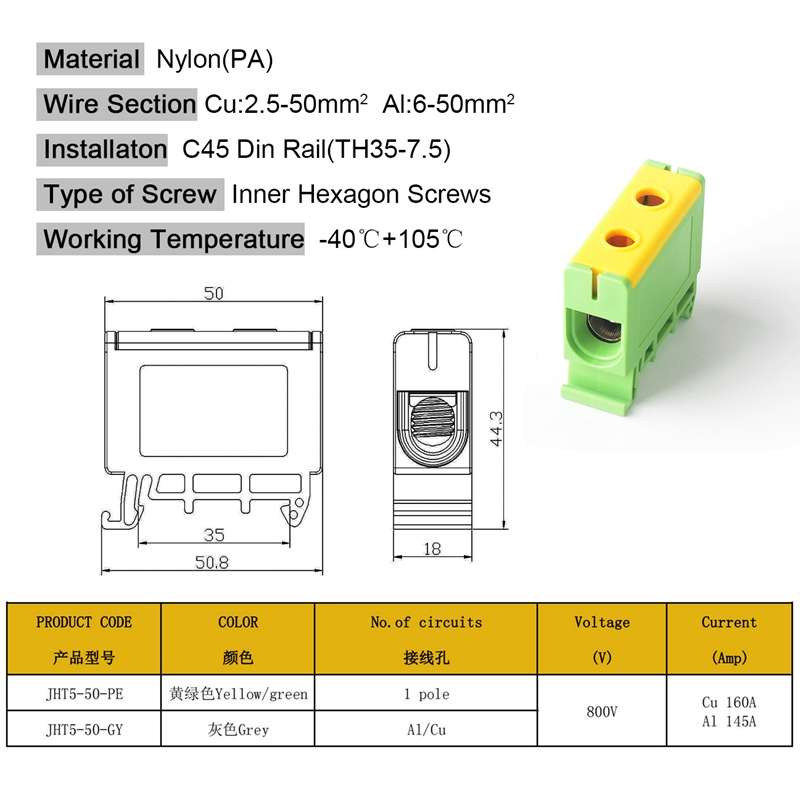

| JHT5-50 | 2.5-50 | 160A / 145A |

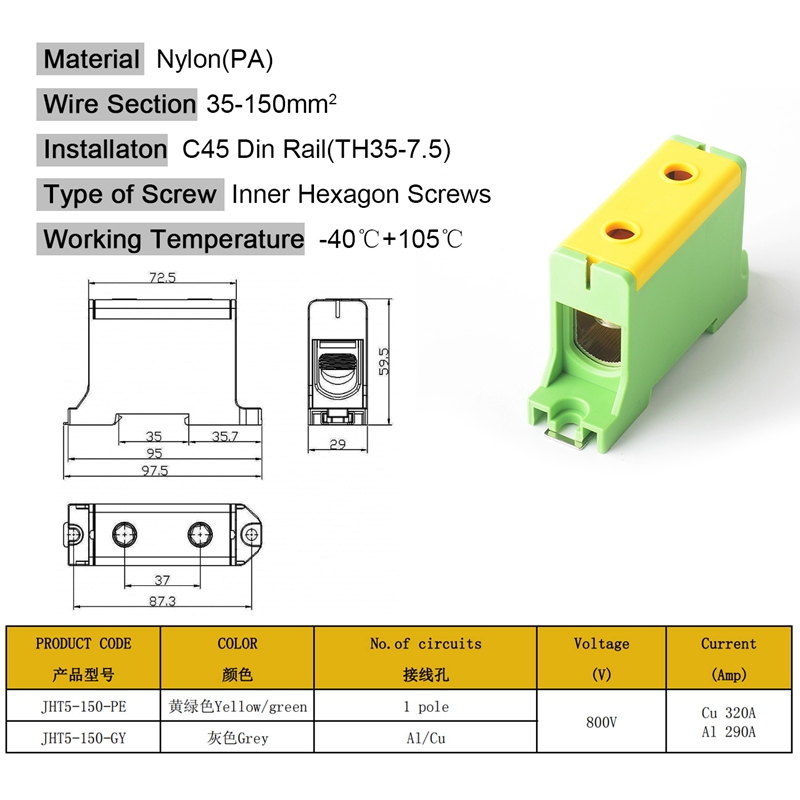

| JHT5-150 | 35-150 | 320A / 290A |

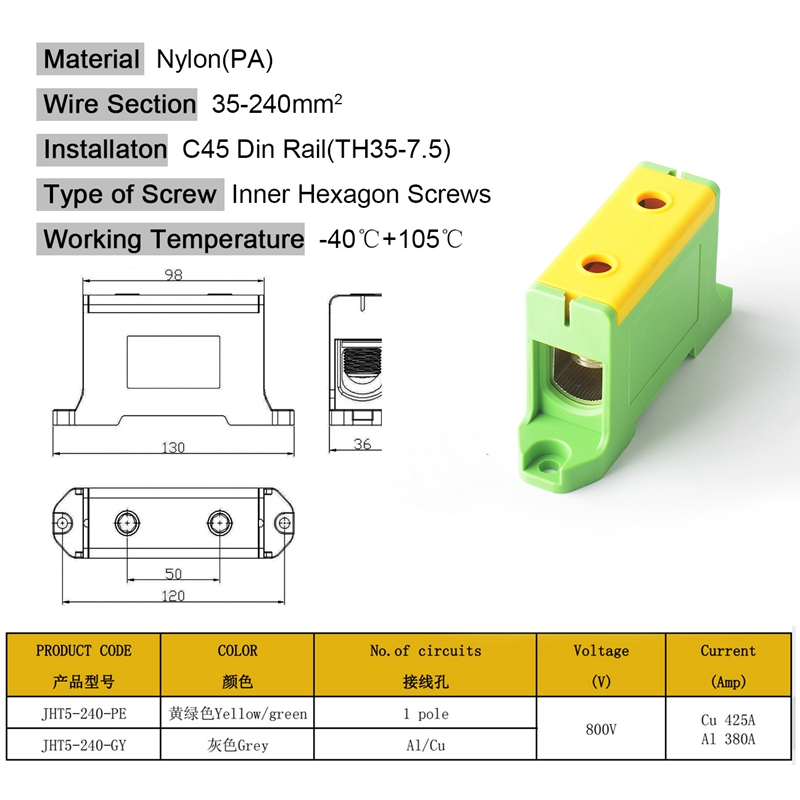

| JHT5-240 | 35-240 | 425A / 380A |
Compliance and Features
- Key Features
- Inner Hexagon Screws1-Pole ConfigurationDIN Rail CompatibleCopper and Aluminum Compatible
