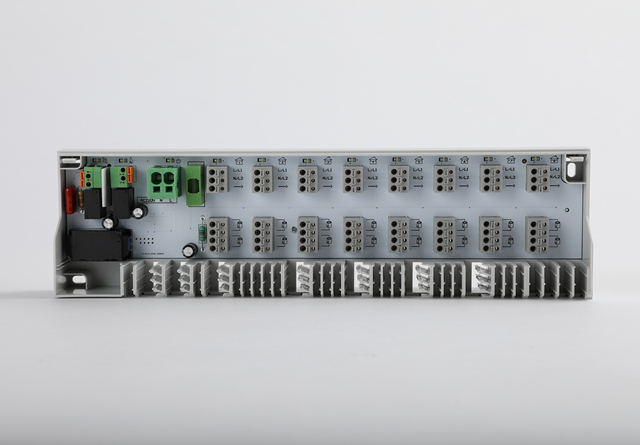

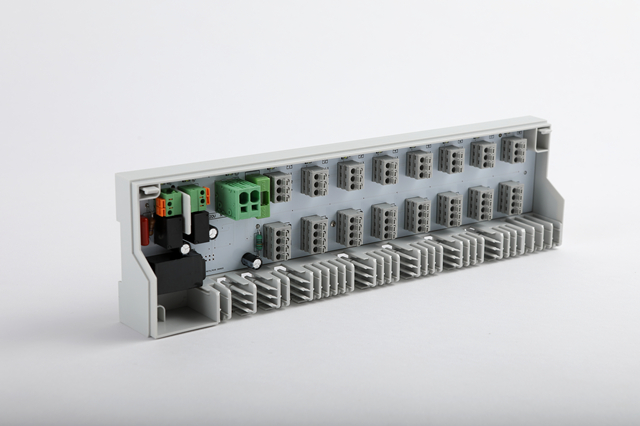

Underfloor Heating System Base Station
Base station is the central connection unit of a room-by-room temperature control for the surface temperature adjustment of heating systems. It can be wired to all system components such as thermostats and actuators with minimum expense.
Technical Specifications
Product Overview
Central Connection Unit
This base station acts as the central connection hub for room-by-room temperature control in surface heating systems. Designed for 230V installations, it enables efficient wiring for thermostats and actuators to manage up to 8 distinct zones. It simplifies installation while providing advanced features like pump and boiler control with integrated safety delays.
Technical Specifications
- Operating Voltage
- 230V
- Number of Zones
- 8
- Max Actuators
- 16
- Control Direction
- NC (Normally Closed)
- Casing Material
- Anti-flammable PCABS

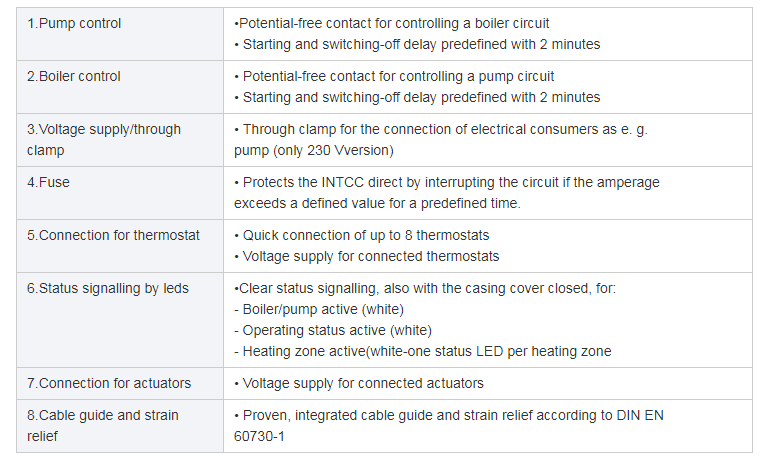

Key Features
Protection & Reliability
- 120s delayed start for pump/boiler
- Fuse protection
- Short-circuit prevention
- Overload protection
- Standard-complying strain relief (DIN EN 60730-1)

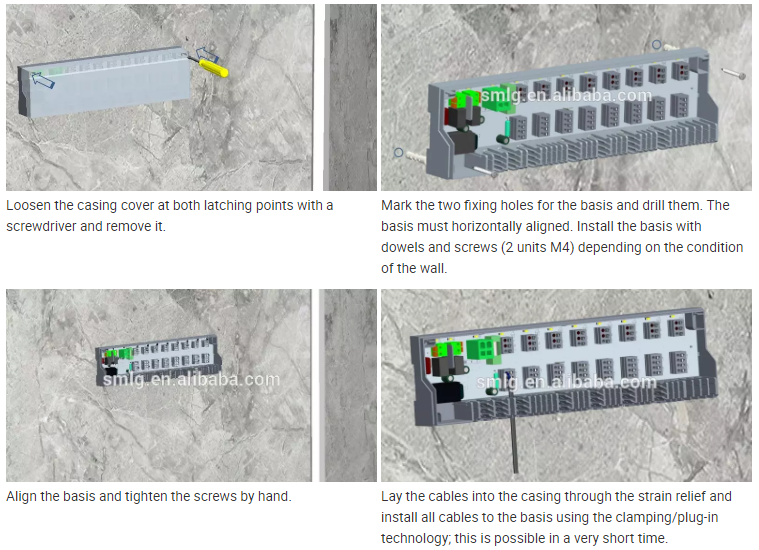

Installation & Usability
Signaling

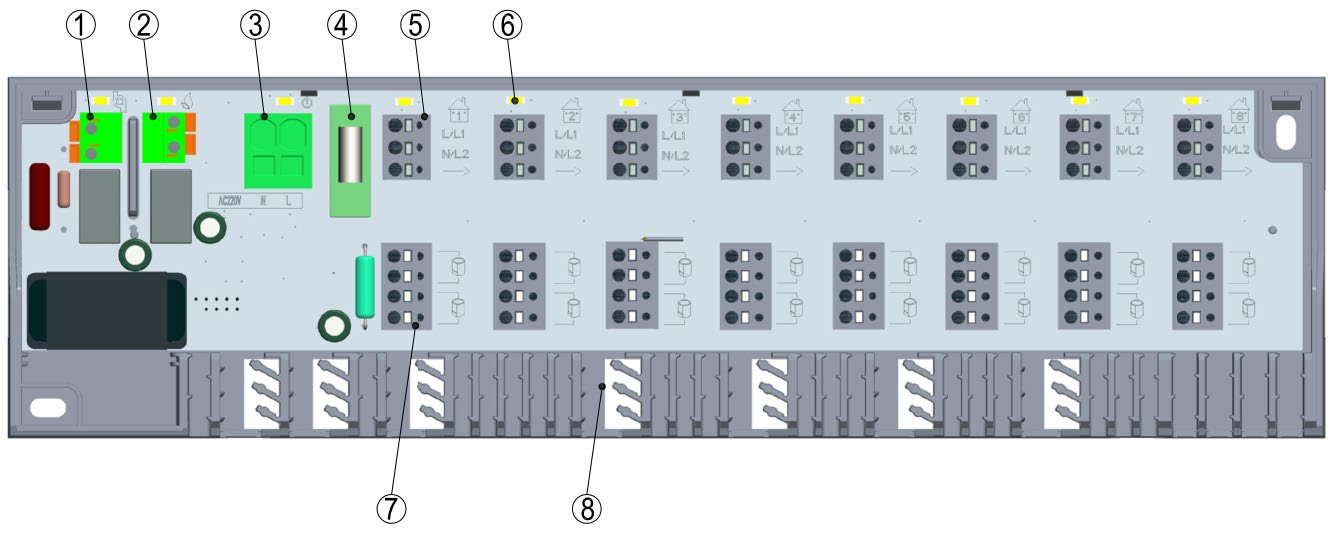

Boiler/Pump Status LEDOperating Status LEDZone Active LED
- Connection Type
- Screw-less terminal connection
Service & Warranty
Warranty
2 Years
Warranty Period
