Technical Specifications
Overview
High-Efficiency Semi-Automatic Blowing

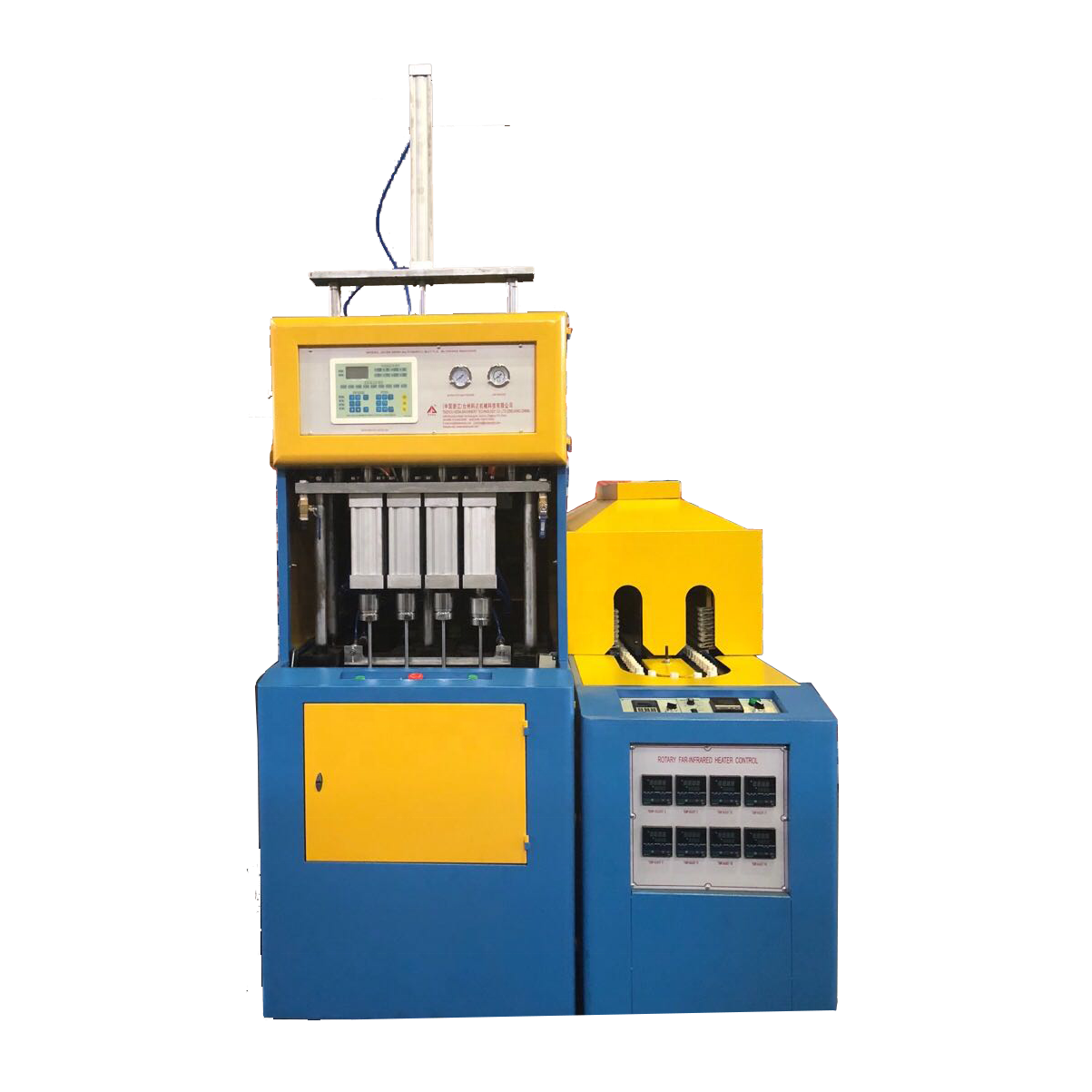

The JD-S4 is a two-step semi-automatic bottle blowing machine engineered for the precise production of PET bottles. It utilizes a rotary far-infrared heater control system to ensure consistent temperature regulation during the preheating phase. Designed for versatility, this machine supports various neck sizes and bottle volumes, making it an ideal solution for cosmetic, sanitizer, and hand-washing packaging lines.
Performance Metrics
Production Capacity
2,000 B/H
Max Output
- Maximum Bottle Volume
- 2000 ml
Technical Specifications
- Supported Neck Sizes
- 20mm24mm28mm
- Cavity Configuration
- 4
- Operation Mode
- Semi-Automatic
- Blowing Process
- Two-Step
- Heating Technology
- Rotary Far-Infrared
Compliance & Certification
Certifications
CE
