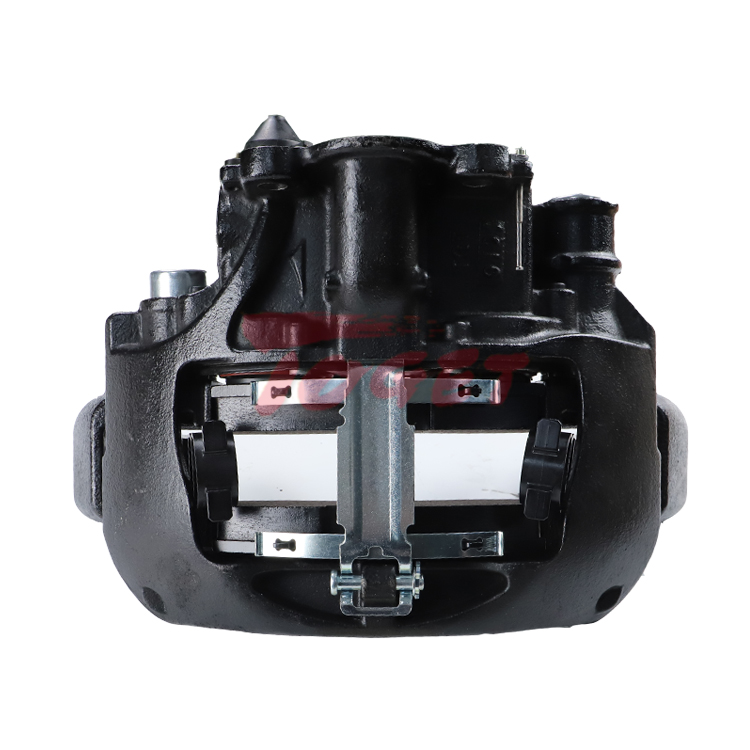

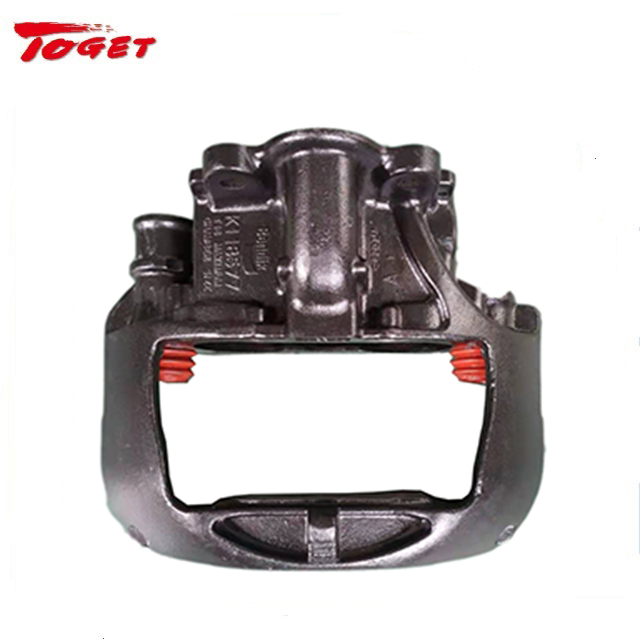

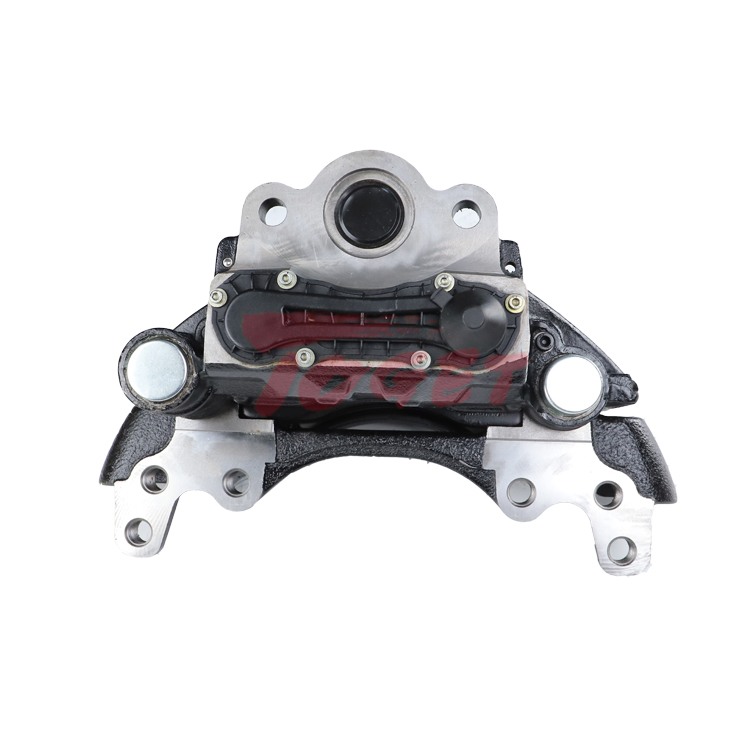

Truck Air Disc Brake Caliper K149714
This is a 22.5" air disc brake caliper designed for heavy-duty trucks, buses, and trailers. It features core components produced in-house with automatic assembly and 100% online testing.
Technical Specifications
Product Overview
High-Performance 22.5" Air Disc Brake Caliper
This totally new 22.5" air disc brake caliper is designed for heavy-duty trucks, buses, and trailers, providing reliable and efficient stopping power. Manufactured with core components produced in-house and assembled on automatic lines, every unit undergoes 100% online testing to ensure maximum safety. With IATF 16949 certification and over 15 years of engineering expertise behind its development, it offers a dependable solution for demanding commercial vehicle braking systems.
Technical Specifications
- OEM Part Number
- K149714
- Brake Size
- 22.5 inch
- Compatible Systems
- KNRRWABCMRTRHALX
Applications
Vehicle Applications
- Heavy Duty Trucks
- Commercial Buses
- Trailers
Quality & Manufacturing
Quality Certifications
IATF 16949ISO 9001
Testing Procedures
- 100% Online Assembly Testing
- Brake Adjuster Torque Test
- Brake Performance Analysis
- Brake Life Cycle Test
- Supply Chain Monitoring

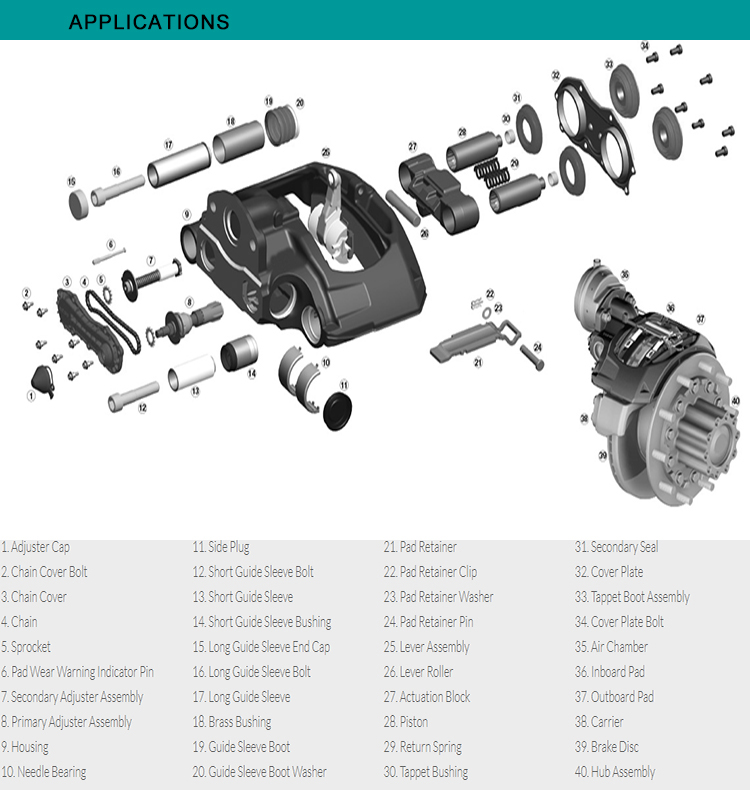

Components
Key Internal Components
| Component Category | Key Parts Included |
|---|---|
| Adjustment System | Primary & Secondary Adjuster Assemblies, Sprocket, Chain |
| Actuation | Lever Assembly, Lever Roller, Actuation Block, Piston |
| Sealing & Protection | Guide Sleeve Boots, Secondary Seal, Tappet Boot Assembly |
| Mounting | Carrier, Long & Short Guide Sleeves, Brass Bushings |
Logistics & Packaging
Packaging Details
- Neutral Packaging
- Plastic Bag Protection
- Individual Box
- Heavy Duty Carton
- Palletized Shipping
- Customized Packaging Available
