Transformer Core and Coil Manufacturing Machine
This automated machine is engineered for manufacturing transformer cores and coils. It integrates material feeding, forming, welding, and pressing for efficient production.
Technical Specifications
Product Overview
Industrial Transformer Manufacturing Solution
This high-performance manufacturing machine is engineered for the precise production of oil-filled distribution transformer components. It integrates essential processes such as material feeding, forming, welding, and pressing into a single, robust system. Designed for industrial efficiency, this equipment ensures reliable production of transformer cores and coils, supporting long-term operational stability.
Technical Capabilities
Production Focus
1
Oil-filled Transformer Components
1
Precision Core/Coil Assembly
- Core Processes
- Material FeedingFormingWeldingPressingWindingAssembly
Construction & Design
Design Specifications
- Heavy-duty industrial frame construction
- Precision adjustment mechanisms

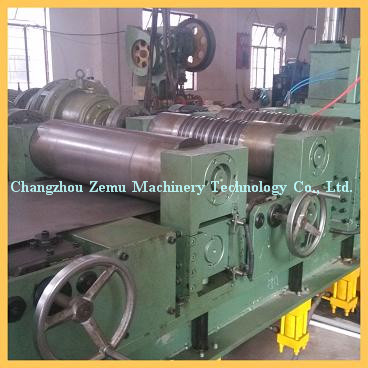

- Integrated control wheels and gauges
- Corrugated plate handling capability

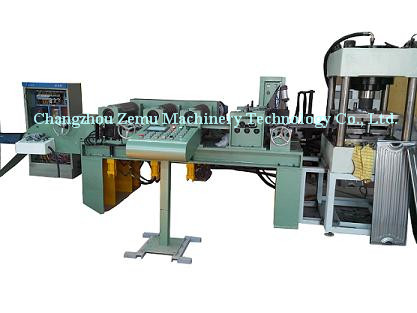

- Automated operation and monitoring control panel
Component Compatibility
| Component Type | Function |
|---|---|

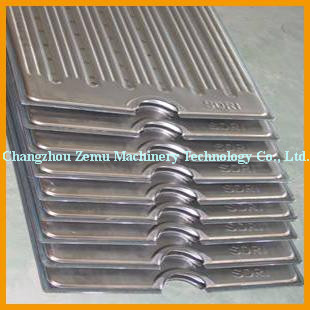

| Stamped Metal Plates | Core/Cooling System |
| Corrugated Surfaces | Heat Dissipation |
