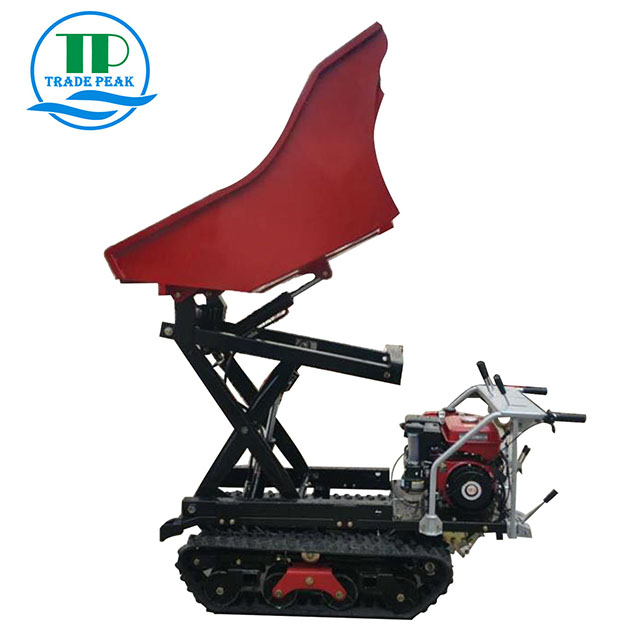

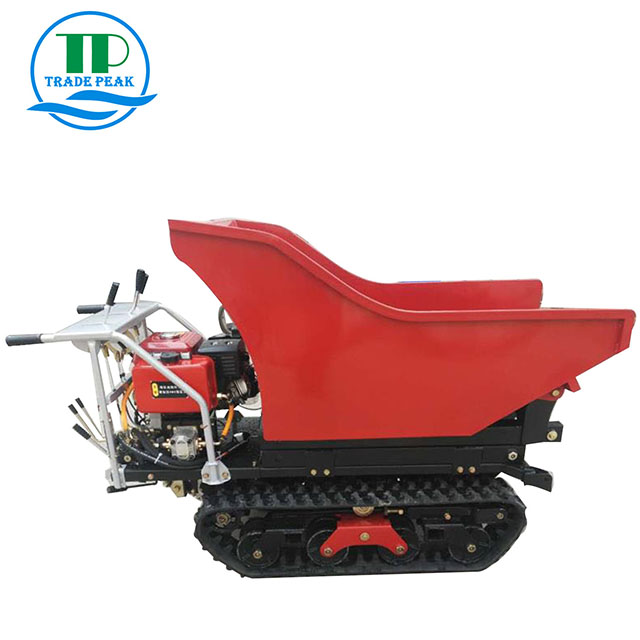

Tracked Mini Dumper with Adjustable Hopper
This tracked mini dumper is designed with a solid steel frame and a manual tilt function. It features a gear drive and rubber track for traversing difficult terrain.
Technical Specifications
Overview
Rugged Material Transport
The Tracked Mini Dumper with Adjustable Hopper is engineered for efficient material transport across difficult terrain. Featuring a solid steel design and a maintenance-free gear drive, it provides reliable durability for construction, landscaping, and agricultural applications. The compact tracked system ensures superior traction, while the adjustable hopper and manual tilt function streamline loading and unloading tasks.
Performance
- Load Capacity
- 600 kg
- Engine Power
- 10 HP
- Operating Speed
- 1.2 - 6 km/h
- Transmission
- 6F + 2R
Technical Specifications
- Fuel Type
- DieselGasoline
- Starter Method
- Electric starter
- Track Width
- 180 mm
- Machine Weight
- 470 kg
Dimensions
- Hopper Dimensions (L x W x D)
- 1400 x 750 x 700 mm
- Packing Size (L x W x D)
- 2000 x 770 x 1450 mm
Features
Key Features
Adjustable HopperSolid Steel DesignManual TiltMaintenance-free Gear DriveRubber TracksEasy Operation
