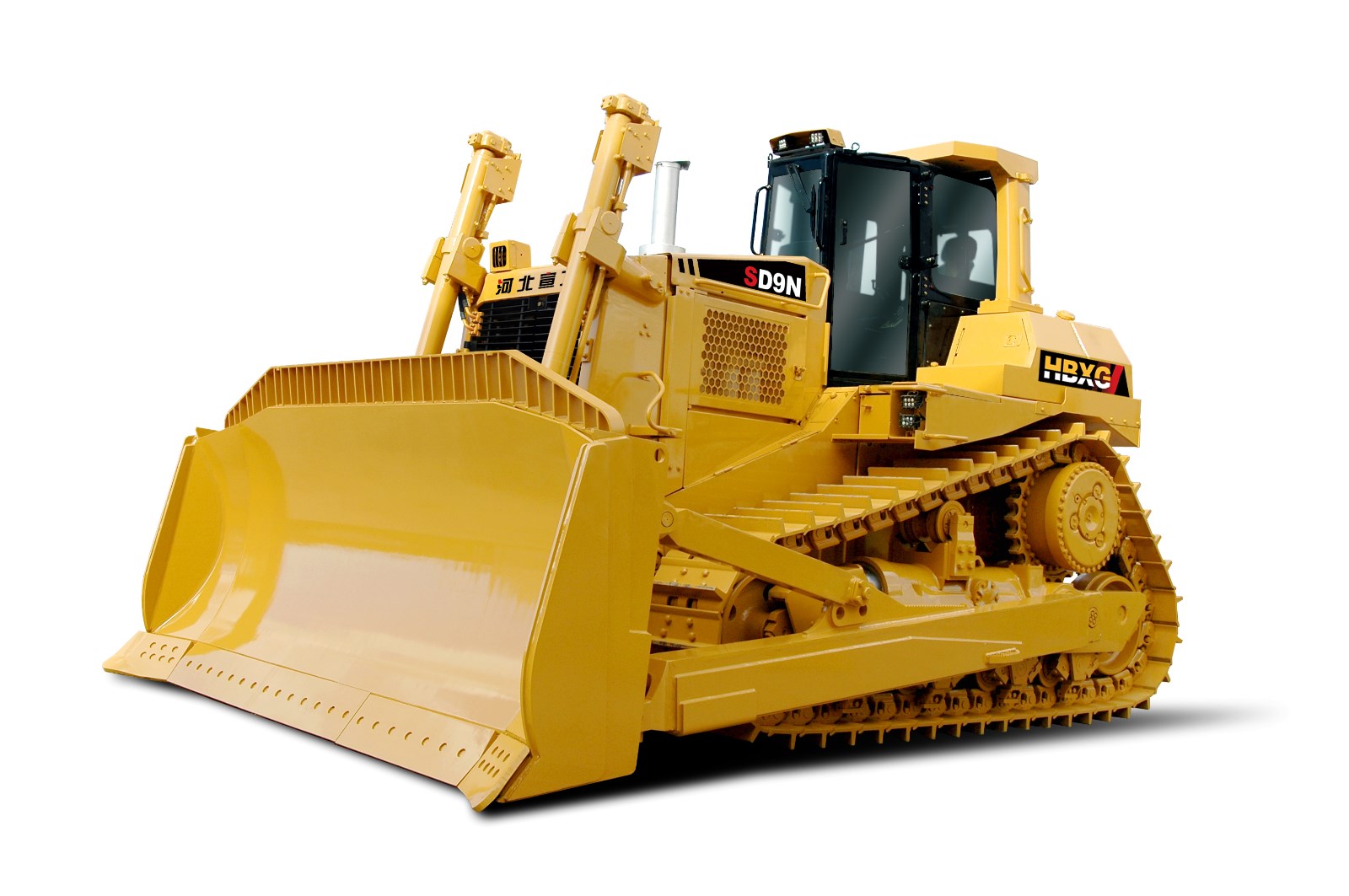

Track-Type Bulldozer with Elevated Sprocket
This bulldozer features an elevated sprocket track design, power shift, and hydraulic control. Its modular design enhances the lifespan of the power system and simplifies maintenance.
Technical Specifications
Overview
High-Performance Elevated Sprocket Bulldozer
This track-type bulldozer is engineered for heavy-duty earthmoving in demanding environments like mining, road construction, and oil fields. Featuring an elevated sprocket design and a modular undercarriage, it offers superior power system durability and simplified maintenance. Equipped with advanced operator controls and an internationally compliant ROPS, it ensures high efficiency, precise maneuverability, and operator safety.
Performance
Key Performance Metrics
430 HP
Flywheel Power
13.5 m³
Dozing Capacity
1,800 rpm
Rated Speed
Operating Weight
| Configuration | Weight |
|---|---|
| Standard | 44,588 |
| With Ripper | 48,888 |
- Compatible Engine Options
- Cummins KTA19-C525Cummins QSX15
Dimensions
Overall Dimensions
- Standard (LxWxH): 6592 x 4314 x 3970 mm
- With Ripper (LxWxH): 8478 x 4314 x 3970 mm
- Blade Width: 4314 mm
- Max Digging Depth: 614 mm
Undercarriage
Undercarriage Specifications
- Type: Triangle shape track with elevated elastic suspension
- Track Gauge: 2250 mm
- Track Rollers: 8 per side
- Shoe Width: 610 mm
- Pitch: 240 mm
Transmission
Gearbox Performance (Forward/Backward)
| Gear | Forward (km/h) | Backward (km/h) |
|---|---|---|
| 1st | 0-3.9 | 0-4.8 |
| 2nd | 0-6.7 | 0-8.5 |
| 3rd | 0-12.2 | 0-15.1 |
