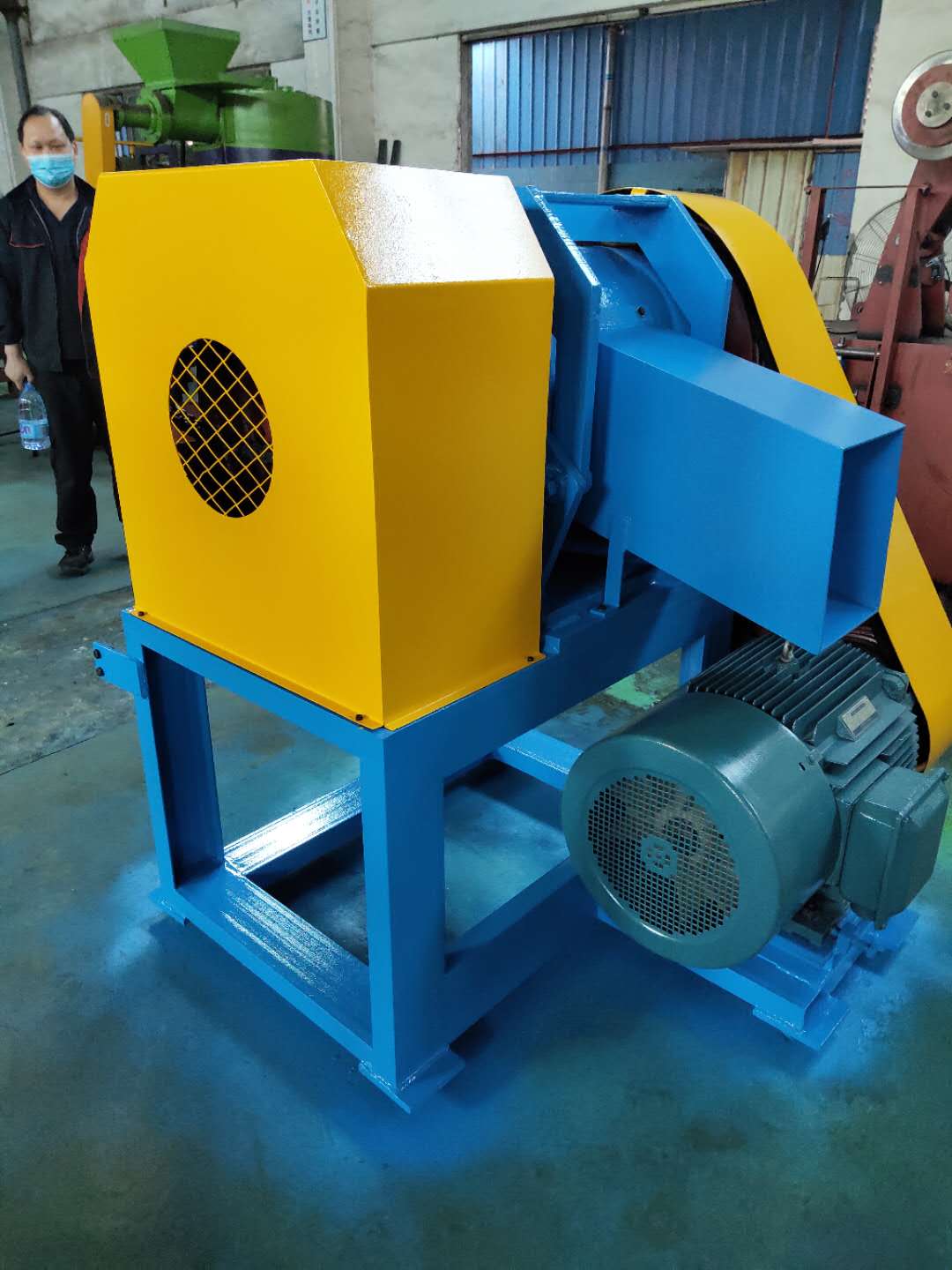

Tire Recycling Rubber Block Cutter
This industrial machine is designed for cutting scrap tires into rubber blocks or chips. It features a robust construction and a powerful electric motor for efficient operation in rubber recycling and processing.
Technical Specifications
Product Overview
Industrial Rubber Block Cutter
The Tire Recycling Rubber Block Cutter is an industrial-grade machine engineered to process tire strips into uniform 50mm x 50mm rubber blocks. Featuring robust construction and a powerful 22-33kW motor, it provides a high-efficiency solution for rubber recycling facilities. The integrated cemented carbide blades offer exceptional hardness and long-term durability, ensuring consistent performance in demanding industrial applications.
Technical Performance
Processing Capacity
2,500 Kg/h
Minimum Throughput
3,000 Kg/h
Maximum Throughput
Operational Specs
| Metric | Value |
|---|---|
| Motor Power | 22-33 kW |
| Main Shaft Speed | 420 r/Min |
| Output Block Size | 50x50 mm |
Physical Specifications
- Physical Footprint
- 1120 x 750 x 1300 mm
- Equipment Weight
- 1200 kg
Features
Availability
Customizable OptionsSafe and Reliable
- Blade Technology
- Cemented CarbideHRC 78-84 HardnessResharpenable
