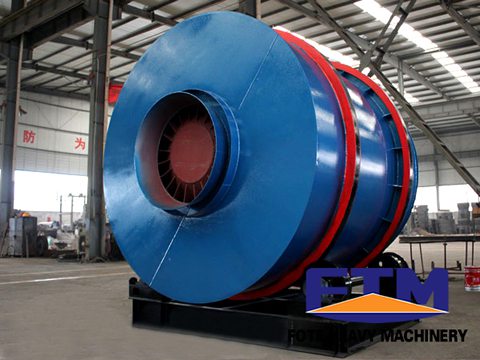

Three-Drum Industrial Dryer

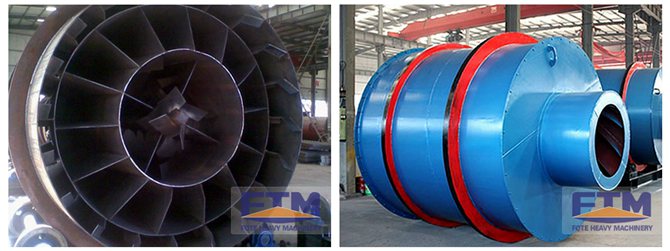

The three-drum dryer is a contact internal heating conduct dewatering unit. It is mainly composed of inner cylinder, outer cylinder, roller, tire support device, gear, discharge port, outlet, and sealing devices.
Technical Specifications
Product Overview
Industrial Three-Drum Drying Solution
The three-drum industrial dryer utilizes a sophisticated contact internal heating system designed for high-efficiency dewatering. By employing three concentric cylinders, this unit maximizes heat exchange and provides a compact footprint, occupying only half the space of a single-drum dryer. Its robust design ensures reliable operation with low energy consumption and simple automation, making it ideal for processing minerals, aggregates, and granular materials.
Key Features
- Advantages
- High Heat EfficiencyCompact DesignLow Energy ConsumptionSimple AutomationUniform Drying
Technical Construction
Core Components
- Inner cylinder
- Outer cylinder
- Roller assembly
- Tire support device
- Gear system
- Sealing and discharge ports
Process Summary
| Stage | Process Description |
|---|---|
| Inner Drum | Current flow drying with spiral advancing material exchange. |
| Middle Drum | Counter-current drying with two-steps forward, one-step back movement. |
| External Layer | Rectangle multi-loop drying and final material cooling. |
Performance Metrics
Efficiency Stats
50 %
Space Efficiency
