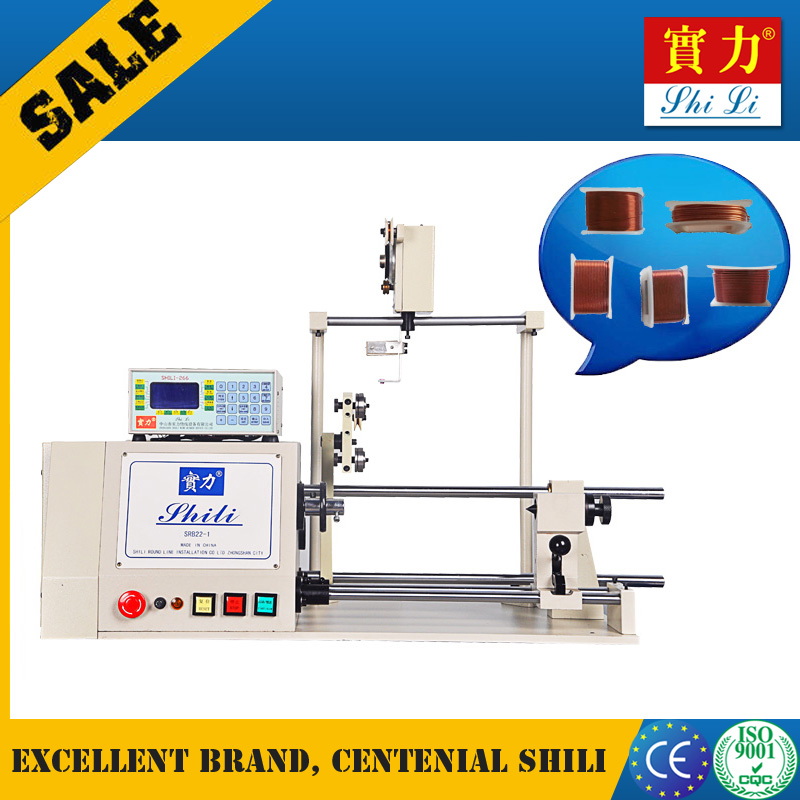

Thick Wire Transformer Winding Machine
This machine is designed for winding thick wire transformers, featuring a single spindle winding side and a strong support tail stock. It utilizes a 32-bit controller chip for faster speed and higher reliability, with data retention after power failure.
Technical Specifications
Product Overview
Industrial Thick Wire Winding Solution
This thick wire winding machine features a robust single-spindle design engineered for high-torque performance. It utilizes a 32-bit controller chip to ensure rapid processing speeds and exceptional operational reliability for demanding transformer winding tasks. The machine integrates premium imported components to provide stable, consistent, and durable winding results for large-scale coil production.
Technical Specifications
Key Imported Components
- Japan NSK/NTN Bearings
- Japan BANDO/GATES Belts
- Taiwan TBI Ball Screw
- Taiwan Transducers
- Controller System
- 32-bit controller chip
- Power Failure Data Retention
- Yes
- Interface Language
- ChineseEnglish
Compliance & Standards
Certifications
CEISO 9001CQC
Design Features
Core Design Benefits
| Feature | Benefit |
|---|---|
| Thick Wire Tension | Easily handles thick wire products |
| Heavy Frame | Stable and reliable winding process |
| Tail Stock | Customizable rocker or screw type |
