Thermostatic Radiator Valve with Liquid Sensor
This thermostatic radiator valve features liquid sensor temperature control. The head is constructed from plastic.
Technical Specifications
Overview
High-Precision Temperature Control
This thermostatic radiator valve features a high-quality liquid sensor designed for precise temperature regulation in individual radiators. Manufactured and calibrated in-house according to EN-215 standards, it ensures reliable performance for both residential and commercial HVAC&R systems. With an A-rating energy grade, it provides an efficient solution for managing energy consumption while maintaining optimal indoor comfort.
Key Performance Metrics
Performance Highlights
14 Years
Years of Sensor Research
215 EN
Standard Compliance
Technical Specifications
- Connection Size
- 1/2" (R1/2")
- Pipe Diameter
- 15 mm
- Sensor Type
- Liquid Sensor
- Available Models

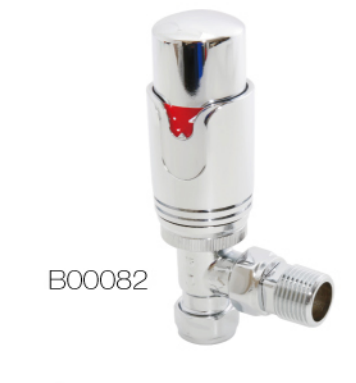

- B00082B0008300084B00085
Quality & Compliance
Energy Efficiency Class
A-rating
- Certifications
- EN-215
Manufacturing Details
Manufacturing Standards
- Full-automatic production line
- In-house liquid sensor manufacturing
- In-house head and body calibration
- 14+ years of specialized sensor research

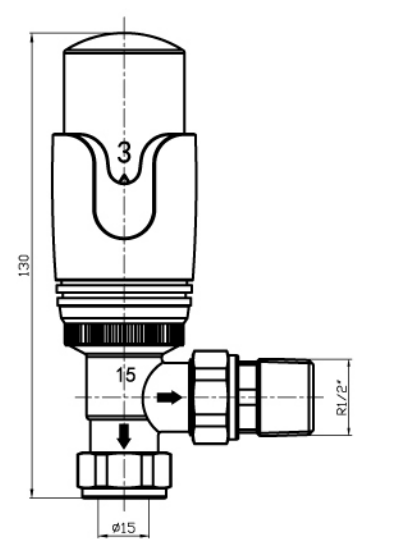

Dimensions
Product Dimensions
| Parameter | Value |
|---|---|
| Total Length | 130 mm |
| Connection | R1/2" |
| Diameter | ø15 |
