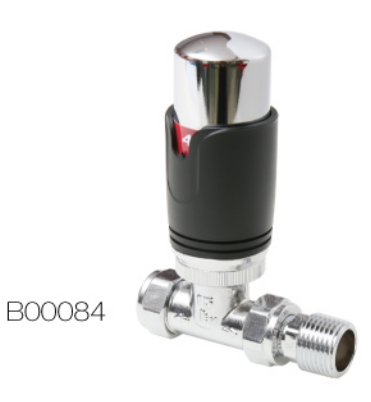

Thermostatic Radiator Valve with Liquid Sensor
Thermostatic radiator valve uses a liquid sensor to control temperature. It features a plastic head and regulates hot water flow to the radiator.
Technical Specifications
Overview
High-Efficiency Temperature Control
This thermostatic radiator valve (TRV) is a self-regulating solution designed for hot water heating systems, enabling precise room temperature control by modulating water flow. Featuring a high-performance liquid sensor, it maintains a consistent and comfortable environment while preventing overheating. The unit is engineered for energy efficiency, holding a certified A-rating energy grade to help reduce heating costs.
Key Performance Metrics
Performance Highlights
14 yrs
Years of R&D
1 A
Energy Grade
Technical Specifications
- Total Height
- 130 mm
- Bottom Connection
- 15 mm
- Side Connection
- R1/2"
- Bottom Diameter
- ø15
Design & Construction
Core Components
- Liquid sensor
- Valve head
- Valve body
- Finish
- Chrome and black
Compliance & Quality
- Standards & Certifications
- EN-215A-rating Energy Grade
- Quality Control
- In-house manufactured and calibrated components with full-automatic production
Functionality
Key Features
- Self-regulating flow control
- Flow direction indicator
- Adjustable temperature settings
- Energy saving design
