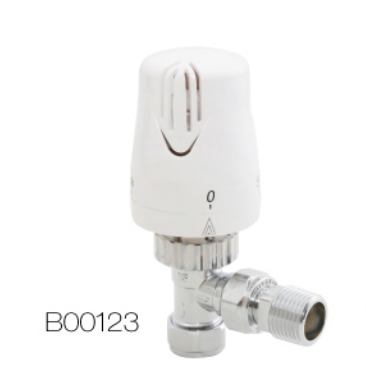

Thermostatic Radiator Valve with Chrome Valve Body
This thermostatic radiator valve regulates room temperature by controlling hot water flow to the radiator. It features a plastic head and is designed for standard radiator installations.
Technical Specifications
Overview
High-Efficiency Temperature Control
This thermostatic radiator valve (TRV) provides precise self-regulating temperature control for hot water heating systems. Featuring a durable chrome-plated brass body and a high-quality liquid sensor, it is designed for reliable performance and energy efficiency. The valve is certified with an A-rating energy grade and manufactured according to EN-215 standards, ensuring optimal climate comfort and reduced energy consumption.
Performance & Standards
Key Performance Metrics
215 EN
Standard Compliance
14 Years
R&D Experience
Energy Efficiency
A-RatingEnergy Grade
Technical Specifications
Physical Dimensions
| Dimension | Measurement |
|---|---|
| Total Height | 123mm |
| Bottom Diameter | Ø15 |
| Horizontal Length | 56 - 61.5mm |
| Valve Connection | R1/2 |
- Installation Orientation
- Vertical installation design
Design & Materials
Construction Materials
- Valve Body: Brass with Chrome Plated Finish
- Thermostatic Head: Durable Plastic
- Sensor Type: Liquid Sensor
- In-House Components
- Liquid SensorHeadBody
Operation
- Control Settings
- 0-5 scale for adjustable temperature control
- Frost Protection
- Yes
